Ubiquiti Networks
Regular price
£260.46 GBP
Regular price
Sale price
£260.46 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:USW-PRO-MAX-16
30 in stock

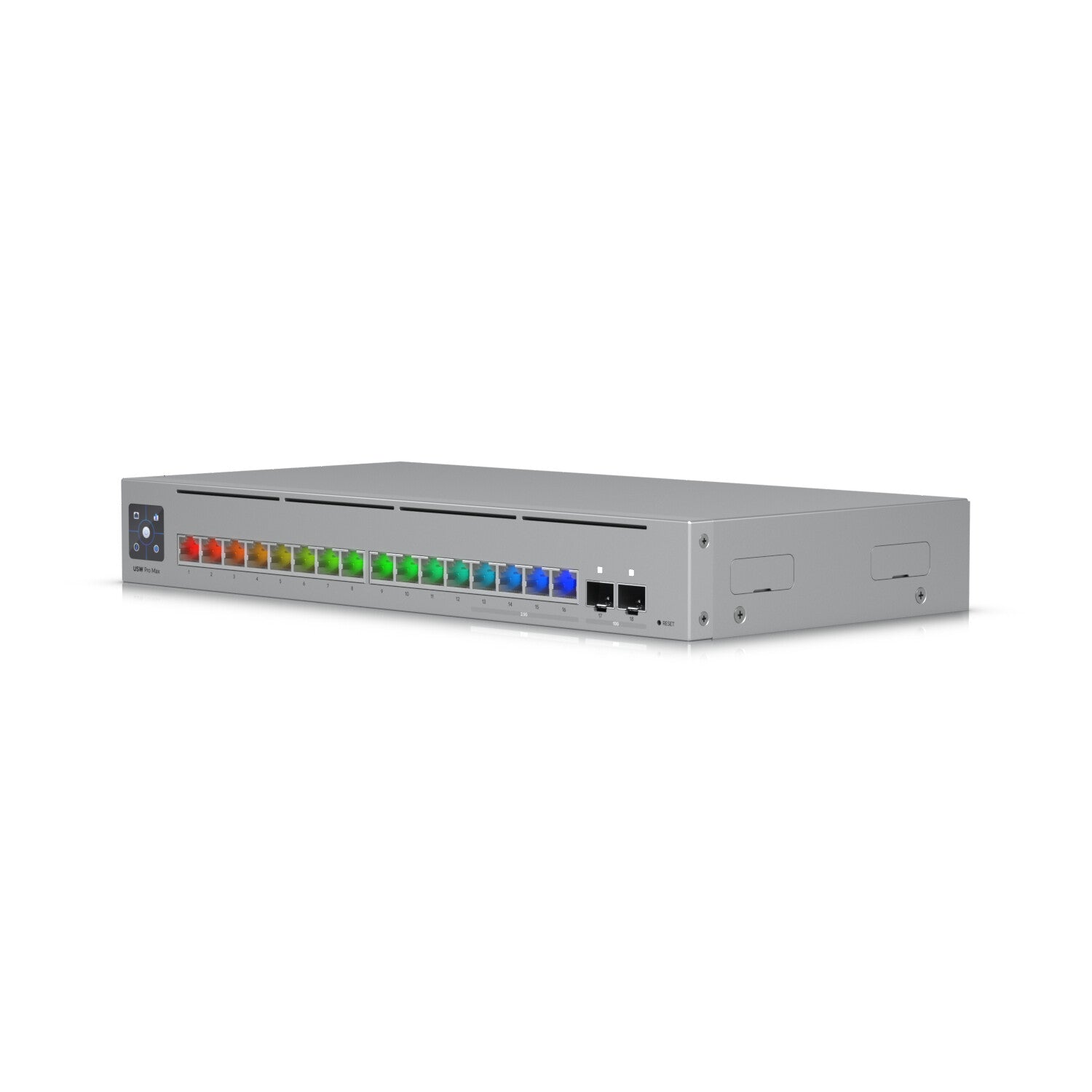

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (4) 2.5 GbE RJ45 ports
- (12) GbE RJ45 ports
- (2) 10G SFP+ ports
- Versatile desktop, wall, and rack** mounting
- Silent, fanless cooling system
50W, 4 x 2.5 GbE RJ45, 12 x GbE RJ45, 2 x 10G SFP+, Layer 3, SGCC steel
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
| Management features |
|---|
| Switch layer |
L3 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity |
12 |
| 2.5G Ethernet (copper) ports quantity |
4 |
| SFP+ module slots quantity |
2 |
| Power connector |
AC/DC |
| Network |
|---|
| Networking standards |
IEEE 802.1x |
| 10G support |
Yes |
| Port mirroring |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
Voice VLAN |
| Data transmission |
|---|
| Switching capacity |
84 Gbit/s |
| Throughput |
42 Gbit/s |
| Forwarding rate |
62.496 Mpps |
| Static route |
Yes |
| Jumbo frames support |
Yes |
| Security |
|---|
| DHCP features |
DHCP relay, DHCP snooping |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Form factor |
1U |
| Product colour |
Grey |
| Housing material |
SGCC |
| Reset button |
Yes |
| LED indicators |
Link, Network, Speed, Status |
| Display type |
LCM |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Power |
|---|
| Power source |
AC/DC |
| Power supply included |
Yes |
| Redundant power supply (RPS) support |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
50 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
325.1 mm |
| Depth |
160 mm |
| Height |
43.7 mm |
| Weight |
1.95 kg |
| Packaging data |
|---|
| Cables included |
Power |
| Rack mount kit |
Yes |
