Ubiquiti Networks

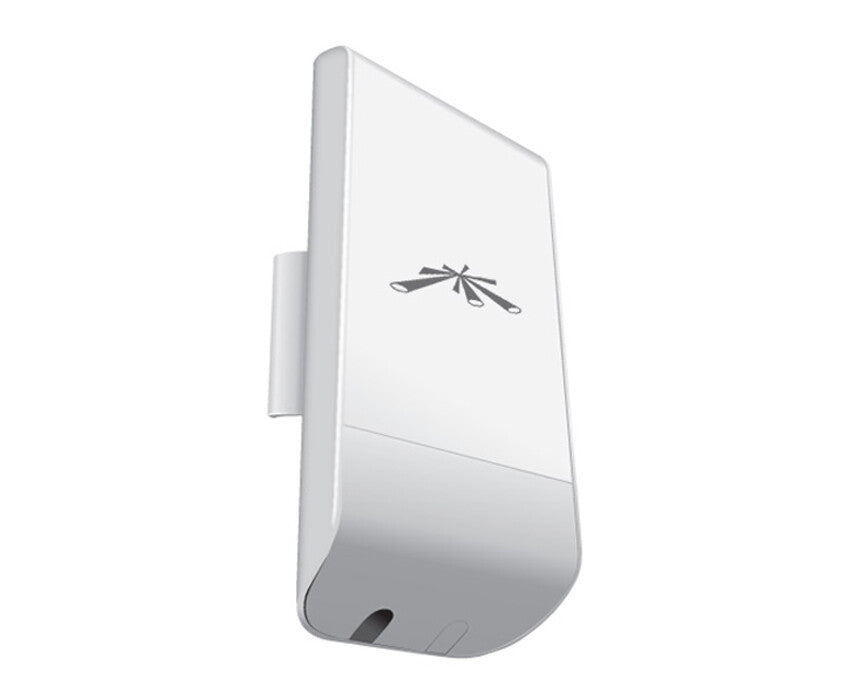

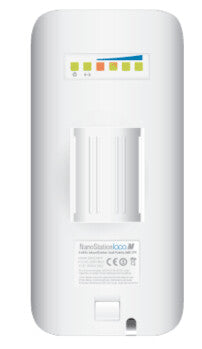

Ubiquiti NanoStation M2 150 Mbit/s White Power over Ethernet (PoE)
Ubiquiti NanoStation M2 150 Mbit/s White Power over Ethernet (PoE)
SKU:LOCOM2
26 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 2.4 GHz
- Maximum data transfer rate: 150 Mbit/s
- IEEE 802.3, IEEE 802.3u
- Power over Ethernet (PoE)
Compact CPE Design
The NanoStationM features the CPE design that expanded the global Wireless ISP industry.
Plug and Play Installation
The NanoStation M requires no tools for assembly; only a single wrench is required for pole-mounting.
Versatile Application Use
The NanoStation M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX CPE.
Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Window/Wall Mounting Kit
Use the NanoStation Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 150 Mbit/s |
| Wi-Fi data rate (max) | 150 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.412-2.462 GHz |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Maximum outdoor range | 10000 m |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 24 V |
| Input current | 0.5 A |
| Power consumption (typical) | 5.5 W |
| Design | |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| LED indicators | Yes |
| Certification | RoHS |
| Internal | No |
| Antenna | |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros |
| Processor frequency | 400 MHz |
| Processor architecture | MIPS 24Kc |
| Internal memory | 32 MB |
| Flash memory | 8 MB |
| Weight & dimensions | |
|---|---|
| Width | 80 mm |
| Depth | 31 mm |
| Height | 163 mm |
| Weight | 180 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 75 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
