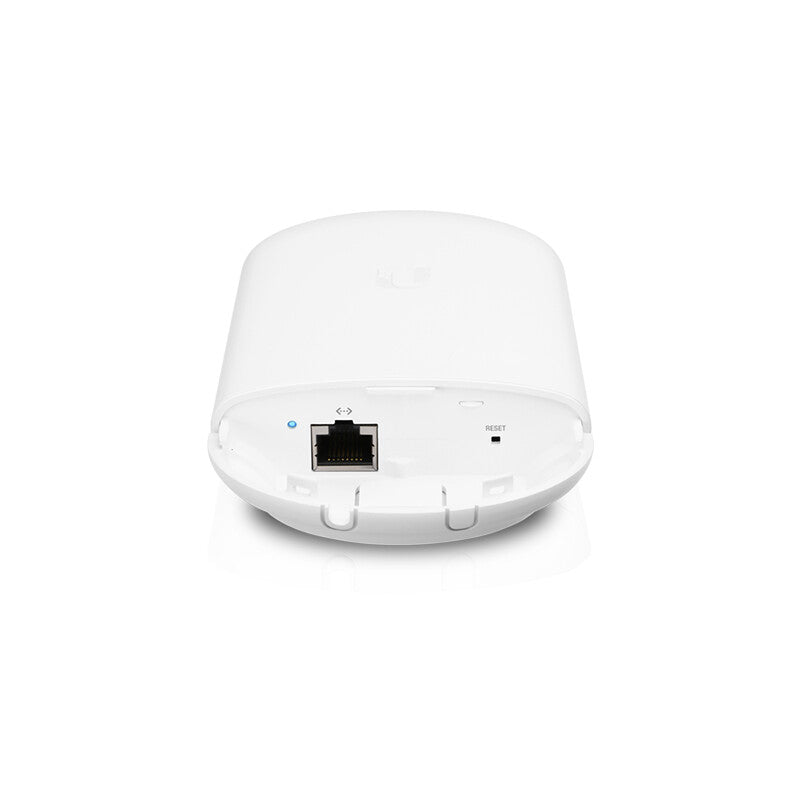

Ubiquiti NanoStation 5AC Loco 450 Mbit/s White Power over Ethernet (PoE)

Ubiquiti NanoStation 5AC Loco 450 Mbit/s White Power over Ethernet (PoE)

£254.57 GBP
£254.57 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LOCO5AC-5

17 in stock

  • New antenna
  • Improved design
  • Management WiFi Radio/UNMS mobile app
  • AirOS 8
NanoStation 5AC Loco, 5 GHz, 450+ Mbps, 10+ km, MIPS 74K, 64 MB, 10/100/1000 Mbps Ethernet Port, 24V, 0.3A Gigabit PoE Supply (Not Included), 7.05 x 3.05 x 2.33", 5pcs

Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).

Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Features
Maximum outdoor range 10000 m
Quality of Service (QoS) support Yes
Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
MIMO Yes
Frequency band 5 GHz
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 450 Mbit/s
5 GHz Yes
Security
Security algorithms WPA2
Management features
Web-based management Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 7 W
Input current 0.3 A
AC input voltage 24 V
Power over Ethernet (PoE) Yes
Design
Certification CE, FCC, IC
LED indicators Power
Reset button Yes
Housing material Plastic
Product colour White
Placement Pole
Antenna
Polarization Dual polarization
Antenna gain level (max) 13 dBi
Antenna features Integrated antenna
Antenna type Internal
Performance
Operating system installed AirOS
Internal memory 64 MB
Processor architecture MIPS 74Kc
Processor frequency 560 MHz
Processor model Qualcomm Atheros
Built-in processor Yes
Packaging content
Mounting kit Yes
Number of products included 5 pc(s)
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 95%
