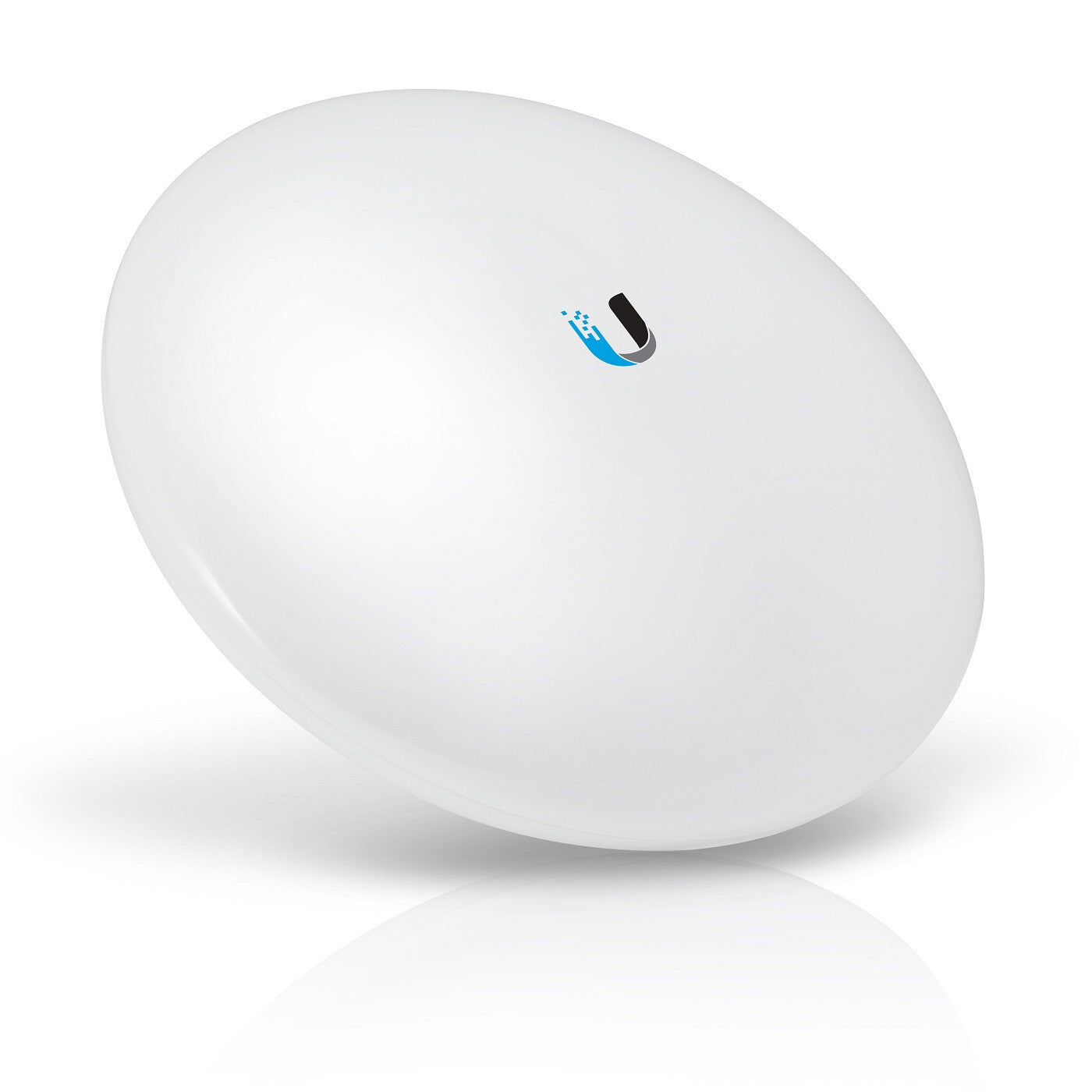

Ubiquiti NanoBeam 2AC White Power over Ethernet (PoE)
Ubiquiti NanoBeam 2AC White Power over Ethernet (PoE)
SKU:NBE-2AC-13
Low stock: 5 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam® 2AC with dedicated Wi-Fi management.
Improved Noise Immunity
The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This
feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design
The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint.
Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 - 2.472 GHz |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Wi-Fi |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 24 V |
| Output current | 0.5 A |
| Power consumption (max) | 7.5 W |
| Design | |
|---|---|
| Placement | Pole |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | LAN, Power, Signal strength |
| Certification | RoHS, CE, FCC, IC |
| Internal | No |
| Antenna | |
|---|---|
| Antenna gain level (max) | 13 dBi |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Internal memory | 64 MB |
| Operating system installed | AirOS |
| Weight & dimensions | |
|---|---|
| Width | 189 mm |
| Depth | 125 mm |
| Height | 189 mm |
| Weight | 530 g |
| Packaging content | |
|---|---|
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
