Ubiquiti Networks

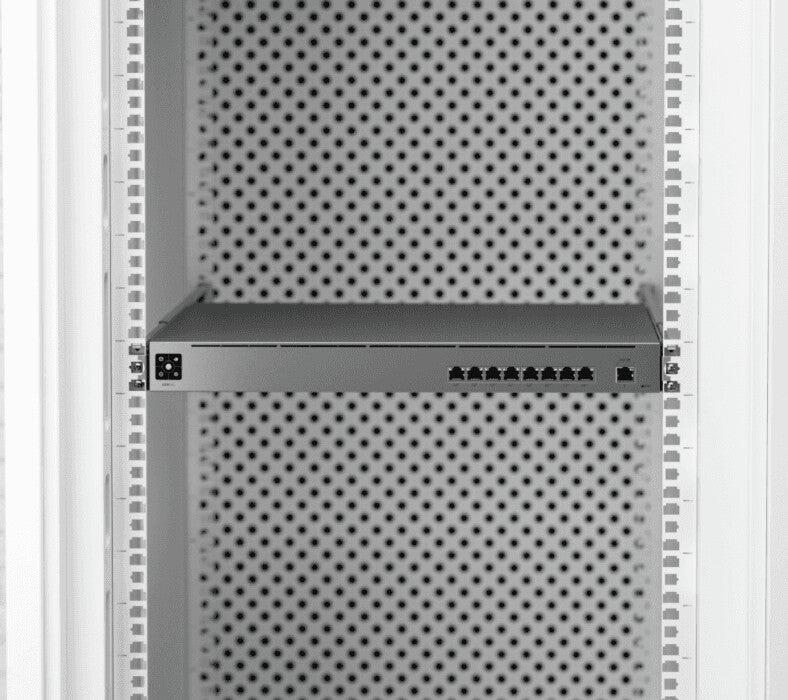

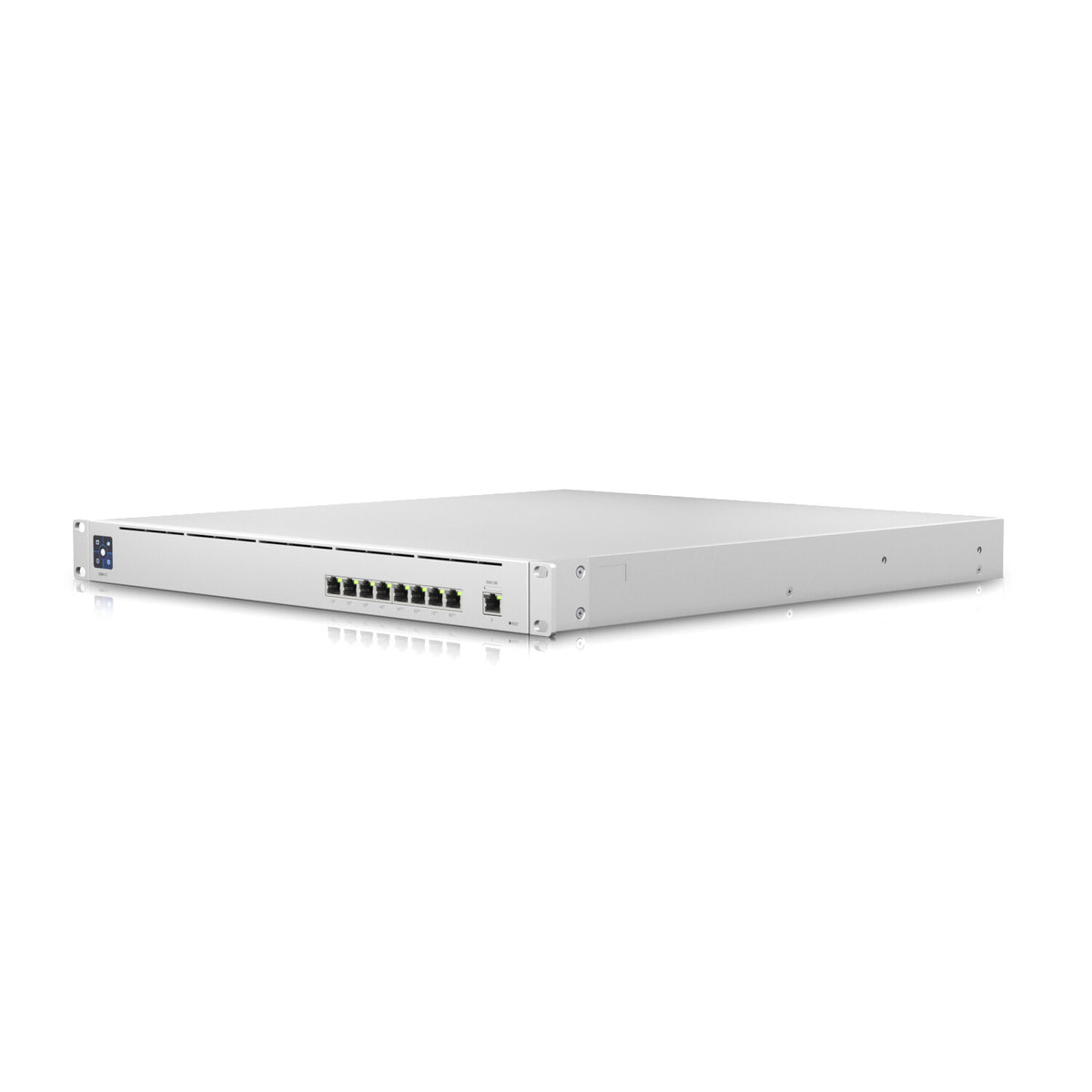

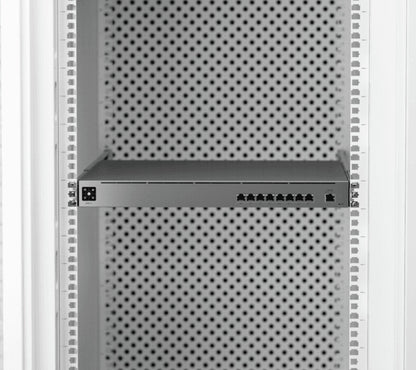

Ubiquiti Mission Critical Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

Ubiquiti Mission Critical Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

£941.86 GBP
£941.86 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

USW-MISSION-CRITICAL

Low stock: 5 left

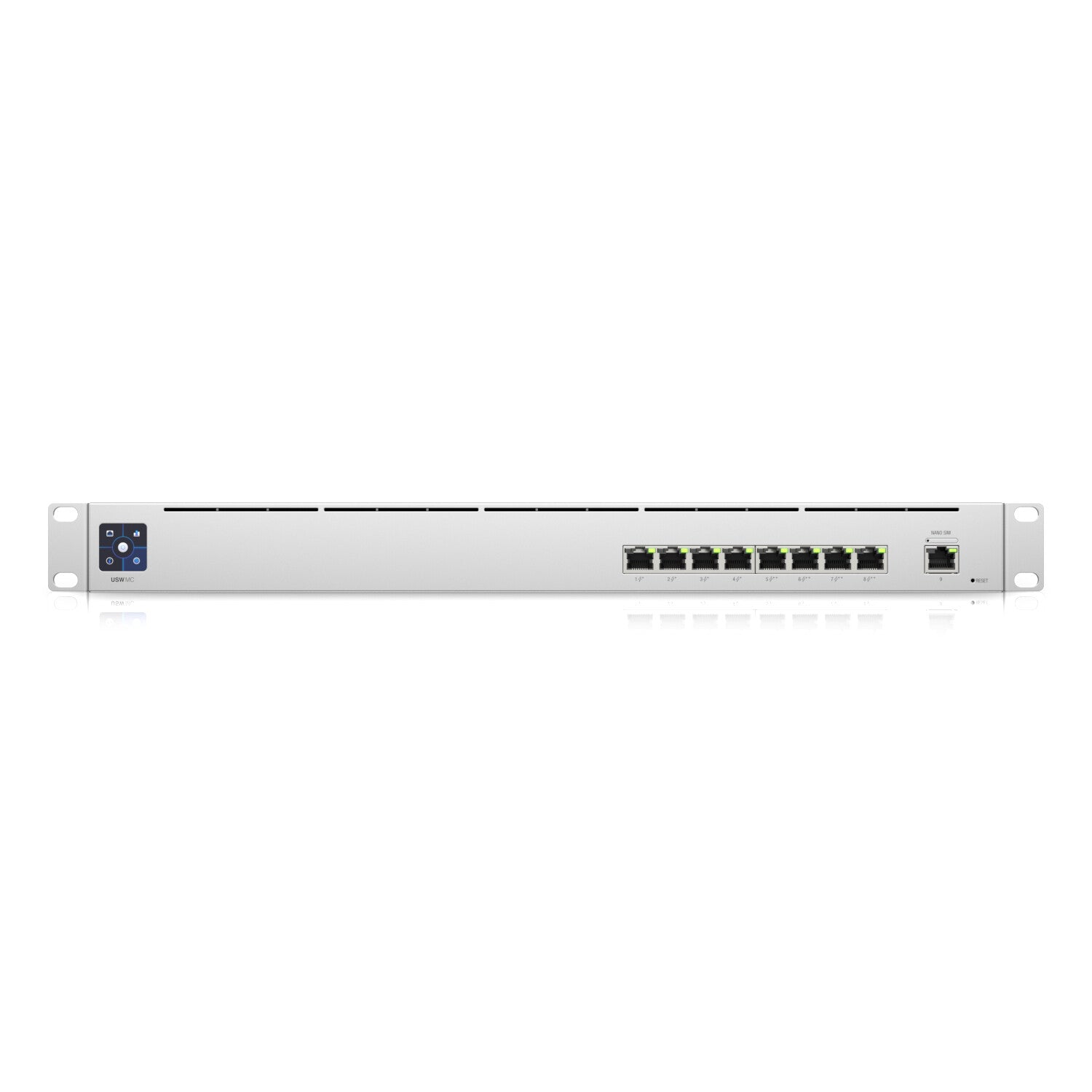

  • (4) GbE PoE+, (4) GbE PoE++ ports
  • (1) GbE port

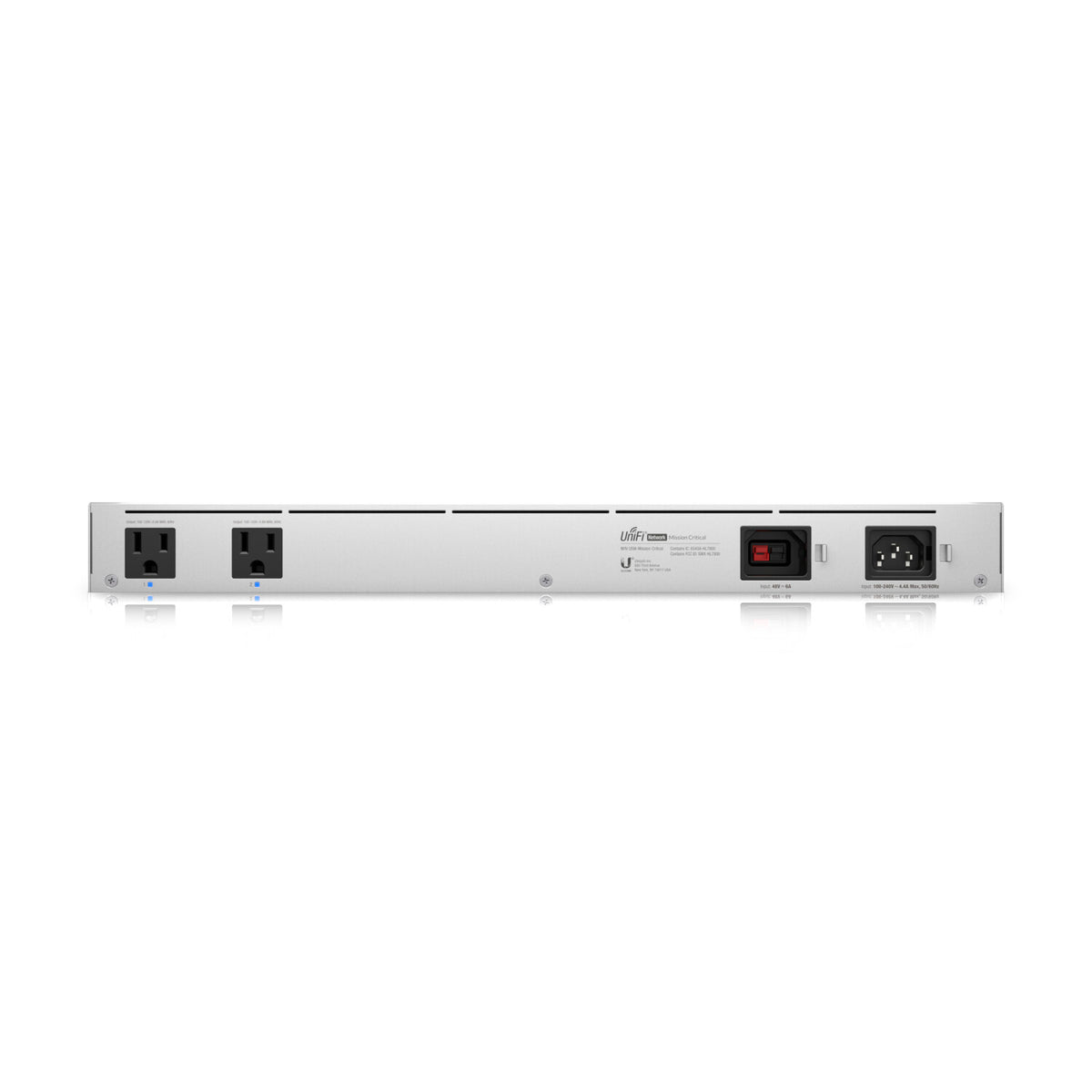

  • (2) 110V AC outputs; 120W total PoE available
  • Battery backup power system
  • Internal battery 368Wh
9x GbE RJ45 ports, 18 Gbps, 26.78 Mpps, AC/DC, internal, 240W, 120W PoE, SGCC steel

A switch with integrated 368Wh Lithium-ion battery, capable of providing uninterruptible power for 8 devices.

Ports & interfaces
Power connector AC-in jack
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 9
Network
Ethernet LAN data rates 10,100,1000 Mbit/s
Data transmission
Forwarding rate 26.78 Mpps
Throughput 9 Gbit/s
Switching capacity 18 Gbit/s
Design
LED indicators Yes
Reset button Yes
Housing material Steel
Form factor 1U
Rack mounting Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC)
Power
Power consumption (max) 240 W
Input current 4.4 A
DC input voltage 48 V
AC input frequency 50/60 Hz
AC input voltage 110 - 240 V
Number of power supply units 1
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 120 W
Power over Ethernet (PoE) voltage 57 V
Power over Ethernet 4PPoE (PoE++) ports quantity 4
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -5 - 40 °C
Weight & dimensions
Weight 9 kg
Height 44 mm
Depth 480 mm
Width 442 mm
Sustainability
Sustainability compliance Yes
