• Ubiquiti LocoM5 150 Mbit/s network bridge
1 2

Ubiquiti Networks

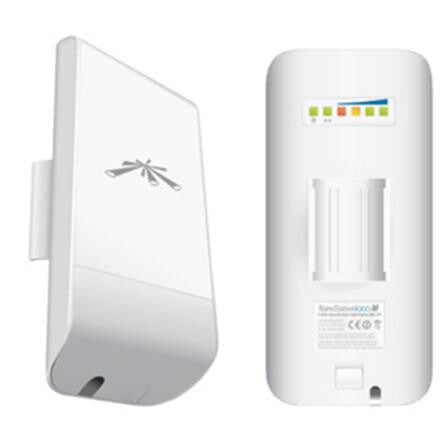

Ubiquiti LocoM5 150 Mbit/s

Ubiquiti LocoM5 150 Mbit/s

LOCOM5

£68.09 GBP£56.74 GBP
£0.00 GBP £68.09 GBP£56.74 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 150 Mbit/s
  • Ethernet LAN
  • Antenna design: MIMO 13 dBi
5GHz, 13dBi, Atheros MIPS 24KC, 400MHz, 32MB SDRAM, 8MB Flash, Fast Ethernet, White

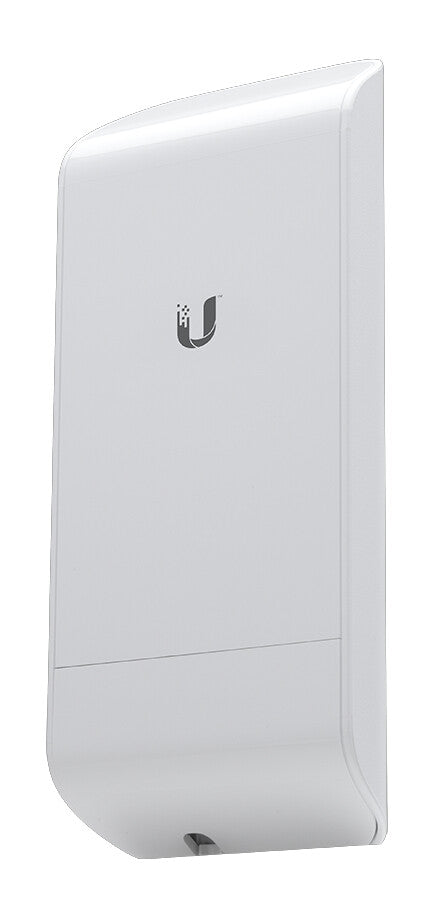

NanoStation Loco M
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.

airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.

Powerful Software Features
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.

World Class Antenna Design
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.

Data transmission
Maximum data transfer rate 150 Mbit/s
Supported data transfer rates 10/100/150 Mbit/s
Antenna
Antenna design MIMO
Antenna gain level (max) 13 dBi
Wireless LAN features
Frequency band 5.170 - 5.875 GHz
Network
Ethernet LAN Yes
Networking standards IEEE802.3, IEEE802.3u
Cabling technology 10/100Base-T(X)
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Management features
Data link protocols TCP/IP, MIMO TDMA
Power
Power consumption (typical) 5.5 W
Power over Ethernet (PoE) Yes
Power requirements 24V, 0.5A
Operational conditions
Operating temperature (T-T) -30 - 75 °C
Operating relative humidity (H-H) 5 - 95%
Certificates
Certification FCC, IC, CE, RoHS
Weight & dimensions
Dimensions (WxDxH) 80 x 31 x 163 mm
Weight 180 g
Logistics data
Harmonized System (HS) code 85176990
