Ubiquiti Networks

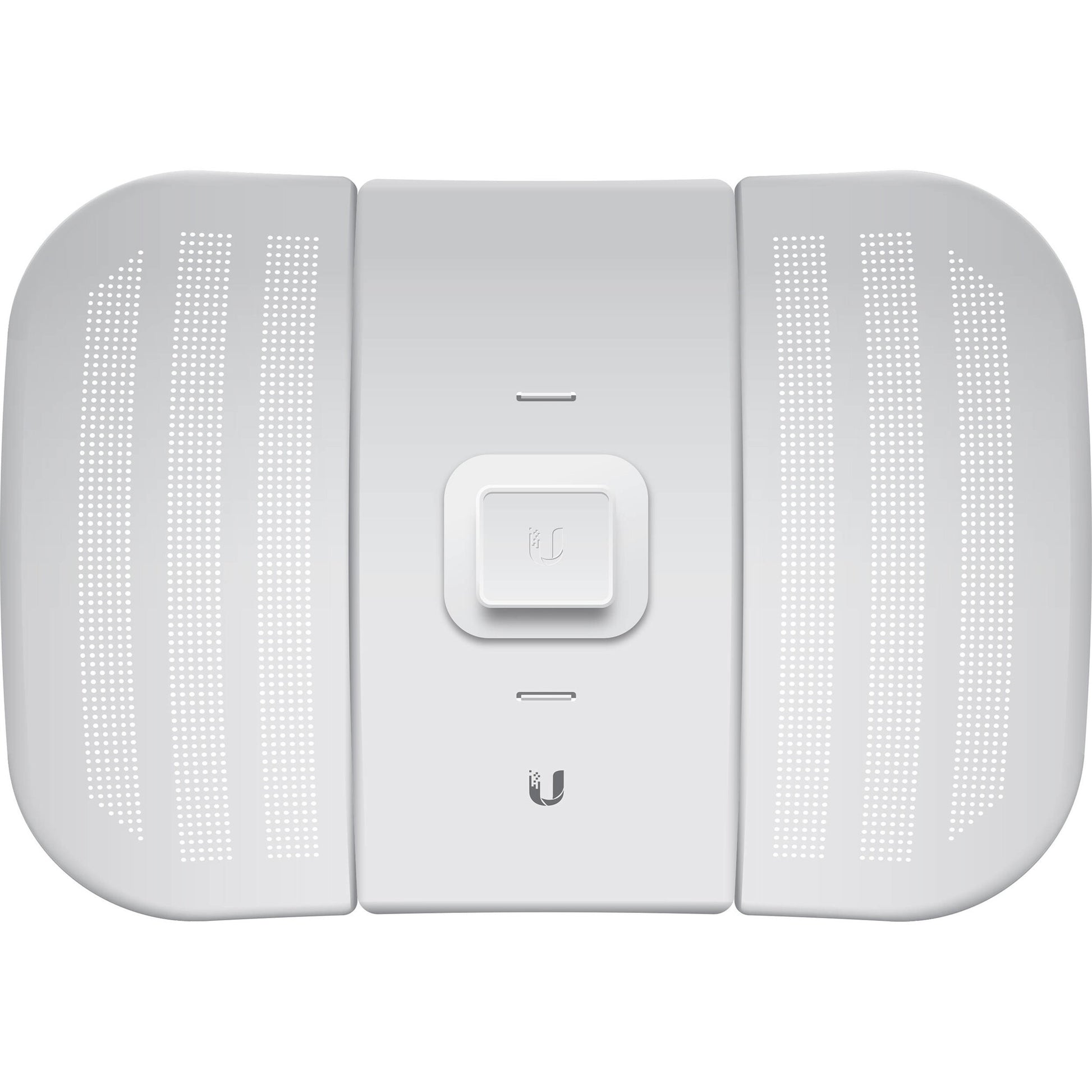

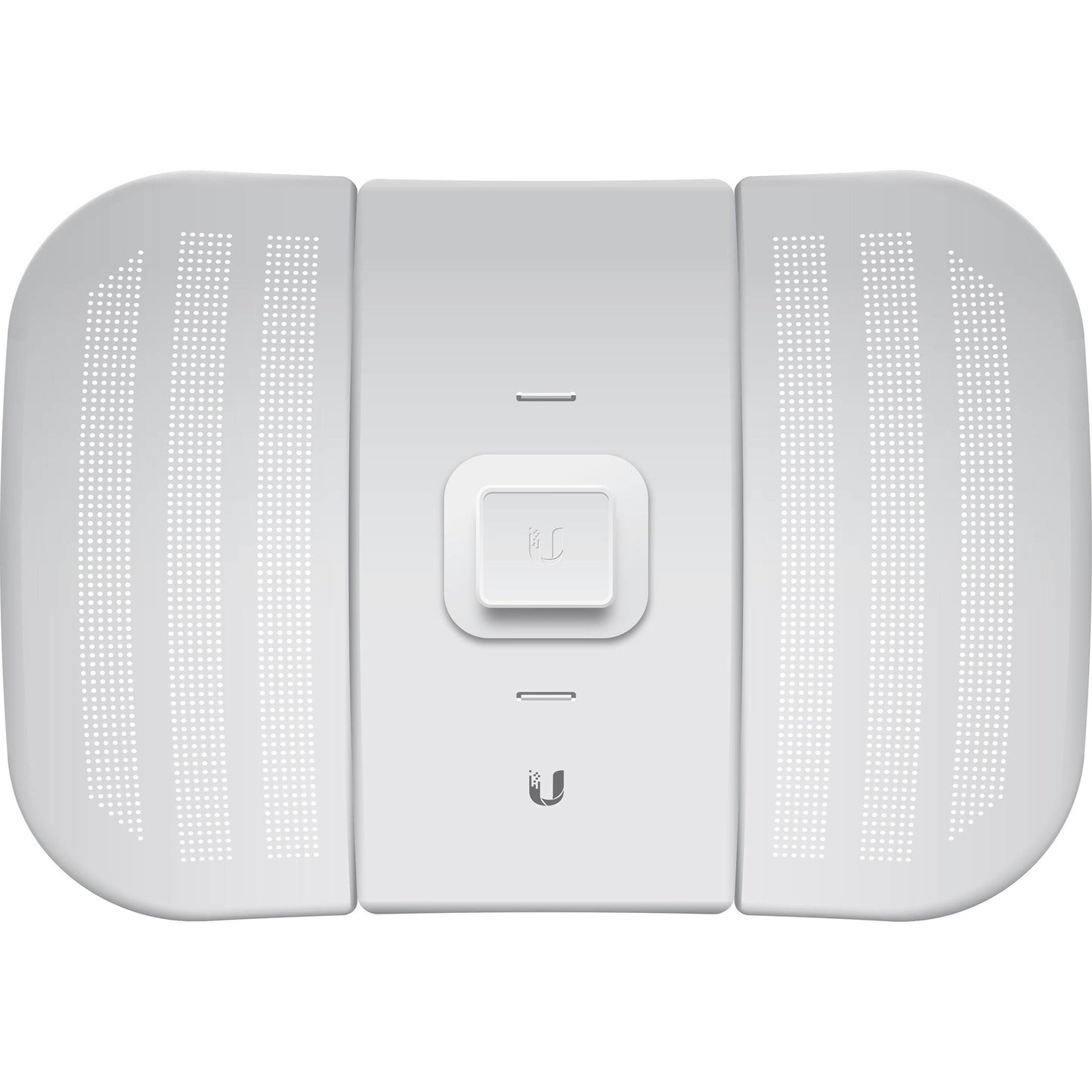

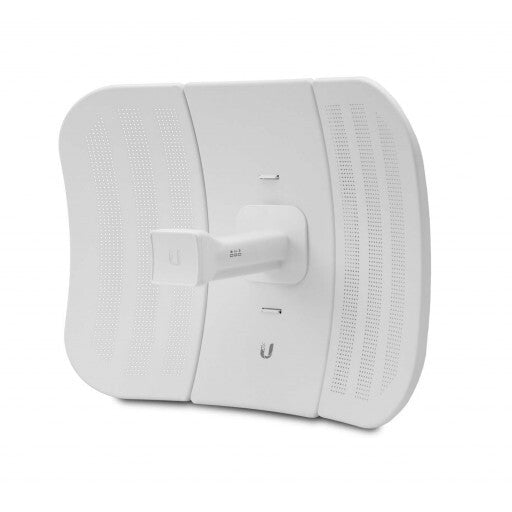

Ubiquiti LBE-M5-23 bridge/repeater 1x1 SISO 100 Mbit/s White

Ubiquiti LBE-M5-23 bridge/repeater 1x1 SISO 100 Mbit/s White

£46.61 GBP
£46.61 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

LBE-M5-23

22 in stock

  • 1x1 SISO 100 Mbit/s
  • 23 dBi
  • White
5150-5875 MHz, 23dBi, 750g

Long-Range, Lightweight airMAX® CPE
The LiteBeam™M is an ultra-lightweight airMAX CPE device with incredible range and disruptive pricing.

High-Gain, Directional Antenna
The LiteBeamM provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Breakthrough Industrial Design

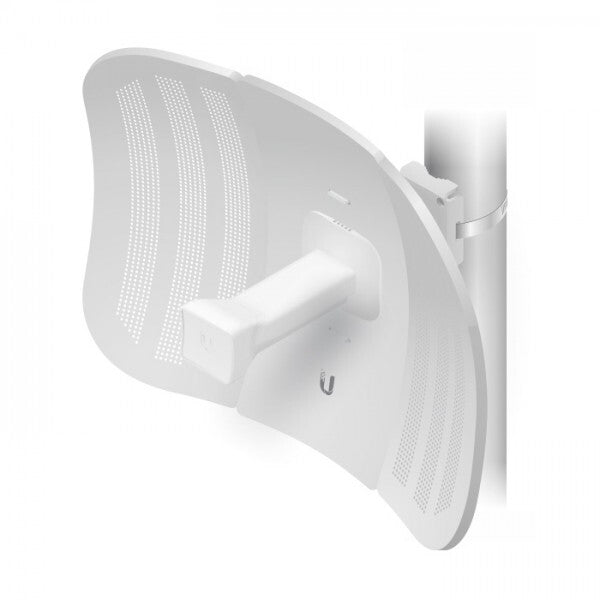

Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeamM is ideal for shipping and logistics.

Data transmission
Maximum data transfer rate 100 Mbit/s
Antenna
Antenna gain level (max) 23 dBi
Wireless LAN features
Frequency band 5.15 - 5.875 GHz
Network
Networking standards IEEE 802.11n
Ports & interfaces
Connectivity technology Wired
Features
Internal memory 64 MB
LED indicators Yes
Product colour White
Product type 1x1 SISO
Power
Power over Ethernet (PoE) Yes
Power supply 5.5 W
AC input voltage 24 V
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -40 - 70 °C
Certificates
Certification FCC, IC, CE, RoHS
Weight & dimensions
Weight 750 g
Dimensions (WxDxH) 362 x 267 x 184 mm
Logistics data
Harmonized System (HS) code 85176990
