• Ubiquiti HORN-5-30, 19 dBi
1 2

Ubiquiti Networks

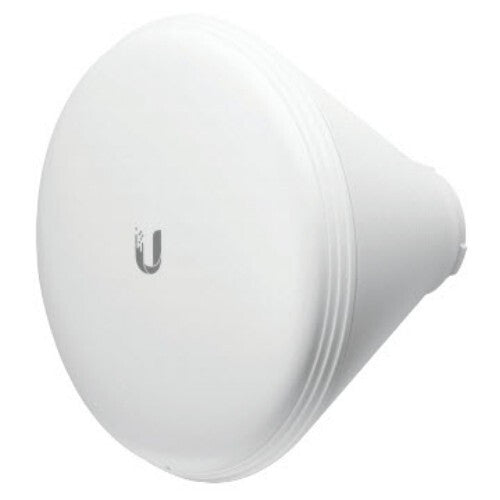

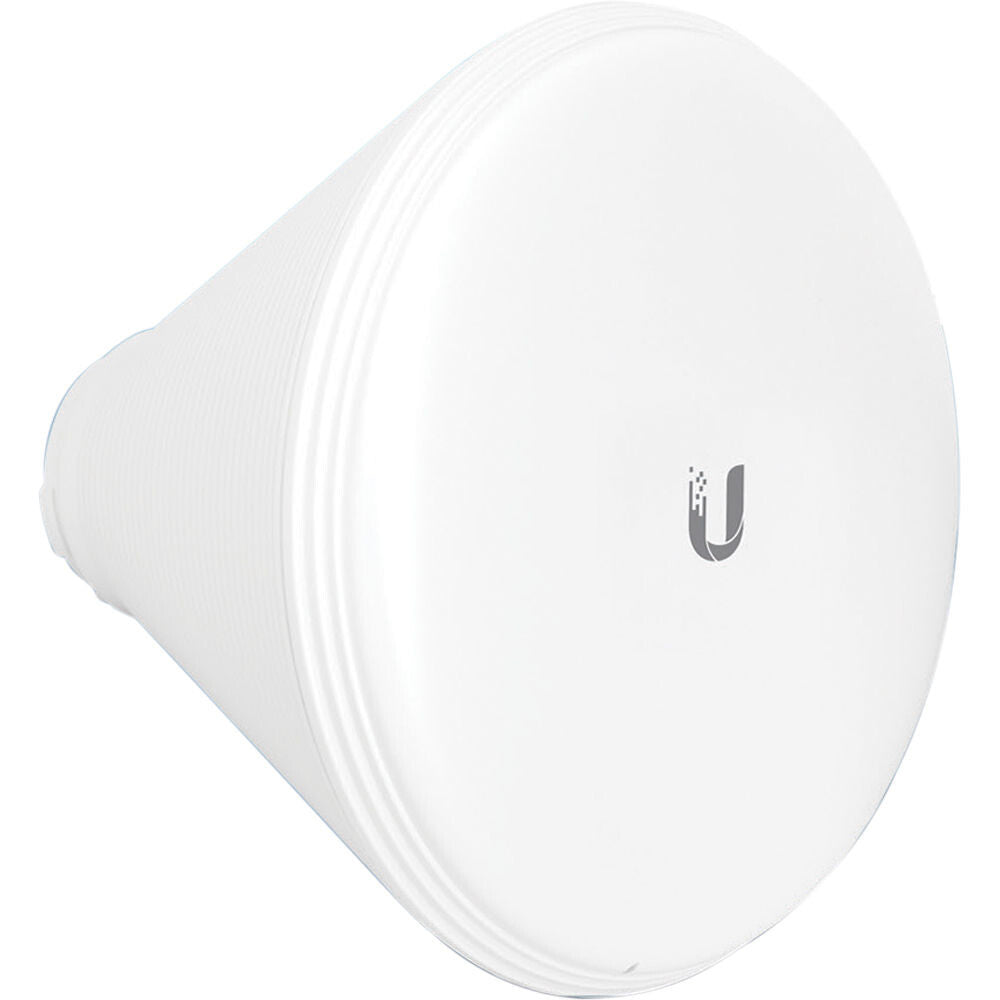

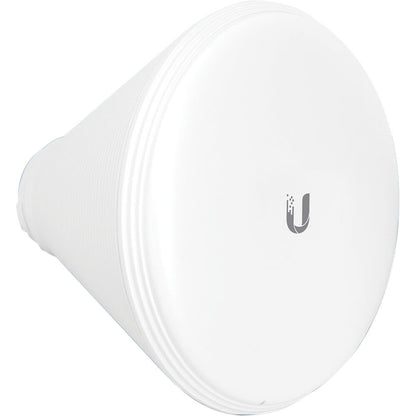

Ubiquiti HORN-5-30 network antenna Horn antenna 19 dBi

Ubiquiti HORN-5-30 network antenna Horn antenna 19 dBi

HORN-5-30

£71.87 GBP£59.89 GBP
£0.00 GBP £71.87 GBP£59.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Horn antenna White
  • 19 dBi
  • 5.15 - 5.85 GHz
  • Dual polarization
  • Survival wind speed: 200 km/h
5.15 ‑ 5.85 GHz, 19 dBi, Dual-Linear, 30°/30°, 1100 g

5 GHz Beamwidth Horn Antenna
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.

Modular Design
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Performance
Antenna gain level (max) 19 dBi
Frequency band 5.15 - 5.85 GHz
Vertical beam width 30°
Horizontal beam width 30°
Features
Antenna type Horn antenna
Polarization Dual polarization
Voltage Standing Wave Ratio (VSWR) 1.7:1
Wind load 56
Survival wind speed 200 km/h
Isolation 17 dB
Product colour White
Weight & dimensions
Depth 184.2 mm
Diameter 22.1 cm
Weight 1.1 kg
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 85177100
