Ubiquiti Networks

Ubiquiti Gateway Max gateway/controller 2500 Mbit/s

Ubiquiti Gateway Max gateway/controller 2500 Mbit/s

£184.88 GBP
£184.88 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

UXG-MAX-UK

24 in stock

  • Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
  • Up to 1.5 Gbps routing with IDS/IPS

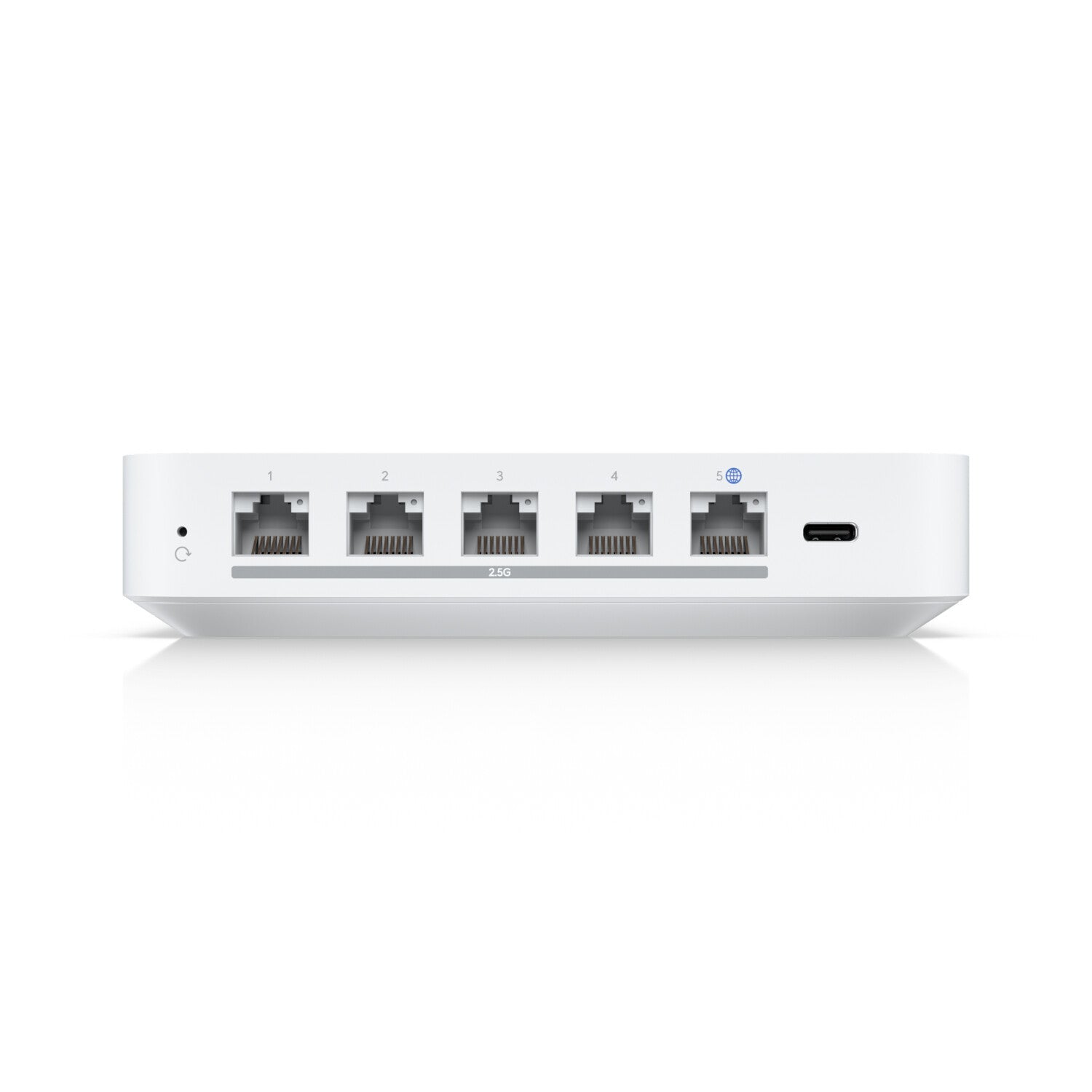

  • (1) 2.5 GbE WAN port
  • (4) 2.5 GbE LAN ports, including (1) remappable to WAN

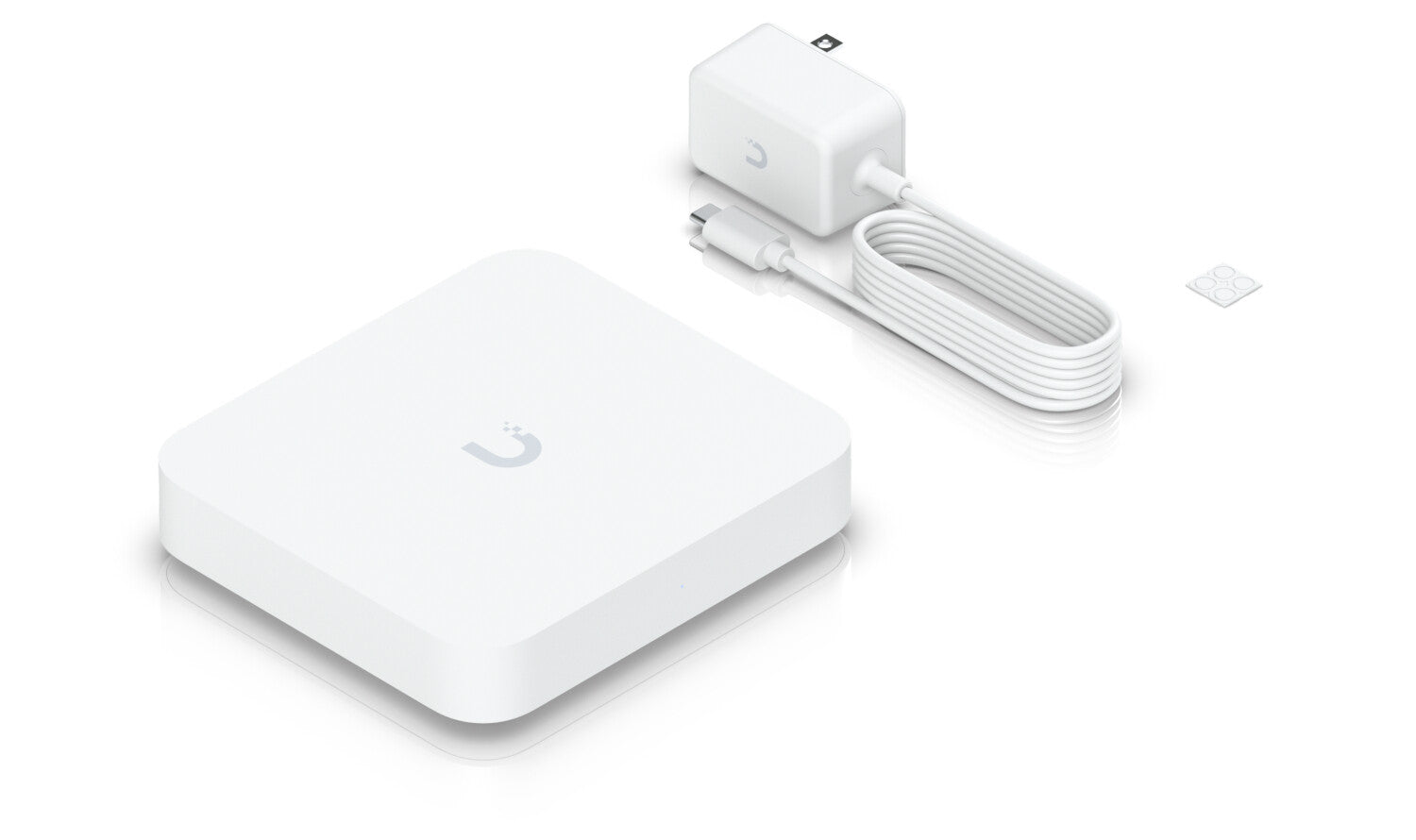

  • USB-C powered (adapter included)
  • Managed with UniFi Network 8.1.113 and later
Managed, 4x 2.5 GbE LAN, 1x 2.5 GbE WAN, Quad-core ARM Cortex-A53 at 1.5 GHz, 2 GB DDR4, IK04, Polycarbonate, white

Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.

Design
Product colour White
Enclosure material Polycarbonate (PC)
LED indicators Activity, LAN, Link
Features
Plug and Play Yes
Performance
Control display unit No
Processor manufacturer ARM
Processor model Cortex-A53
Built-in processor Yes
Processor frequency 1500 MHz
Number of processors installed 1
Internal memory type DDR4
Internal memory 2000 MB
Protocols
DHCP server Yes
Network
Ethernet LAN data rates 2500 Mbit/s
Bluetooth Yes
Security
Security algorithms IPSec
Firewall security Yes
VLAN support Yes
Ports & interfaces
WAN connection Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports 5
Management features
Quality of Service (QoS) support Yes
Reset button Yes
Power
Power consumption (max) 9.6 W
Input voltage 100 - 240 V
Weight & dimensions
Height 30 mm
Depth 127.6 mm
Width 141.8 mm
Weight 520 g
Packaging content
AC adapter included Yes
Operational conditions
Operating temperature (T-T) -10 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Sustainability
Sustainability compliance Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
View full details
