Ubiquiti Networks

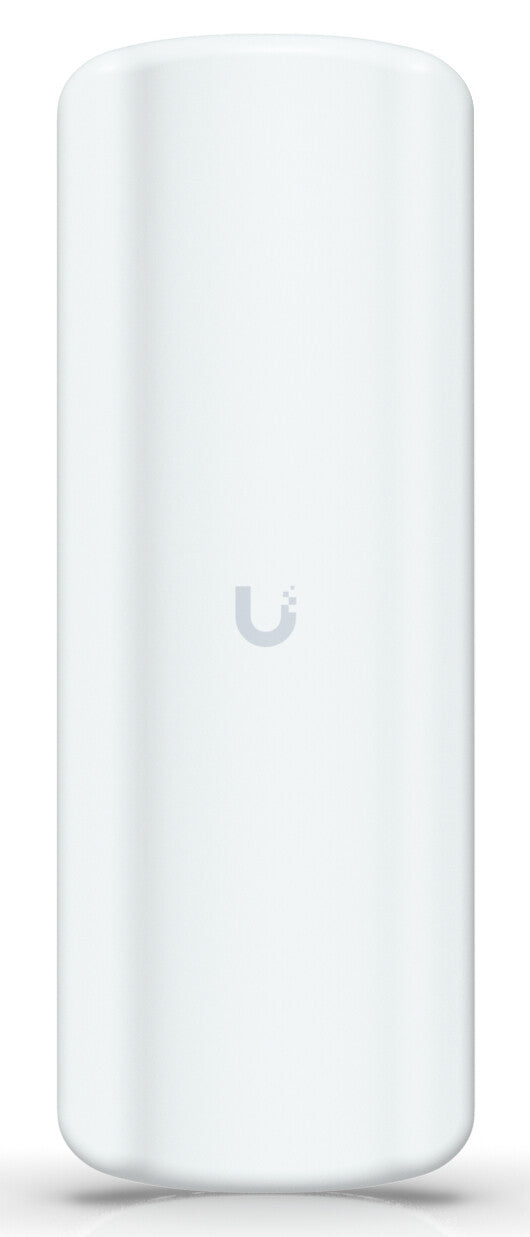

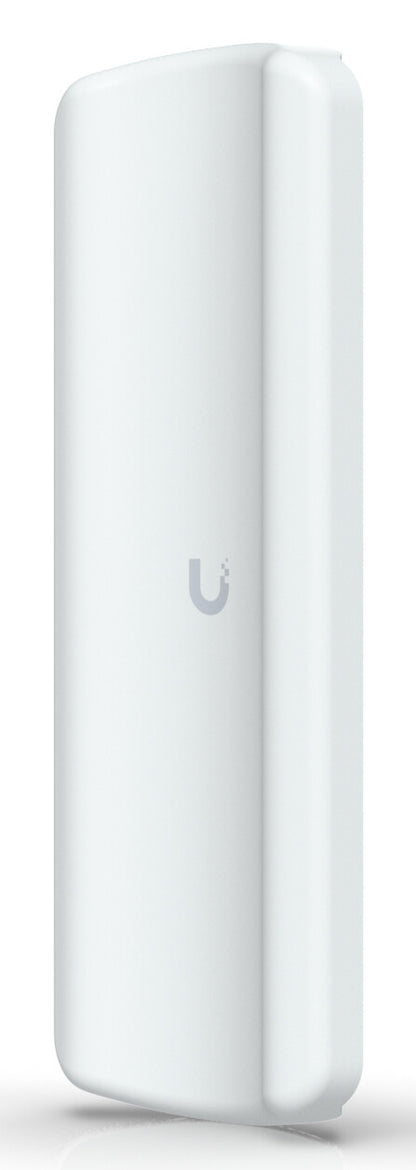

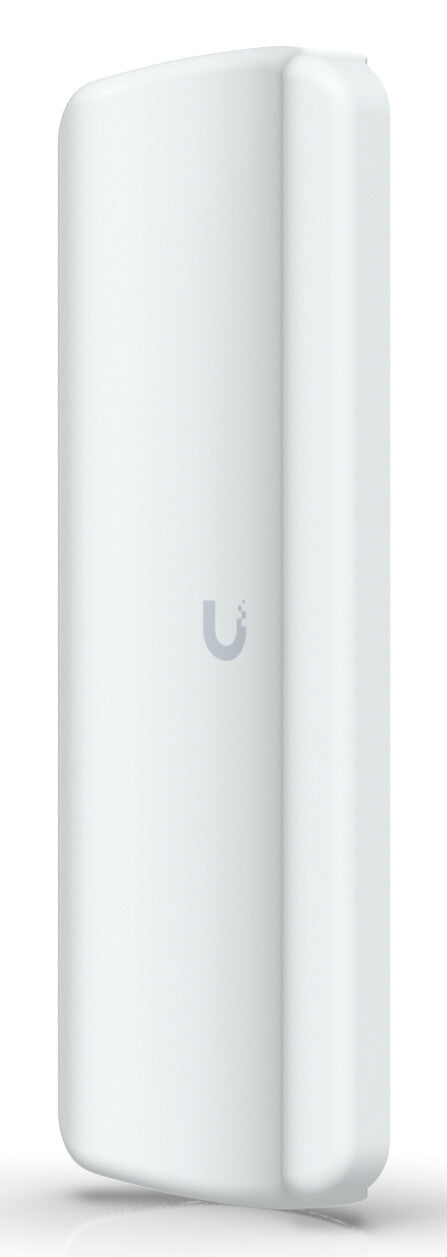

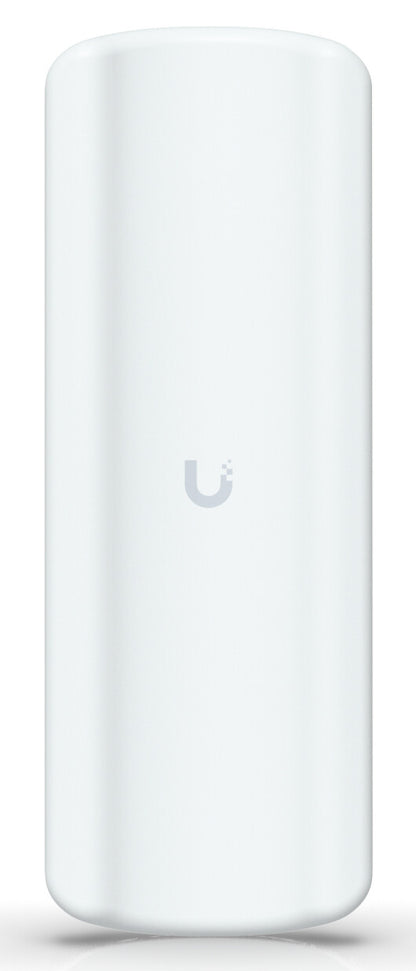

Ubiquiti Device Bridge Pro Sector Network bridge 400 Mbit/s White

Ubiquiti Device Bridge Pro Sector Network bridge 400 Mbit/s White

£192.70 GBP
£192.70 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

UDB-PRO-SECTOR

17 in stock

  • Network bridge 400 Mbit/s 5000 m
  • Wi-Fi Single-band (5 GHz) Wi-Fi 5 (802.11ac)
  • Ethernet LAN Gigabit Ethernet
  • Polycarbonate (PC) IPX6
  • Antenna design: Internal 2x2 17 dBi
  • White
Pole mounting, 5 GHz, Ethernet, Wi-Fi 5, 5 km coverage area

5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.

Data transmission
Maximum data transfer rate 400 Mbit/s
Maximum transfer distance 5000 m
Antenna
Antenna design Internal
Antenna type 2x2
Antenna gain level (max) 17 dBi
Wireless LAN features
Wi-Fi Yes
Wi-Fi band Single-band (5 GHz)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Signal strength 25 dBm
Network
Ethernet LAN Yes
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN data rates 1000 Mbit/s
Ports & interfaces
Connectivity technology Wired & Wireless
Ethernet LAN (RJ-45) ports 1
Security
Security algorithms WPA2-AES
Features
Product type Network bridge
Material Polycarbonate (PC)
Mounting type Pole
Product colour White
LED indicators LAN, Power
International Protection (IP) code IPX6
Reset button Yes
Power
Power source type PoE
DC input voltage 42.5 - 57 V
Power consumption (max) 6 W
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 129.6 mm
Depth 71.4 mm
Height 360.9 mm
Weight 782 g
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Packaging content
Manual Yes
Packaging data
Quantity per pack 1 pc(s)
