Ubiquiti Networks

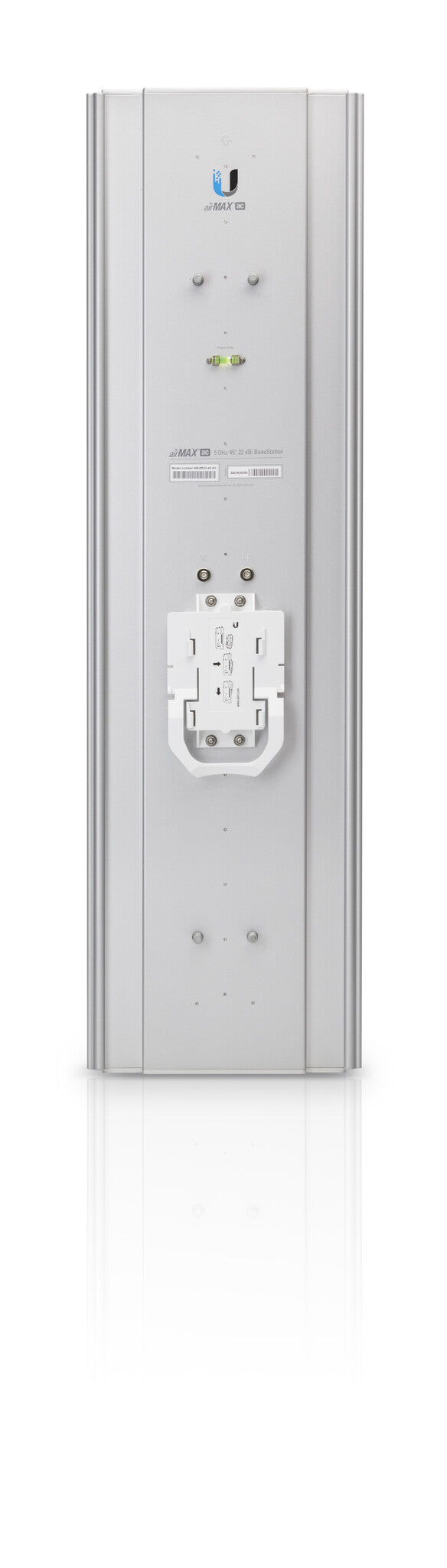

Ubiquiti airMAX ac 2x2 network antenna 22 dBi

Ubiquiti airMAX ac 2x2 network antenna 22 dBi

£205.06 GBP
£205.06 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

AM-5AC22-45

Low stock: 1 left

  • White
  • 22 dBi
  • 5.1 - 5.8 GHz
  • Dual polarization
  • Wall
5 GHz, 22 dBi, 45°

The airMAX®ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Breakthrough Design and Performance

The airMAX®ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

Superior Noise Immunity

Featuring reduced sidelobes and backlobes, the airMAX®ac Sector Antennas are engineered to reject noise interference in co‑location deployments.

Market-Leading Beam Performance

Compare the diagram of the airMAX®ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.

Industrial-Strength Construction

airMAX®ac Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration

Every airMAX®ac Antenna has a built-in Rocket™mount, so no tools are needed to install the Rocket BaseStation.

Performance
Horizontal beam width 45°
Vertical beam width 45°
Frequency band 5.1 - 5.8 GHz
Antenna gain level (max) 22 dBi
Features
Product colour White
Mounting Wall
Voltage Standing Wave Ratio (VSWR) 1.5:1
Polarization Dual polarization
Weight & dimensions
Weight 6 kg
Height 750 mm
Depth 94 mm
Width 215 mm
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 85177100
