Ubiquiti Networks

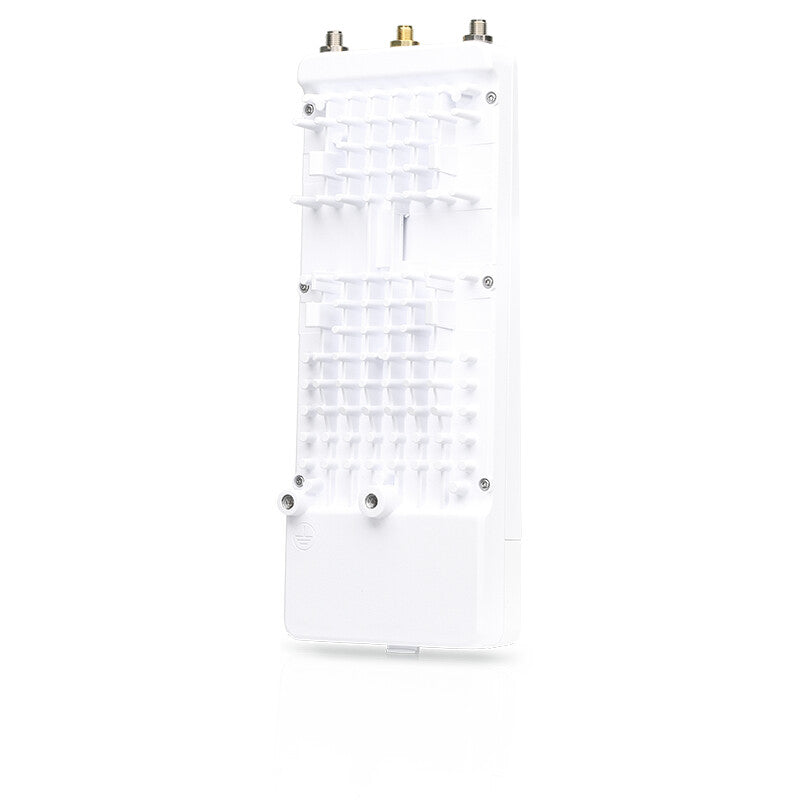

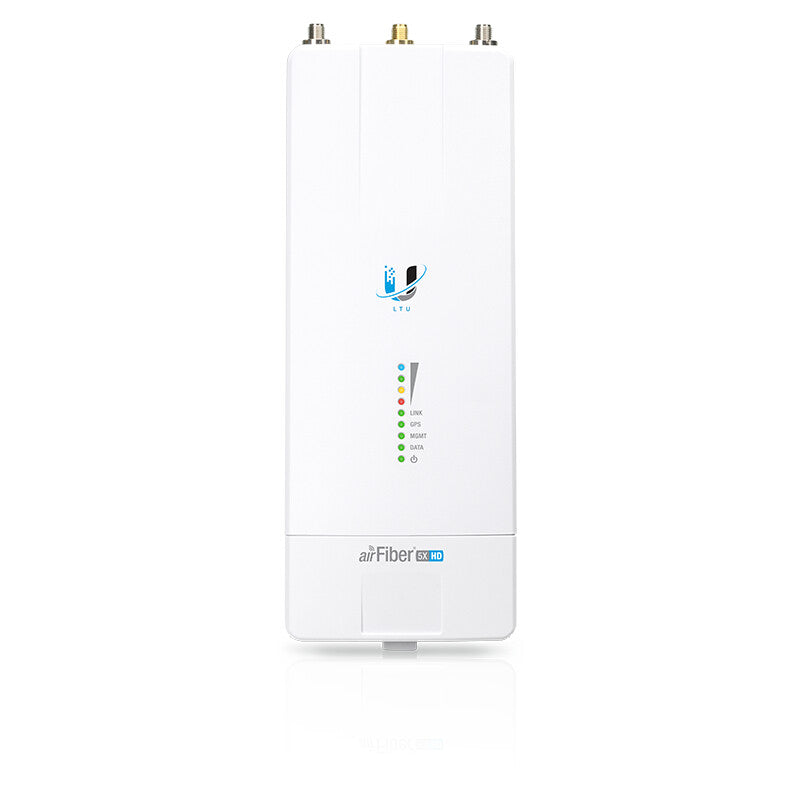

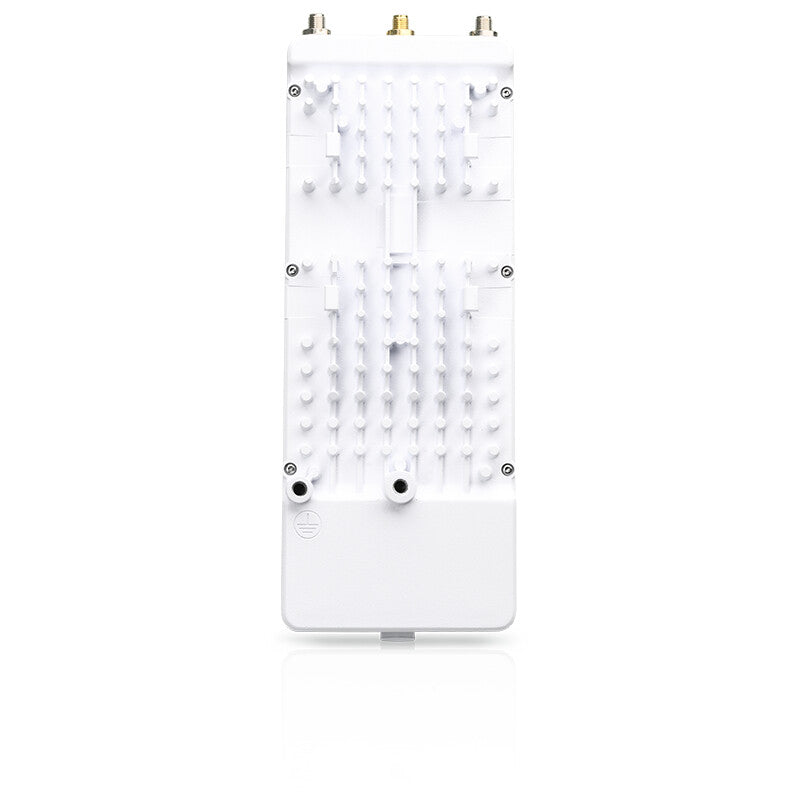

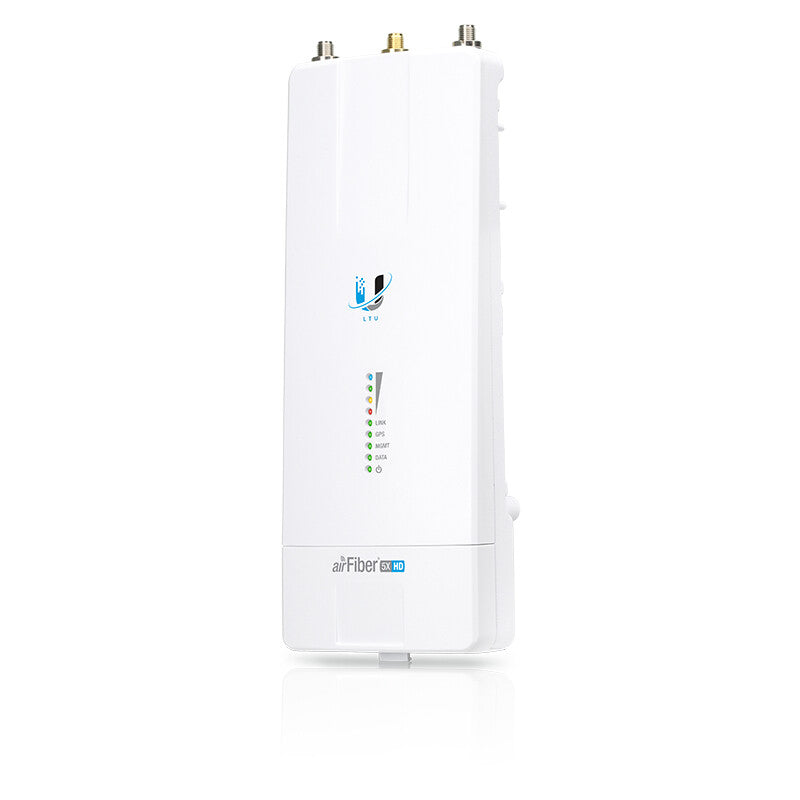

Ubiquiti AirFiber AF-5XHD 1000 Mbit/s White Power over Ethernet (PoE)

Ubiquiti AirFiber AF-5XHD 1000 Mbit/s White Power over Ethernet (PoE)

£340.58 GBP
£340.58 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

AF-5XHD

12 in stock

  • 1 Gbps+ Throughput
  • 4096 QAM Modulation
  • 2 Million+ Packets per Second
  • Proprietary RF Filtering
1+ Gbps, 5150 - 5250MHz/5740 - 5850MHz, LTU IC, 200+ km, 128-bit AES

The New Standard for WISP Backhaul Performance
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s

Complete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.

Game-Changing LTU Technology
Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.

IP-67 Durability
airFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.

Features
5 GHz Yes
Maximum data transfer rate 1000 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Frequency band 5.150 - 5.250 / 5.740 - 5.850 GHz
Channel bandwidth 100 MHz
Modulation QAM
GPS (satellite) Yes
Maximum outdoor range 200000 m
Transmitting power 29 dBmW
Security
Security algorithms 256-bit AES
Ports & interfaces

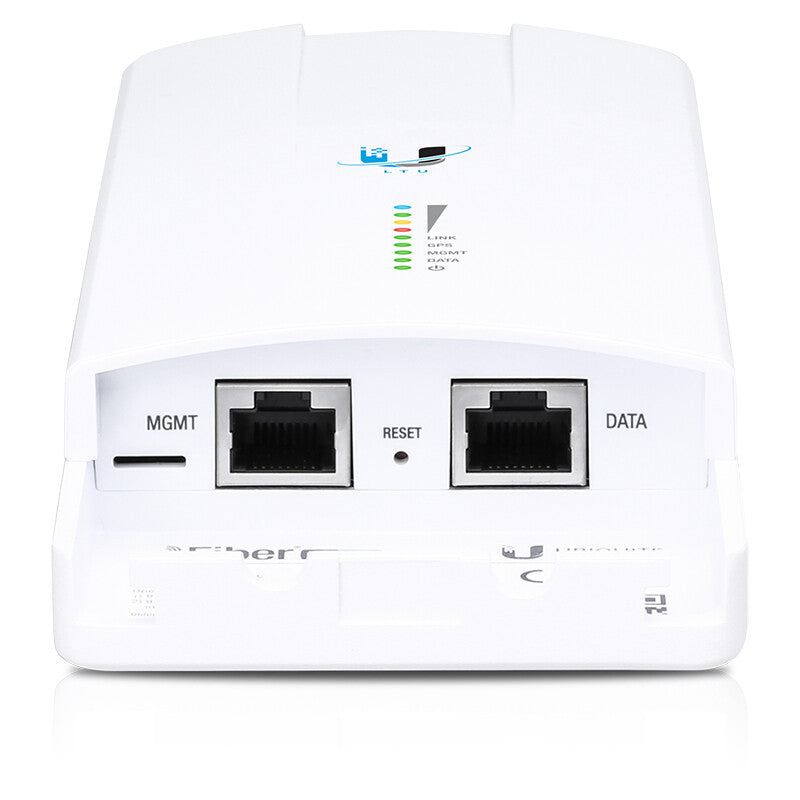

Ethernet LAN (RJ-45) ports 2
Power
Power over Ethernet (PoE) Yes
AC input voltage 20 - 50 V
Output voltage 24 V
Output current 1 A
Power consumption (max) 12 W
Design
Placement Wall
Product colour White
International Protection (IP) code IP67
Certification FCC
Internal No
Antenna
Antenna connector type RP-SMA
Performance
Operating system installed AirOS
Weight & dimensions
Width 82 mm
Depth 48 mm
Height 224 mm
Weight 350 g
Packaging content
Mounting kit Yes
Operational conditions
Operating temperature (T-T) -40 - 55 °C
Logistics data
Harmonized System (HS) code 85176990
