Ubiquiti Networks

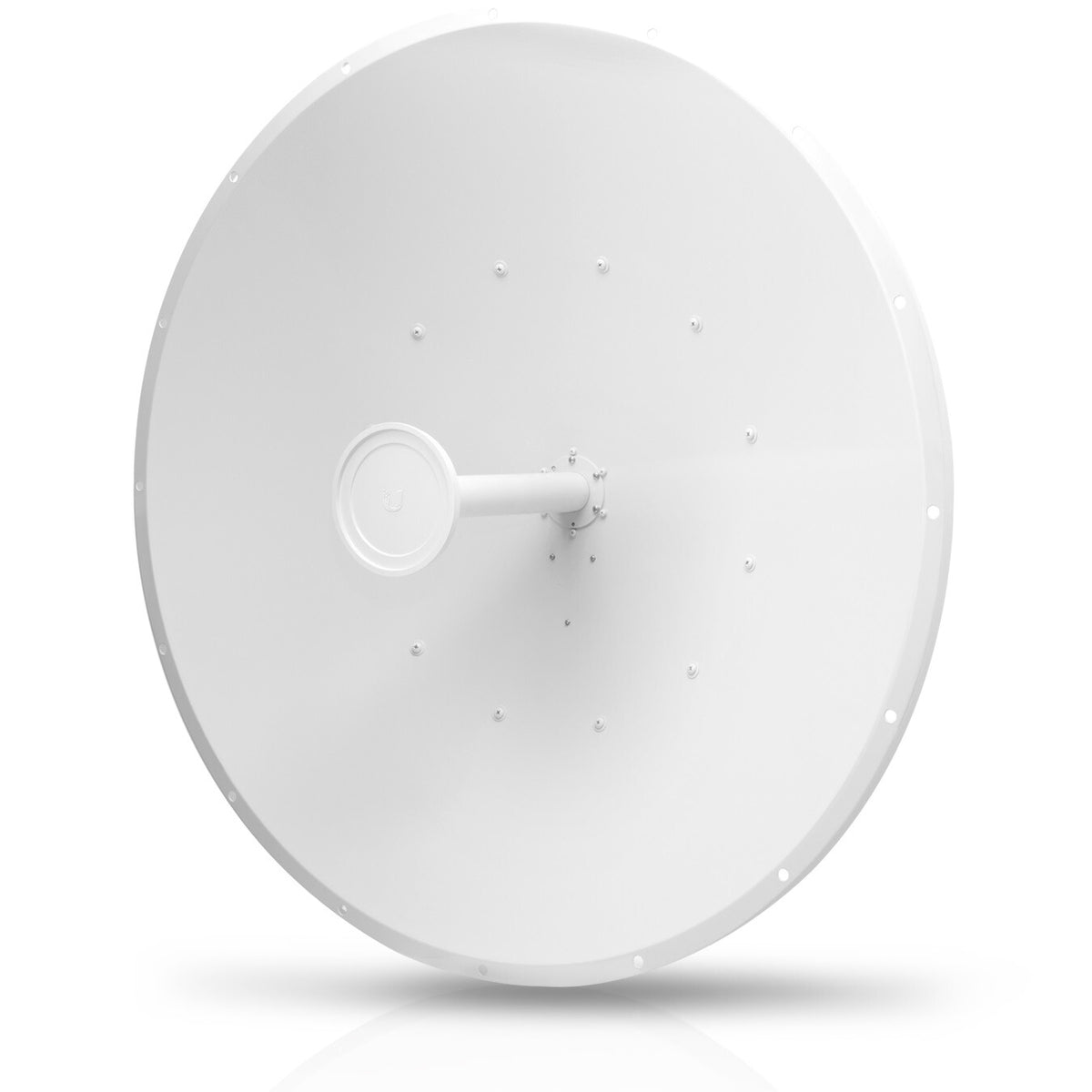

Ubiquiti AF-5G34-S45 network antenna 34 dBi
Ubiquiti AF-5G34-S45 network antenna 34 dBi
Couldn't load pickup availability
SKU:AF-5G34-S45
13 in stock
- White
- 34 dBi
- 5.1 - 5.8 GHz
- Dual polarization
- Survival wind speed: 200 km/h
Compact Footprint for Deployment Flexibility
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.
Plug and Play Integration
The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.
Advanced RF Isolation Design
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.
airFiber X Conversion Kit
The 5 GHz RocketDish to airFiber® Antenna Conversion Kit, model AF-5G-OMT-S45, converts
the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.
| Performance | |
|---|---|
| Antenna gain level (max) | 34 dBi |
| Frequency band | 5.1 - 5.8 GHz |
| Vertical beam width (5 GHz) | 3° |
| Horizontal beam width (5 GHz) | 3° |
| Features | |
|---|---|
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.4:1 |
| Survival wind speed | 200 km/h |
| Isolation | 34 dB |
| Front to back ratio | 42 dB |
| Compatible products | AF-5X |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| Width | 1050 mm |
| Depth | 421 mm |
| Height | 1050 mm |
| Diameter | 105 cm |
| Weight | 13.5 kg |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85177100 |
