Ubiquiti Networks

Ubiquiti AF-5 wireless access point 1000 Mbit/s Power over Ethernet (PoE)

Ubiquiti AF-5 wireless access point 1000 Mbit/s Power over Ethernet (PoE)

AF-5

£1,074.74 GBP£895.62 GBP
£0.00 GBP £1,074.74 GBP£895.62 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 5 GHz
  • Maximum data transfer rate: 1000 Mbit/s
  • 128-bit AES
  • Power over Ethernet (PoE)

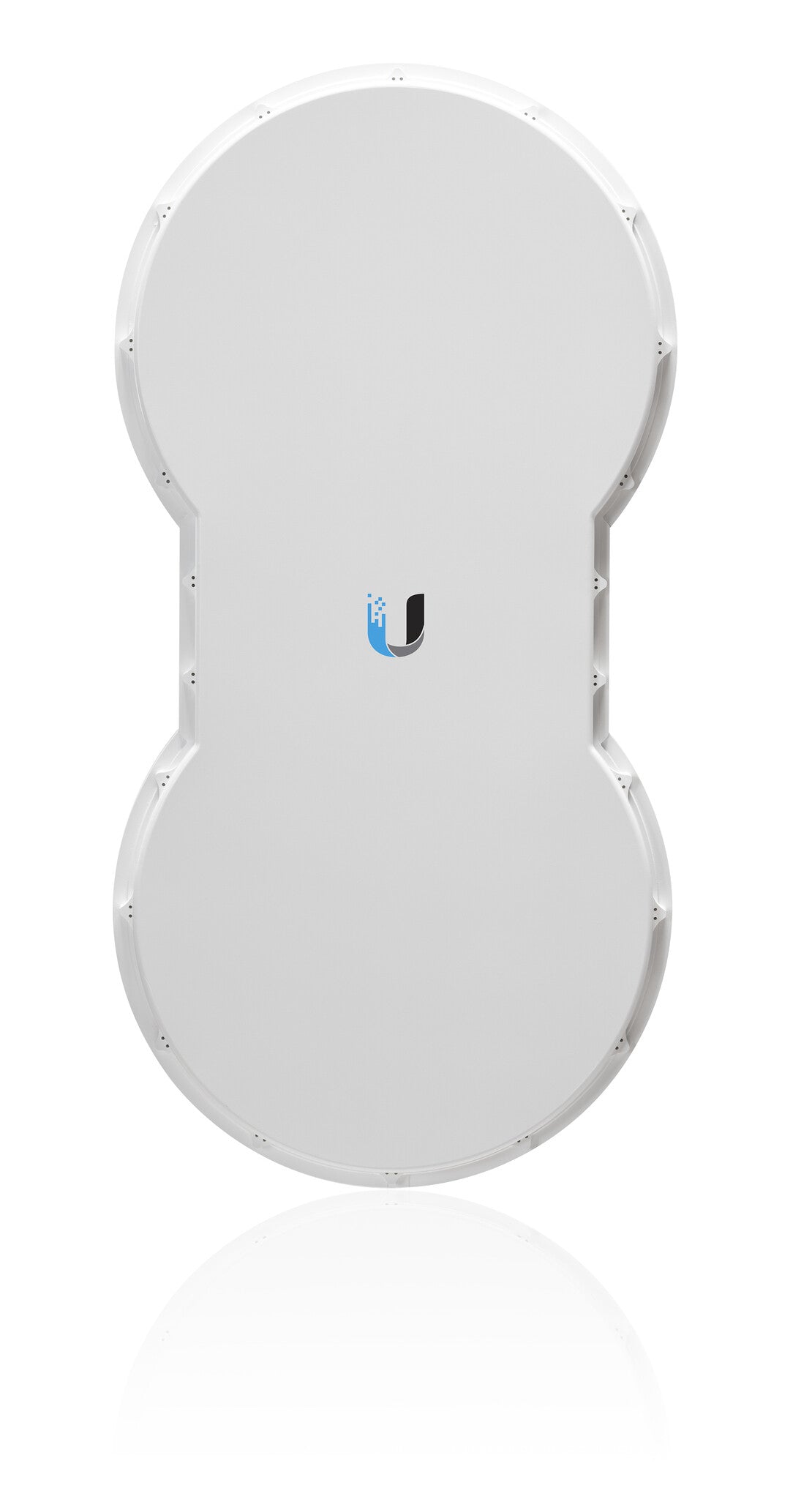

airFiber 5 - 5GHz Full Duplex Point-to-Point Gigabit Radio

The airFiber®5 is purpose-built for outdoor, PtP bridging and carrier-class network backhauls.

Innovative Antenna Design
The high-isolation, dual-antenna design is ideal for robust performance in the harshest RF noise environments.

Revolutionary Performance
Surpassing conventional wired backhauls, the airFiber®5 delivers real throughput of up to 1.2+ Gbps.

Long-Range Links: 100+ km
Designed to be a high-performance backhaul, the airFiber®5 performs at a range of up to 100+ km.

Low-Latency Carrier Backhaul
The airFiber®5 supports FDD (Frequency Division Duplexing) in full-duplex mode for <1 ms latency, resulting in increased efficiency for carrier-class network backhauls.

5 GHz Unlicensed Band
The airFiber®5 operates in worldwide, license-free, 5 GHz frequencies. Users can deploy airFiber5 almost anywhere they choose (subject to local country regulations).

Features
5 GHz Yes
Maximum data transfer rate 1000 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Frequency band 5 GHz
Modulation 1024-QAM, 128-QAM, 16-QAM, 64-QAM, QPSK
Maximum outdoor range 100000 m
Security
Security algorithms 128-bit AES
Management features
Web-based management Yes
Power
Power over Ethernet (PoE) Yes
AC input voltage 50 V
Input current 1.2 A
Design
Internal No
Weight & dimensions
Width 468.4 mm
Depth 281.4 mm
Height 938.4 mm
Weight 16 kg
Operational conditions
Operating temperature (T-T) -40 - 55 °C
Logistics data
Harmonized System (HS) code 85176990
