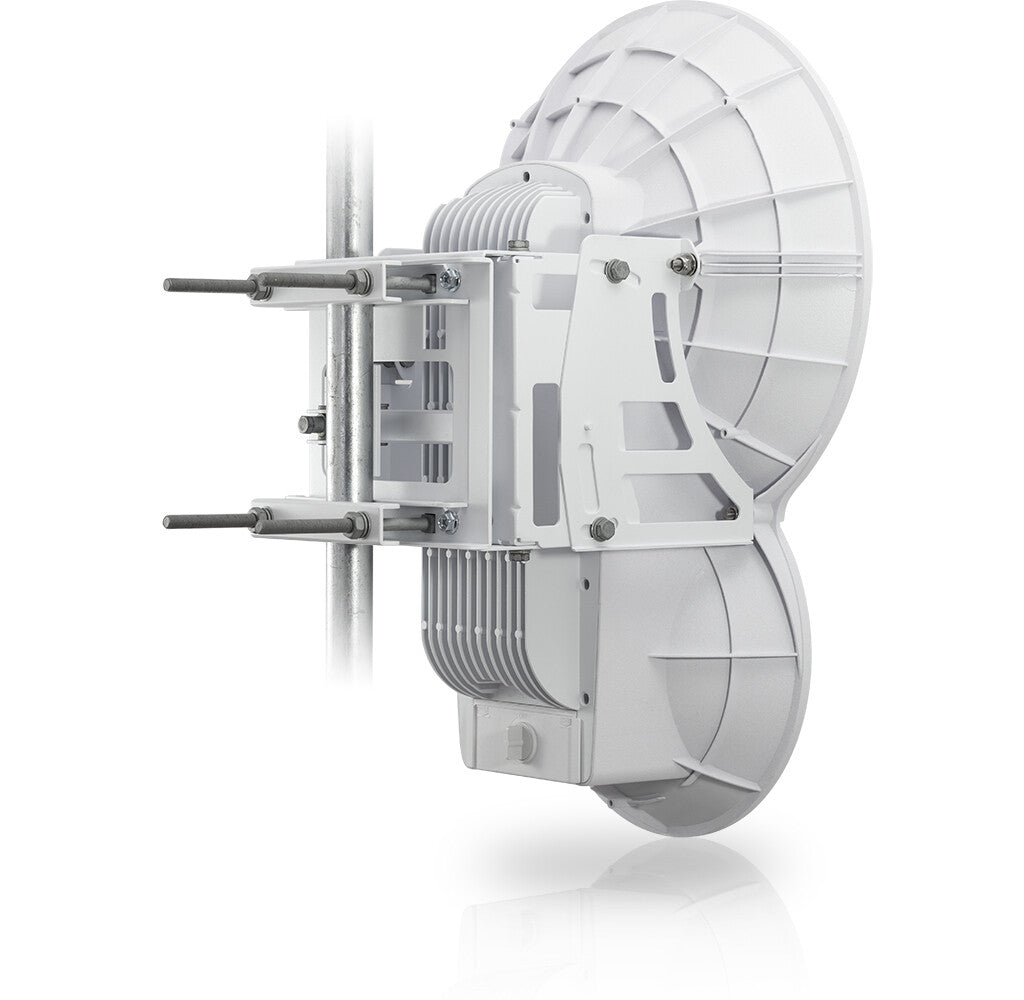

Ubiquiti AF-24 network antenna

Ubiquiti AF-24 network antenna

AF-24

£1,362.98 GBP£1,135.82 GBP
£0.00 GBP £1,362.98 GBP£1,135.82 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • White
  • 24 GHz
  • 40 W
airFiber 24 - 24 GHz Point-to-Point Gigabit Radio

The airFiber®24 is ideal for outdoor, PtP bridging and carrier-class network backhauls.

Revolutionary Performance
Designed to be a high-performance backhaul, the airFiber®24 delivers amazing wireless throughput of up to 1.4+ Gbps, surpassing conventional wired backhauls.

Proven Links: 13+ km
Robust enough to perform in the harshest RF noise environments, the airFiber®24 delivers superior performance with efficiency over real-world, 13+ km links.

Low-Latency Carrier Backhaul
The airFiber®24 supports FDD (Frequency Division Duplexing) in full-duplex mode for <1 ms latency, resulting in increased efficiency for carrier-class network backhauls.

24 GHz Unlicensed Band
The airFiber®24 operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber24 almost anywhere they choose (subject to local country regulations).

Performance
Frequency band 24 GHz
Modulation 16-QAM, 64-QAM, QPSK
Features
LED indicators Yes
Product colour White
Certification CE, FCC, IC
Power
Power consumption (max) 40 W
Operational conditions
Operating temperature (T-T) -40 - 55 °C
Weight & dimensions
Width 426 mm
Depth 303 mm
Height 649 mm
Weight 10.5 kg
Logistics data
Harmonized System (HS) code 85177100
