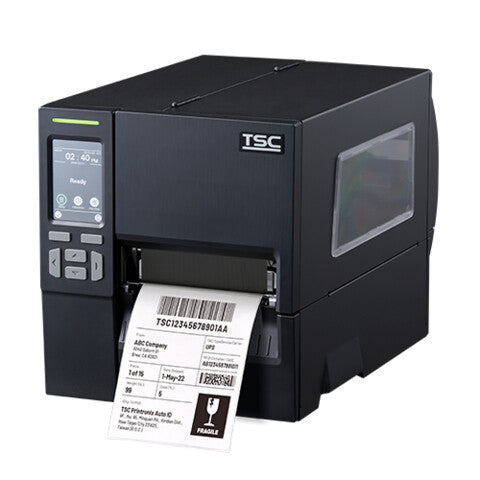

TSC MB241T label printer Direct thermal / Thermal transfer 203 x 203 DPI 304.8 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth
TSC MB241T label printer Direct thermal / Thermal transfer 203 x 203 DPI 304.8 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth
Couldn't load pickup availability
SKU:MB241T-A001-0202
Low stock: 3 left
- Direct thermal / Thermal transfer
- 203 x 203 DPI
- Maximum printing width: 10.7 cm Print speed: 304.8 mm/sec
- Built-in barcodes: 1D, 2D, AZTECCODE, China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MSI, MaxiCode, PDF417, POSTNET, Plessey, QR Code, TLC39, UPC-A, UPC-E
- Connectivity technology: Wired & Wireless
- USB port Ethernet LAN Wi-Fi Bluetooth
- Display: LCD 10.2 cm (4")
- 9.1 kg
The MB Series industrial label printers are value leaders for 4-inch-wide thermal printing. The all-metal print mechanism of MB Series guarantees durability in high-volume printing. The MB Series handles special media types like harder and thicker hangtags and is available with a wide range of optional accessories to support diverse applications. These accessories include linerless, peel-off and RFID upgrade kits, an internal rewinder, and a cutter, all designed to enhance functionality and meet dynamic business demands. They are ideal for limited space and excel in print quality and versatility, making them an outstanding choice for various printing needs. Notably, the MB241 Series Linerless has received the prestigious Red Dot Award: Product Design 2025 in recognition of its forward-thinking approach to modern design, including its sustainability-driven features.
The printer capabilities are designed with auto-switching emulation for hassle-free deployment. TSC Standalone Creator generates a printer LCD UI for quick template access, while TSCPRTGo acts as an extended display for mobile printing. SOTI Connect, TSC Console, and the Internal Embedded Webpage enable remote fleet management.
The newly introduced MB241 Series boasts the bifold media door, cutting operational space requirements by 24%. The MB241 Series boasts 100% recyclable packaging and printer casing, with over 90% recyclable components, minimizing their environmental impact.
| Printing | |
|---|---|
| Print technology | Direct thermal / Thermal transfer |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Printable dot numbers | 8 dot |
| Print speed | 304.8 mm/sec |
| Maximum printing width | 10.7 cm |
| Maximum print height | 2.54 cm |
| Paper handling | |
|---|---|
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Maximum media length | 12 cm |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| USB port | Yes |
| RS-232 ports | 1 |
| Performance | |
|---|---|
| Page description languages | DPL, EPL, TSPL, TSPL-EZ, ZPL, ZPL II |
| Internal memory | 256 MB |
| Flash memory | 256 MB |
| Built-in barcodes | 1D, 2D, AZTECCODE, China post, Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Code128UCC, Datamatrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MSI, MaxiCode, PDF417, POSTNET, Plessey, QR Code, TLC39, UPC-A, UPC-E |
| Built-in processor | Yes |
| Built-in RFID module | Yes |
| Tape end detection | Yes |
| Open cover detection | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 10.2 cm (4") |
| Control type | Touch |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 24 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 25 - 85% |
| Storage relative humidity (H-H) | -40 - 60% |
| Storage temperature (T-T) | 10 - 90 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 248 mm |
| Depth | 436 mm |
| Height | 274 mm |
| Weight | 9.1 kg |
| Packaging content | |
|---|---|
| Cables included | AC, USB |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Compliance certificates | BIS, BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), KC, Norma Oficial Mexicana (NOM), RCM, TÜV mark, UKCA, VCCI, cTUVus |
