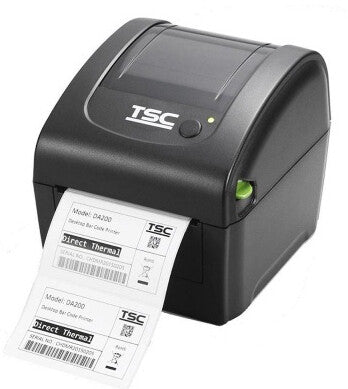

TSC DA220 label printer Direct thermal 203 x 203 DPI 152.4 mm/sec Wired & Wireless Ethernet LAN Wi-Fi

TSC DA220 label printer Direct thermal 203 x 203 DPI 152.4 mm/sec Wired & Wireless Ethernet LAN Wi-Fi

Regular price £312.91 GBP
Regular price Sale price £312.91 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:99-158A025-2702

Low stock: 1 left

  • Small Parcel Shipping
  • Mail Room Address and Routing Labels
  • Shipping & Receiving
  • Entertainment and Transportation Ticketing
  • Retail Point-of-Sale
  • File-Folder Labeling
203 dpi, 6 ips, USB, Ethernet, 802.11 a/b/g/n, 64 MB DRAM, 128 MB Flash, 100 - 240 V, 60 W, Black

The DA210/DA220 Series of direct thermal desktop printers are ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and other labeling and tag applications at a very competitive price.

The DA210/DA220 Series is a perfect combination of affordability with a durable and reliable design. The DA200 series offers both 203 and 300 dots per inch print resolution with printing speeds up to a fast 6 inches per second. The large 60 watt power supply produces high quality printed labels, even at its fastest print speeds.

4 Models Available
The DA210/DA220 Series consists of 4 models designed to provide the right fit for your application. All four models handle up to 5" OD rolls of direct thermal labels and can print crisp, clear barcodes, graphics and text at up to 6 inches per second.

Affordable
The low cost DA210 and DA310 models are priced right and have the features you need for most basic label printing needs using a USB 2.0 or optional Bluetooth interface.

Wireless and Hardwire Communications
Need more communications power? The DA220 and DA320 models have more memory and support every communications option you could need including Serial RS-232, Ethernet, USB host, internal 802.11 a/b/g/n wireless, or internal Bluetooth.

Emulations and More
The DA220/DA230 has plenty of memory with 128 MB Flash & 64 MB DRAM that can be used for easy storage of fonts, international character sets and graphics, and it supports, "right out of the box," a fully compatible set of standard industry emulations, including Line Mode, Eltron®, Zebra® and Datamax languages, making it easy to replace old installed hardware.

Easy Loading

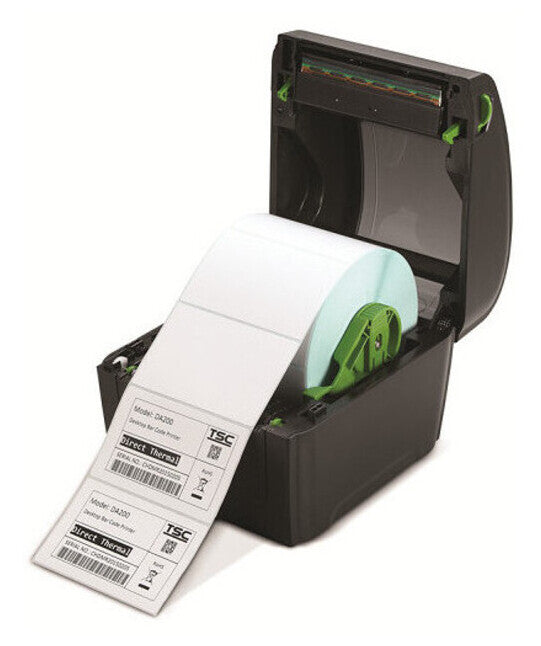

For easy loading, the DA210/DA220 Series employs a user-friendly double-wall clamshell design with a large five-inch (outside diameter) center-biased media bay. The spring-loaded label roll holder makes loading simple. Top-of-form sensing – by gap, black mark, or notch – is standard. The printer also comes with a head-open sensor.

The printers are ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and other labeling and tag applications at the best price anywhere.

Printing
Print technology Direct thermal
Colour No
Maximum resolution 203 x 203 DPI
Print speed 152.4 mm/sec
Printing colours Black
Maximum printing width 10.8 cm
Minimum print length 25.4 m
Rotated printing Yes
Paper handling
Media thickness 0.055 - 0.19 mm
Maximum roll diameter 3.8 cm
Maximum label width 11.4 cm
Ports & interfaces
Connectivity technology Wired & Wireless
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth No
USB port Yes
USB 2.0 ports quantity 1
Performance
Page description languages TSPL-EZ
Internal memory 64 MB
Flash memory 128 MB
Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MicroPDF417, PDF417, QR Code, UPC-A, UPC-E
Built-in processor Yes
Number of fonts 8
Certification FCC Class A, CE Class A, RCM, CB, CCC, ENERGY STAR, KC, BIS, UL, EAC, RoHS, WEEE
Design
Product colour Black
Built-in display No
Display No
Power
Power consumption (printing) 60 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
AC adapter output voltage 24 V
AC adapter output current 2.5 A
Operational conditions
Operating relative humidity (H-H) 25 - 85%
Storage relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 60 °C
Operating temperature (T-T) 5 - 40 °C
Weight & dimensions
Width 172 mm
Depth 195 mm
Height 165 mm
Weight 1.5 kg
Packaging data
Package type Box
Packaging content
Cables included DC
Bundled software Windows labeling
Logistics data
Harmonized System (HS) code 84433210
Technical details
Sustainability certificates ENERGY STAR
