Trendnet

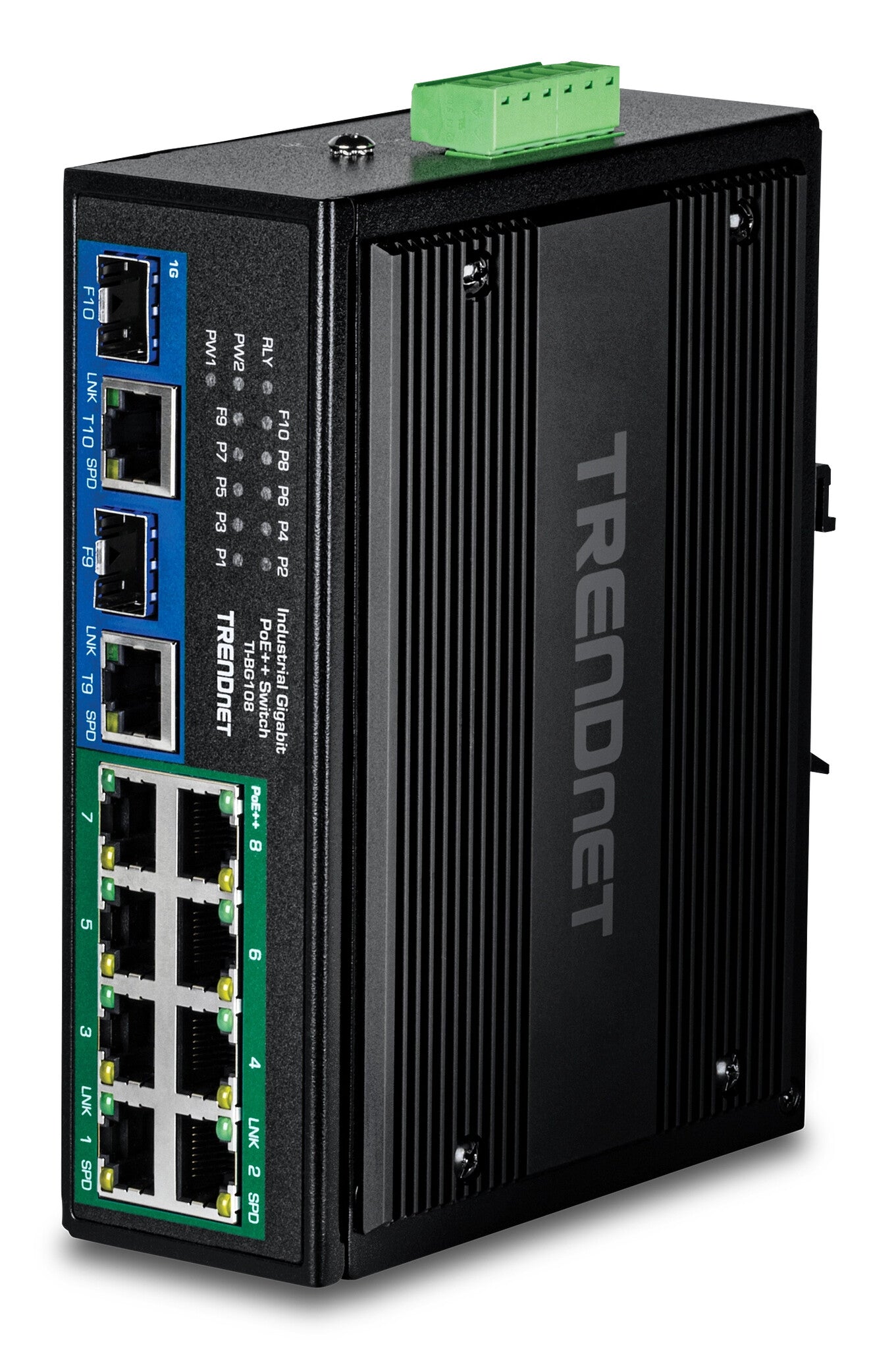

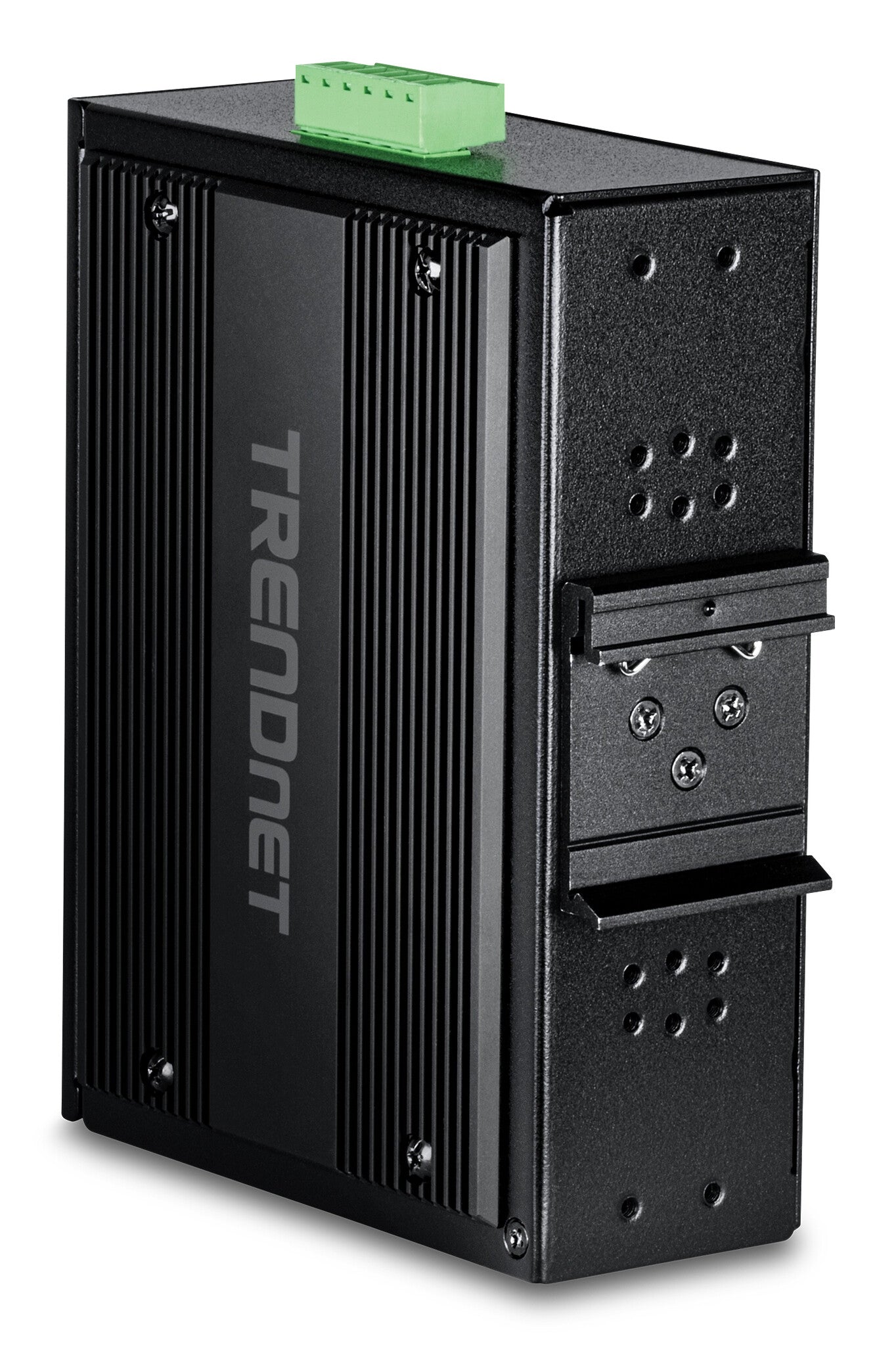

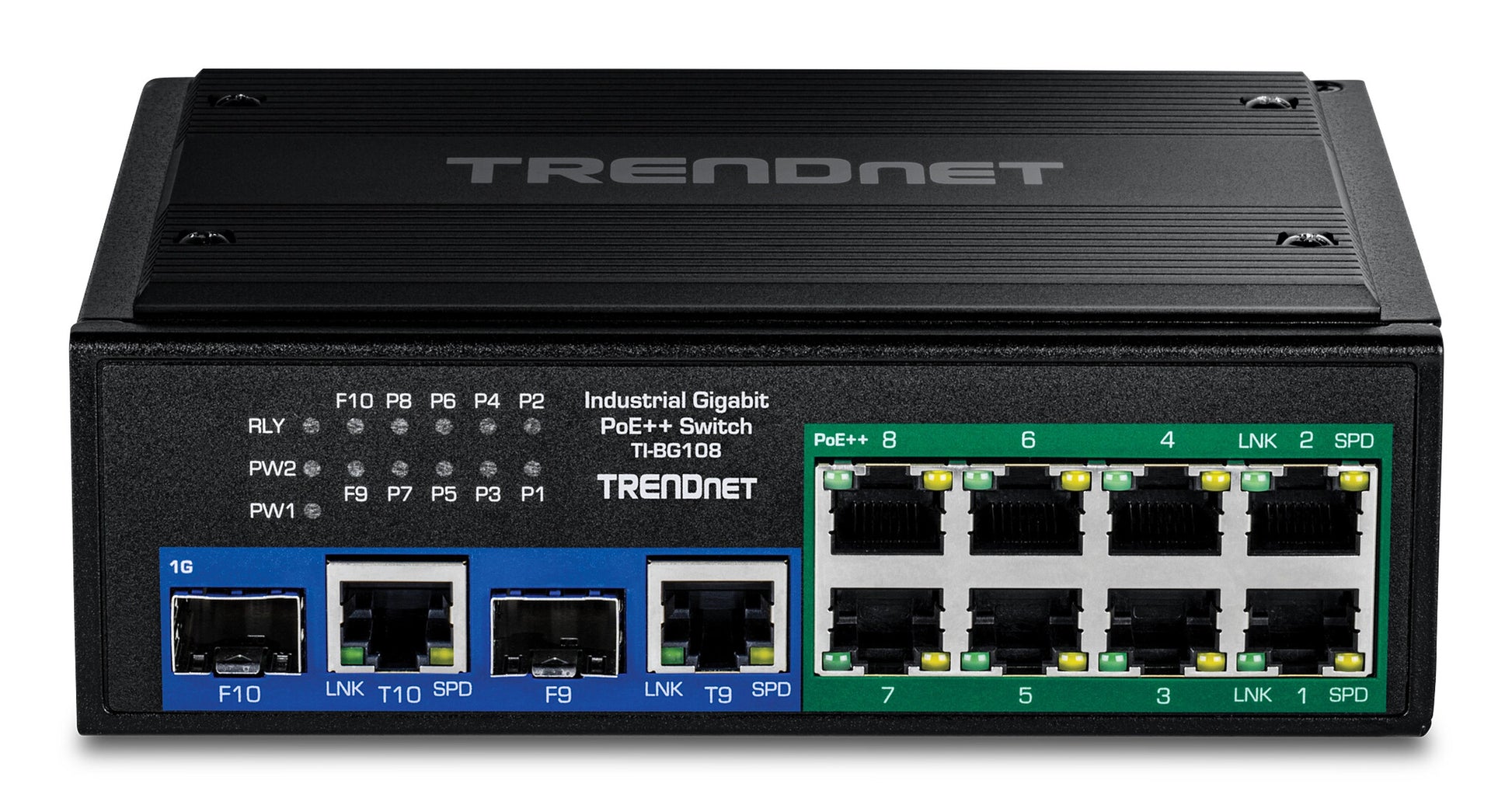

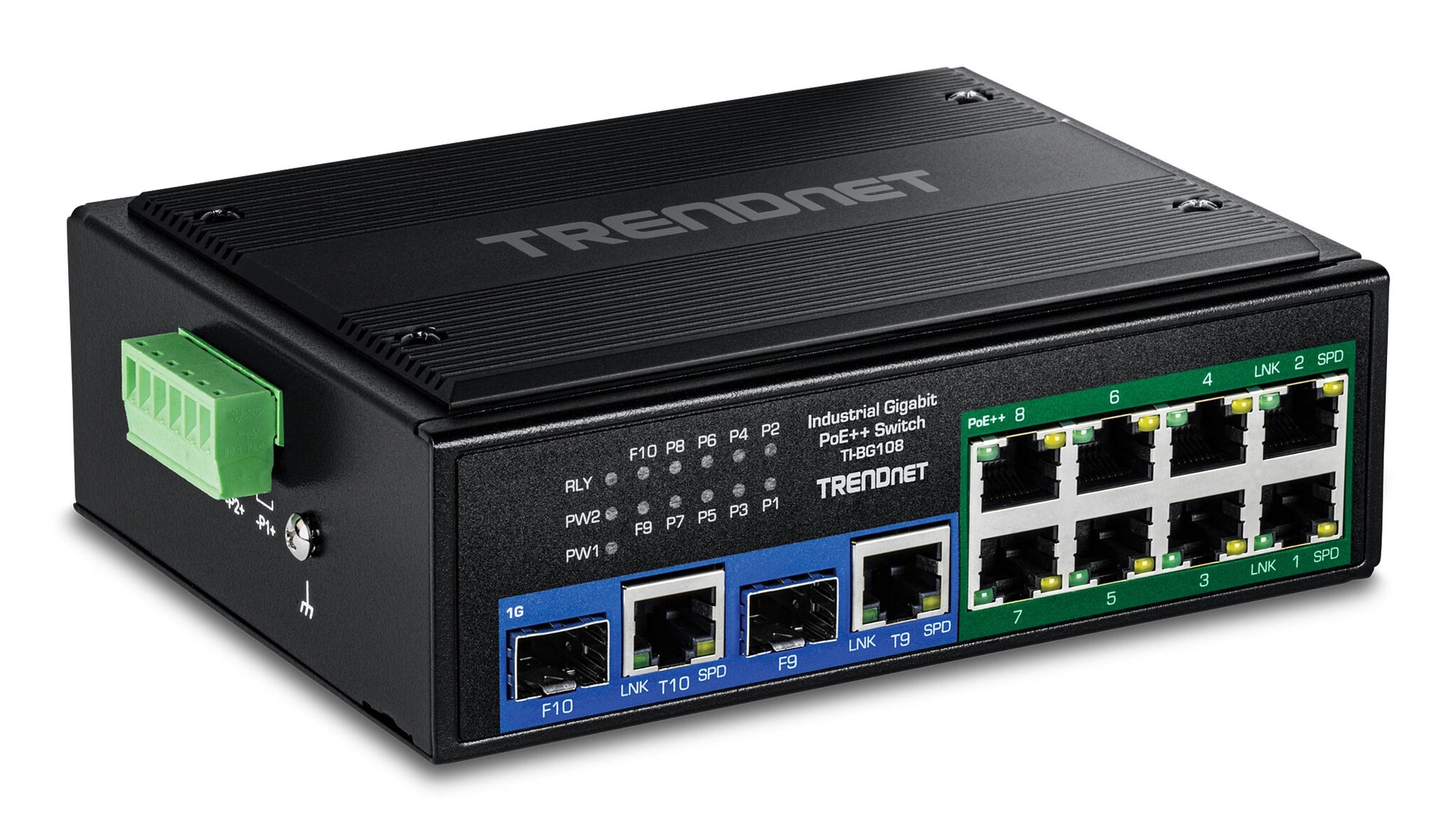

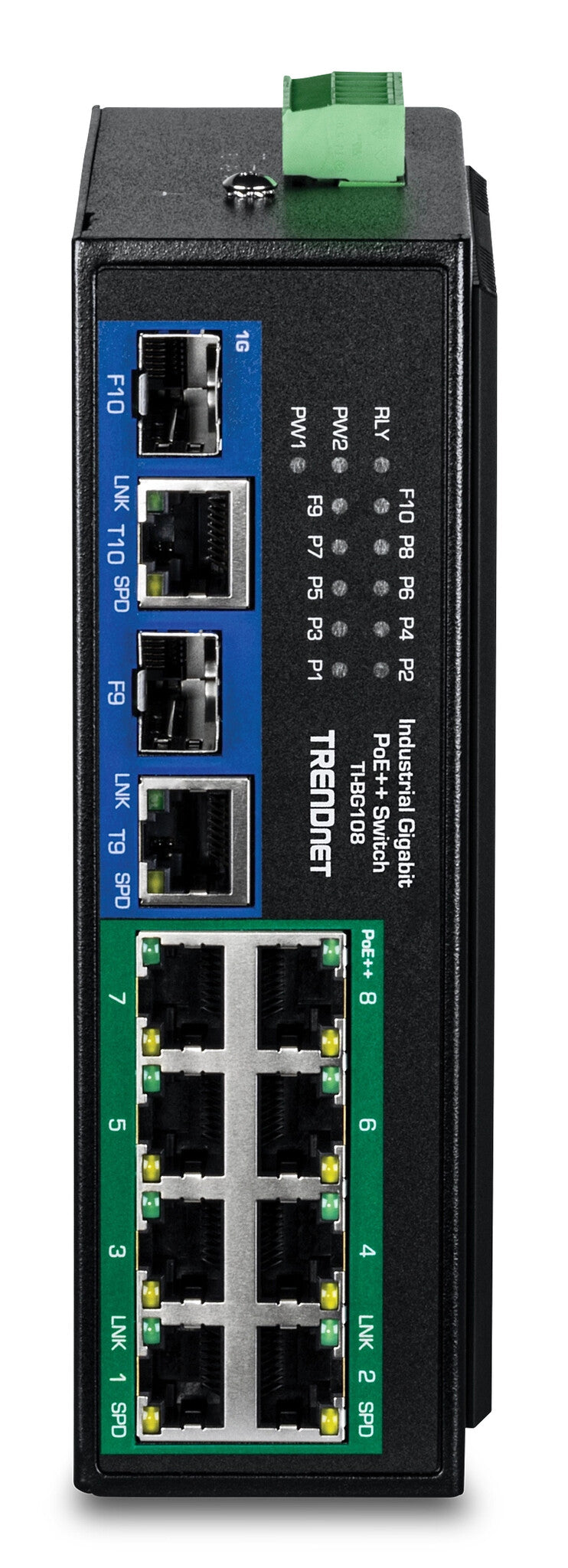

Trendnet TI-BG108 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Trendnet TI-BG108 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Regular price £417.22 GBP
Regular price Sale price £417.22 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:TI-BG108

Low stock: 2 left

  • 8 x Gigabit PoE++ ports
  • 2 x Gigabit shared ports (RJ-45 / SFP)
  • 400W PoE power budget
  • 20Gbps switching capacity
  • Hardened IP50 rated metal switch

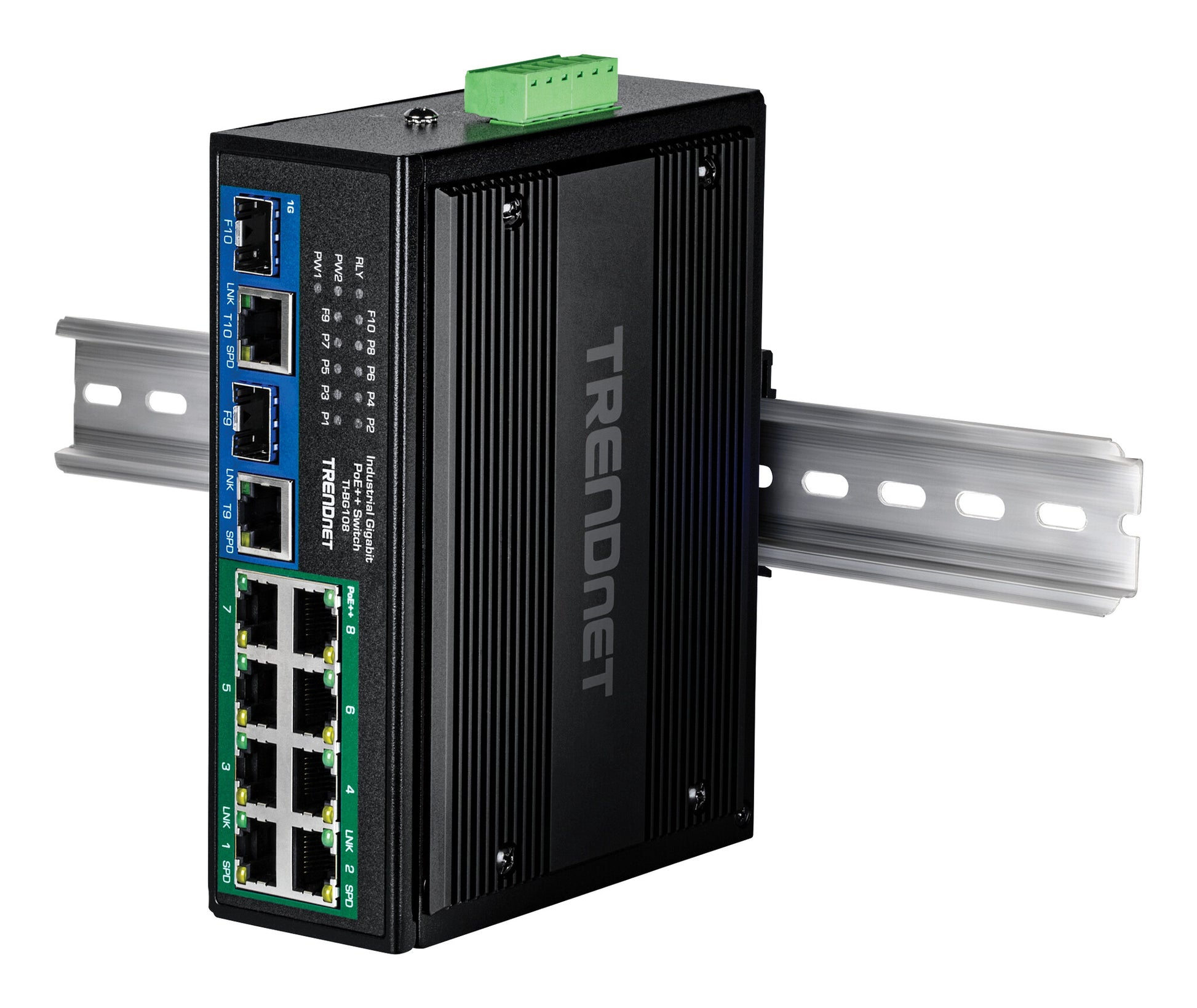

  • Includes DIN-Rail and wall mounts
  • Extreme operating temperature range of -40° – 75° C (-40° – 167° F)

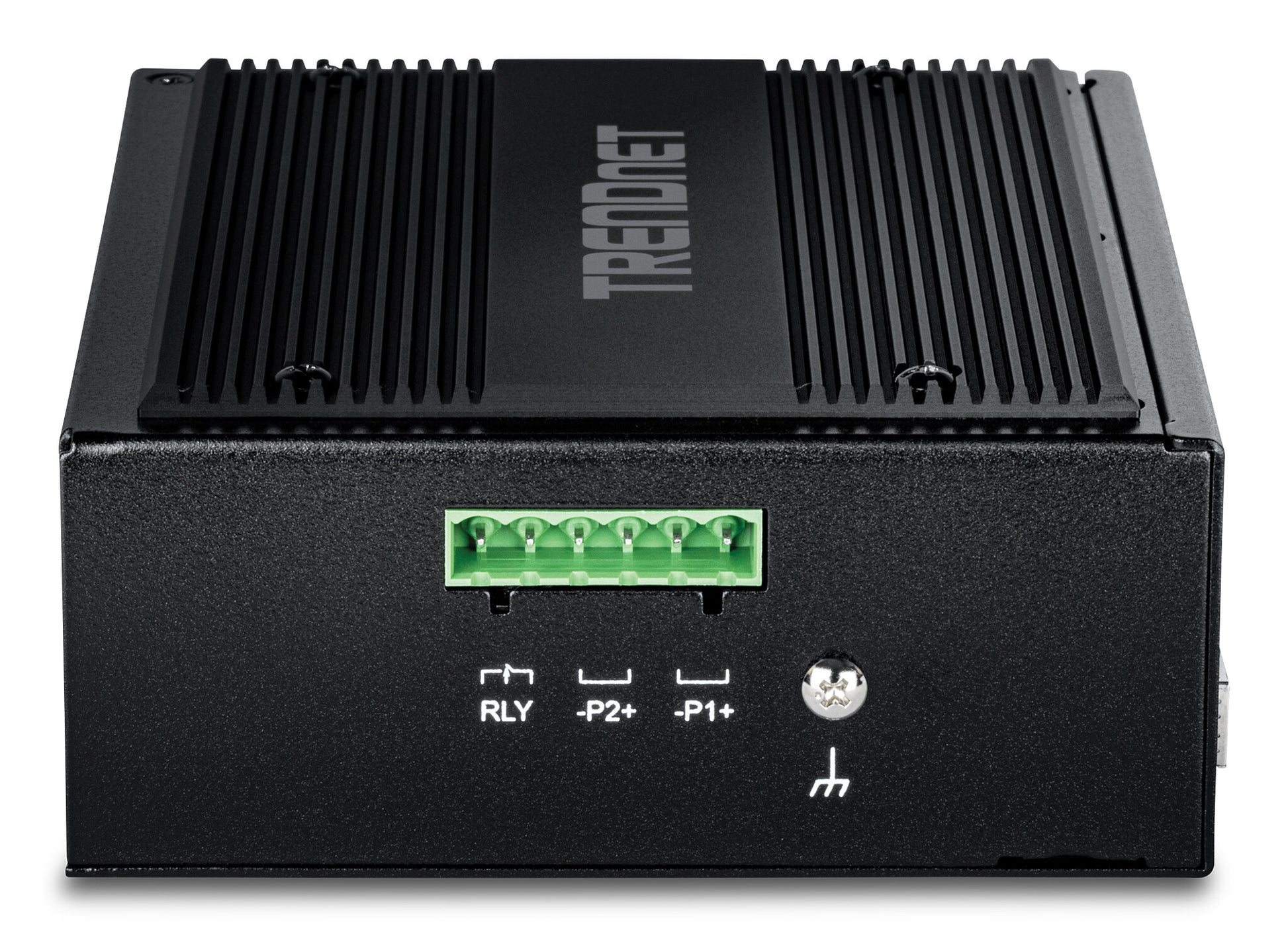

  • Dual power inputs for redundancy
  • Alarm output triggered by power failure
  • Power supply sold separately (TI-S48048, TI-S24052)
  • NDAA / TAA compliant (U.S. and Canada only)
10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch

TRENDnet's 10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch, model TI-BG108, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This hardened industrial PoE++ switch features copper gigabit PoE++ ports for high-powered device connections, and SFP ports that support 1000Base-FX modules for long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

Ports & interfaces
SFP+ module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
Auto-negotiation Yes
Half duplex Yes
Full duplex Yes
10G support No
Networking standards IEEE 802.2x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z
Data transmission
Packet buffer memory 0.4 MB
Jumbo frames 10000
Jumbo frames support Yes
Store-and-forward Yes
Forwarding rate 8.9 Mpps
Switching capacity 20 Gbit/s
MAC address table 11000 entries
Design
Certification CEFCC
Wall mountable Yes
DIN rail mounting Yes
International Protection (IP) code IP50
Housing material Metal
Product colour Black
Performance
Mean time between failures (MTBF) 515469 h
Power
Power consumption (max) 8.5 W
DC input voltage 48 - 56 V
Power source DC/PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 400 W
Power over Ethernet 4PPoE (PoE++) ports quantity 8
Power over Ethernet (PoE) type supported PoE++ (4PPoE)
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Weight & dimensions
Weight 602 g
Height 48 mm
Depth 122 mm
Width 156 mm
