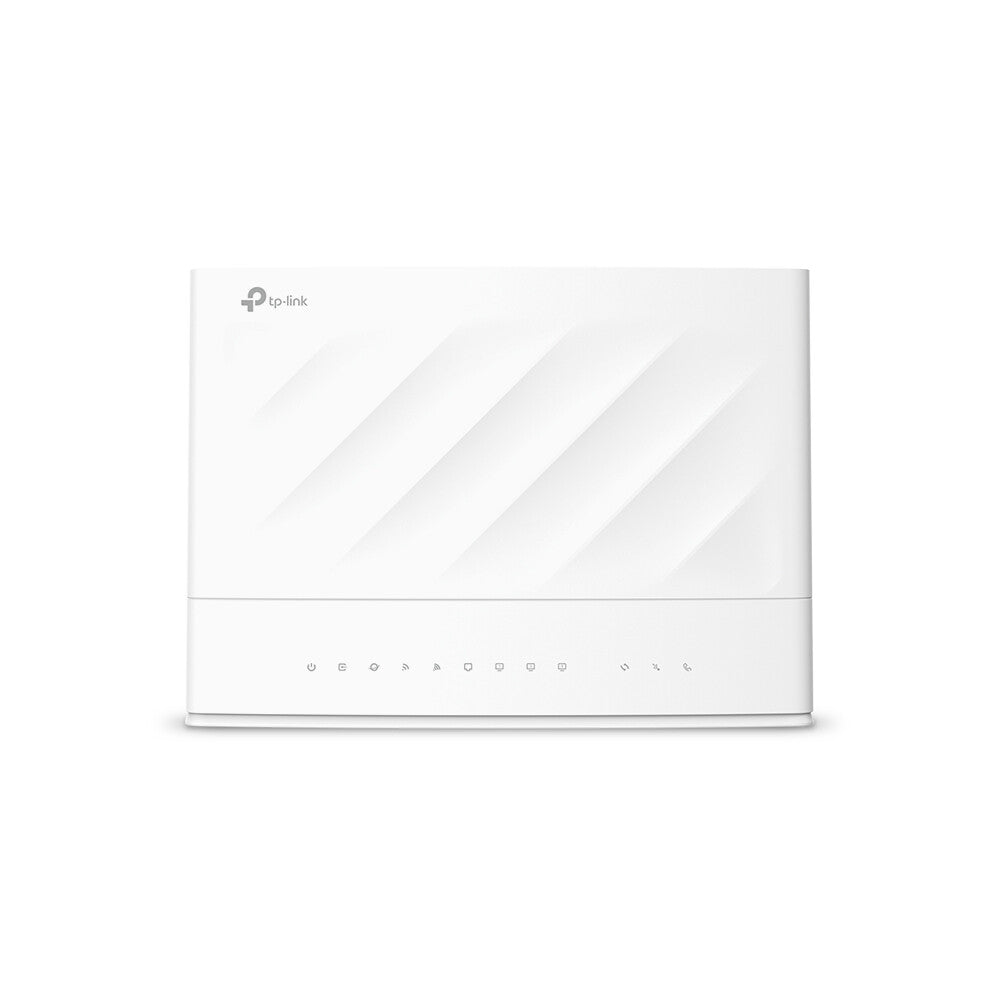

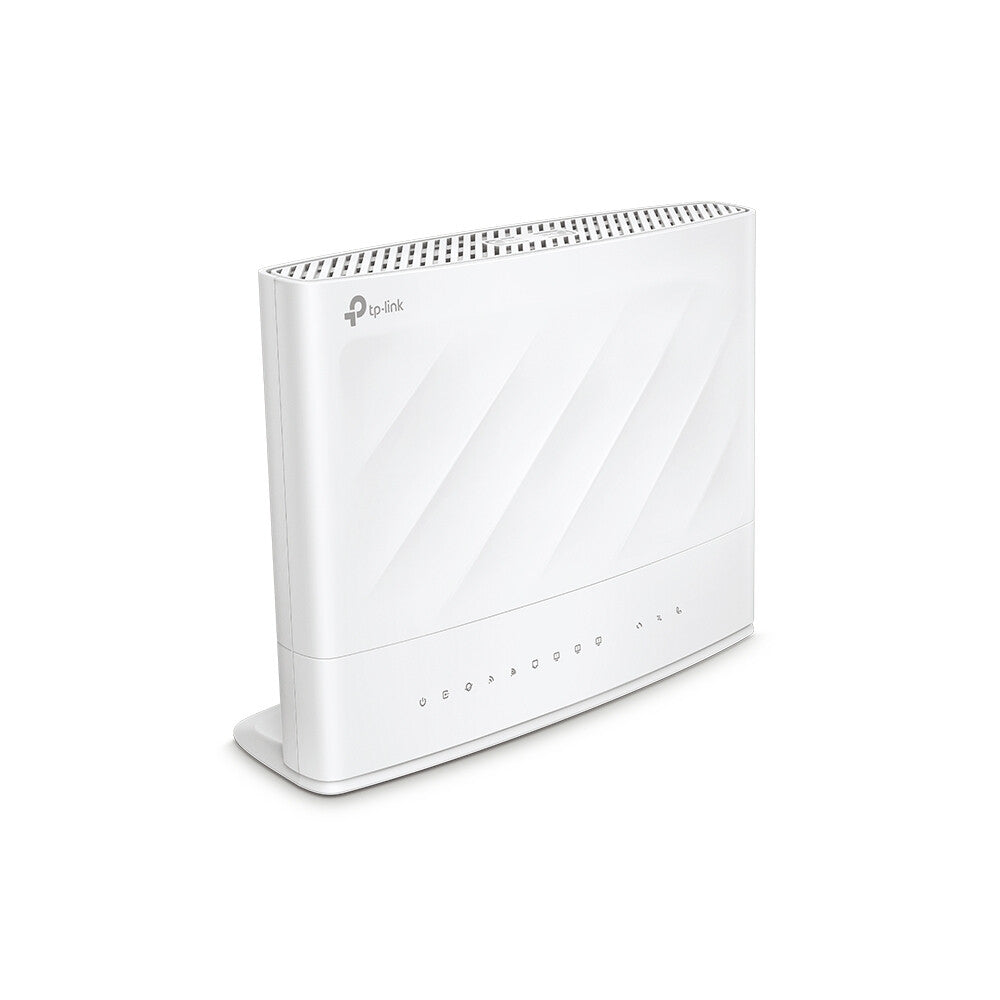

TP-Link VX230v wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem RouterSPEED: 574 Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, VDSL Profile 35b 350/60 MbpsSPEC: Internal Antennas, 1 x DSL Port, 1 x 10/100/1000Mbps WAN Port, 3 x 10/100/1000Mbps LAN Ports, 1 x FXS Port, 1 x USB2.0 Por

WAN connection
Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-11, RJ-45

Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Modulation	1024-QAM

Network
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Port triggering	Yes
Port forwarding	Yes
Dynamic DNS (DDNS)	Yes
Wireless radio	Yes
VPN tunnels quantity	16
VPN support	OpenVPN, PPTP VPN, IPSec VPN

DSL features
ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
VDSL2	Yes

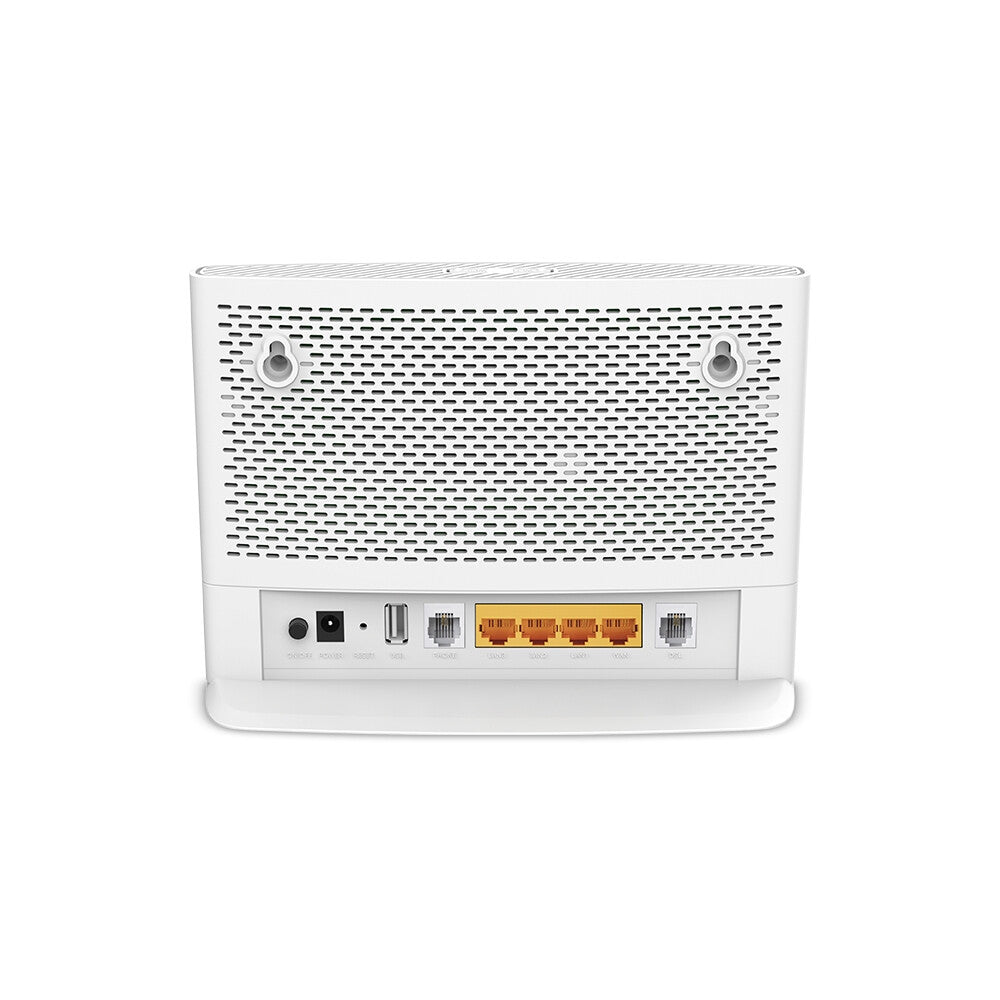

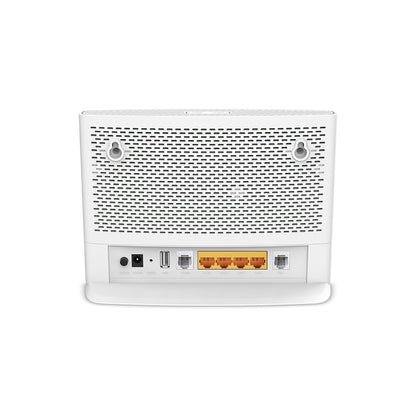

Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
RJ-11 ports quantity	2
DC-in jack	Yes

Management features
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes

Security
NAT functionality	NAT Forwarding

Protocols
DHCP client	Yes
DHCP server	Yes
Supported network protocols	IPv4, IPv6

Design
Product type	Tabletop router
Product colour	White
Wall mountable	Yes
Indication light	Yes
On/off switch	Yes

Packaging content
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Quick installation guide	Yes

Antenna
Antenna design	Internal

Power
Power source type	DC
Output voltage	12 V
Output current	2 A
External power adapter	Yes

Operational conditions
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C

System requirements
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Mac compatibility	Yes

Weight & dimensions
Height	67.5 mm
Depth	148.6 mm
Width	199.7 mm

Packaging data
Number of products included	1 pc(s)
