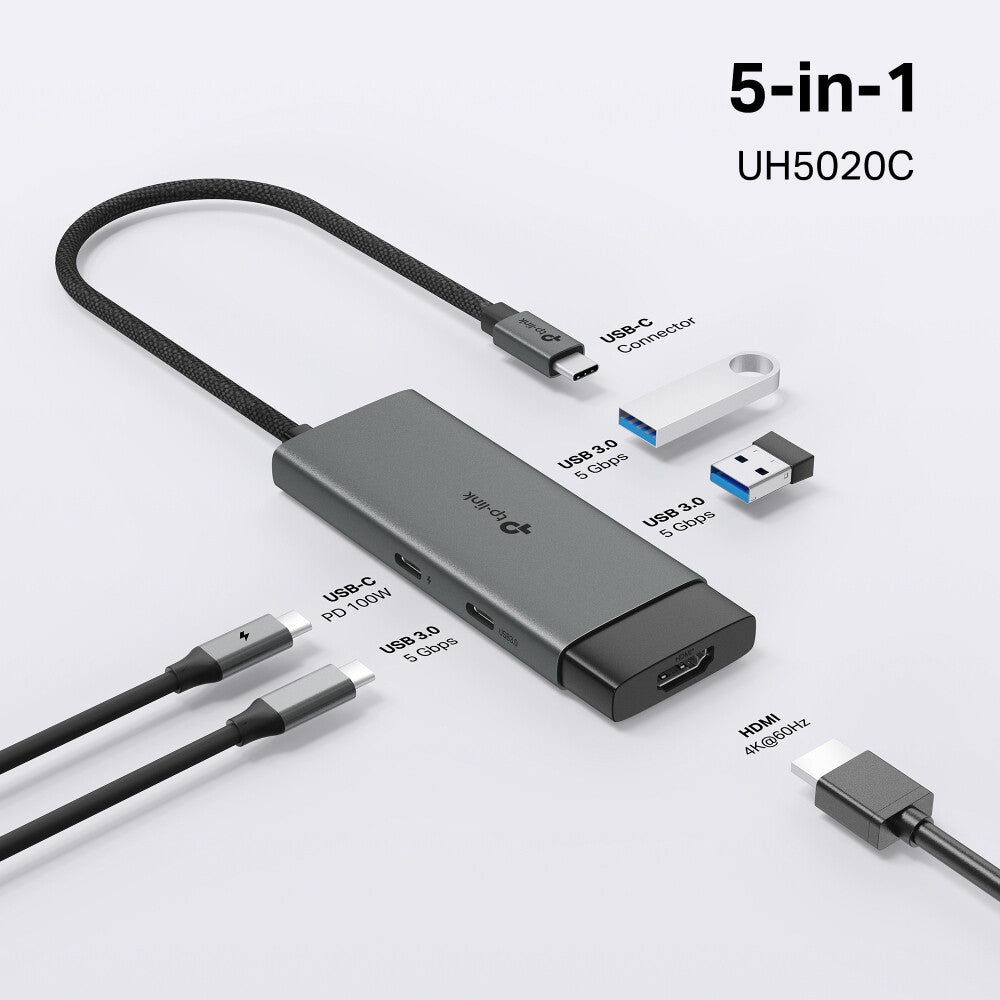

5 in 1 USB-C Hub UH5020C turns a single USB-C port into 5 ports with a 4K@60Hz HDMI, 100W Power Delivery, 1× USB-C Data Port, 2× USB-A Data Ports.

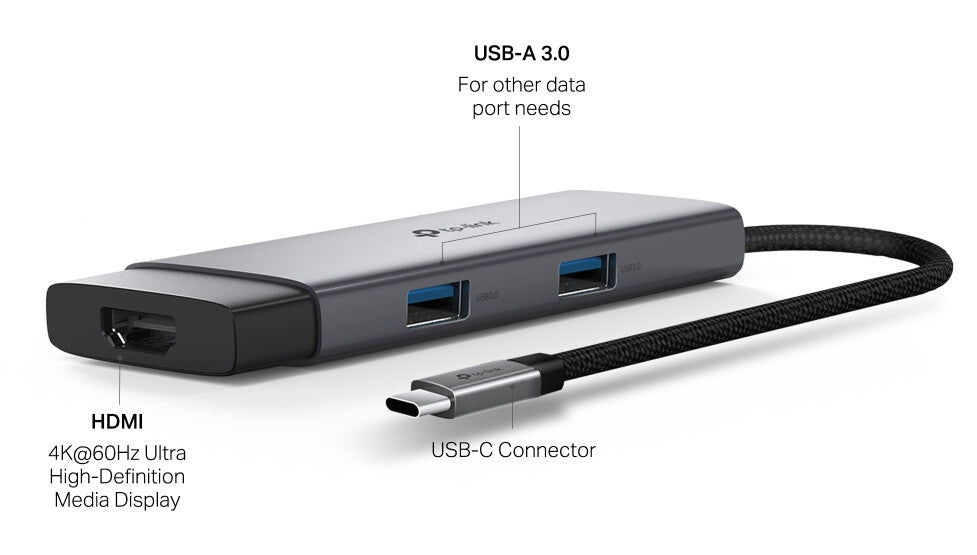

Ultra High-Definition Media Display Connect to an external monitor via the 4K@60Hz HDMI port for a stunning ultra high-definition experience.

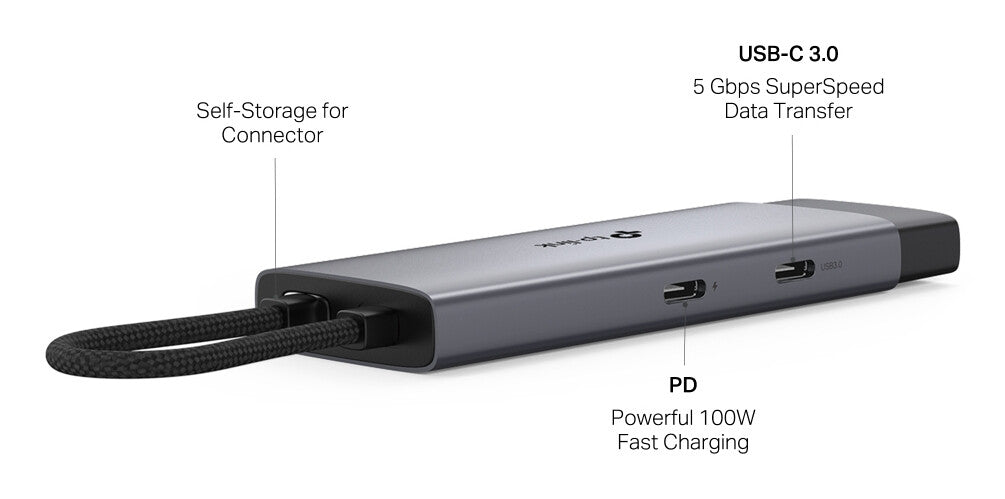

Powerful 100W Fast Charging Plug the charging cable into UH5020C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.
5 Gbps SuperSpeed Data Transfer UH5020C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.
Easy to Use with Plug & Play Simply plug in and start using in seconds, thanks to driver-free install with Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, Chrome OS, and Nintendo OS.

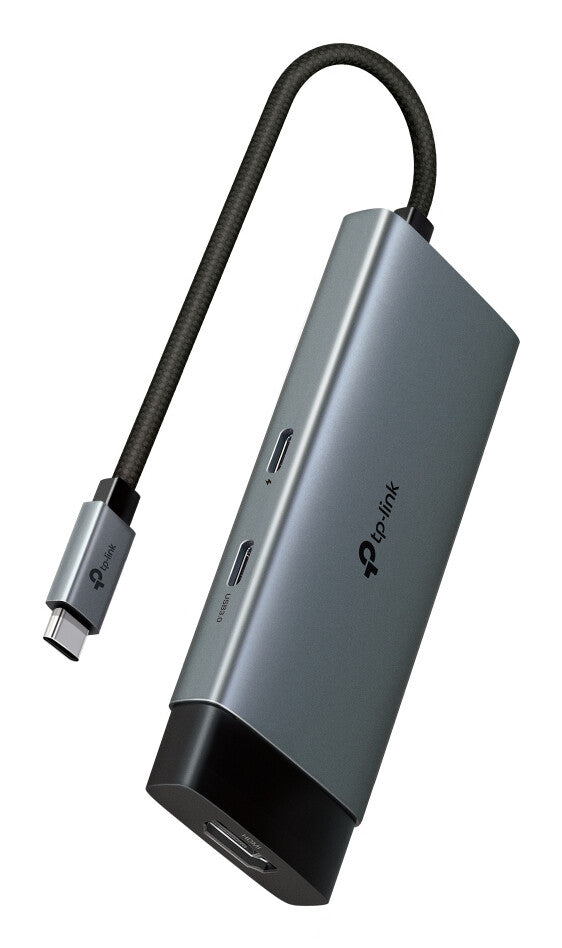

Compact and Elegant Design The self-storing design not only protects the connector, but also but also improves portability. Aluminum alloy case and braided cable make UH5020C more durable. Bring you a better user experience.
Ports & interfaces
Ports quantity
5
Host interface
USB Type-C
Hub interfaces
HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
HDMI ports quantity
1
Card reader integrated
No
DC-in jack
No
Features
Data transfer rate
5000 Mbit/s
Maximum refresh rate
60 Hz
Supported video modes
2160p
Maximum resolution (HDMI)
4096 x 2160 pixels
Housing material
Aluminium
Product colour
Grey
USB Power Delivery up to
100 W
USB Power Delivery
Yes
Fast charging
Yes
Cable type
Round cable
Cable length
0.18 m
Plug and Play
Yes
Certification
HDMI
Power
Power supply type
USB
System requirements
Windows operating systems supported
Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported
MacOS
Linux operating systems supported
Yes
Other operating systems supported
Android, ChromeOS, iOS, iPadOS
Compatible operating systems
Nintendo OS
Weight & dimensions
Width
108.2 mm
Depth
40 mm
Height
12.2 mm
Packaging data
Quantity per pack
1 pc(s)
Package type
Hanging box
Packaging content
Quick start guide
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Design
Cable colour
Black
Technical details
Compliance certificates
BSMI, CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
