TP-LINK

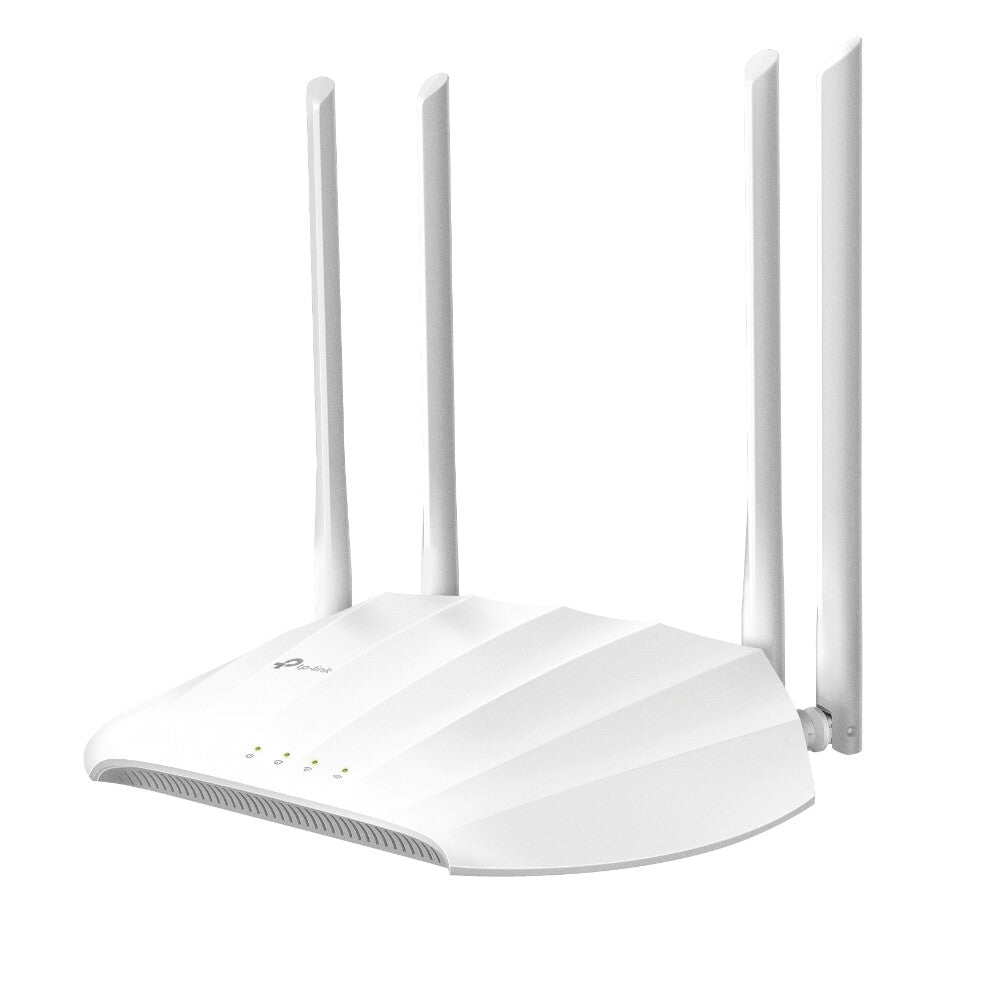

TP-Link TL-WA1201 wireless access point 867 Mbit/s White Power over Ethernet (PoE)

TP-Link TL-WA1201 wireless access point 867 Mbit/s White Power over Ethernet (PoE)

£60.48 GBP
£60.48 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TL-WA1201 V1

Low stock: 2 left

  • AC1200 Dual-Band Wi-Fi – Fast Wi-Fi 5 speed in both 5 GHz and 2.4 GHz
  • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously
  • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs
  • MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
  • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
  • Captive Portal – Offers a designed portal page for heightened security and marketing
AC1200 Wireless Access Point, AC1200 Dual-Band Wi-Fi, Multiple Modes,
Features
2.4 GHz Yes
6 GHz No
5 GHz Yes
Maximum data transfer rate 867 Mbit/s
Maximum data transfer rate (2.4 GHz) 300 Mbit/s
Maximum data transfer rate (5 GHz) 867 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO Yes
MIMO type Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME) Yes
VLAN support Yes
Virtual LAN features Multicast VLAN
Quality of Service (QoS) support Yes
Transmitting power (FCC) 30 dBm
Transmitting power (CE) 20 - 23 dBm
Security
Security algorithms 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features Multiple SSIDs
Auto Wireless Distribution System (WDS) Yes
Access Control List (ACL) Yes
Protocols
Universal Plug and Play (UPnP) Yes
DHCP server Yes
DHCP client Yes
IPv4 & IPv6 features Dual stack IPv4/IPv6

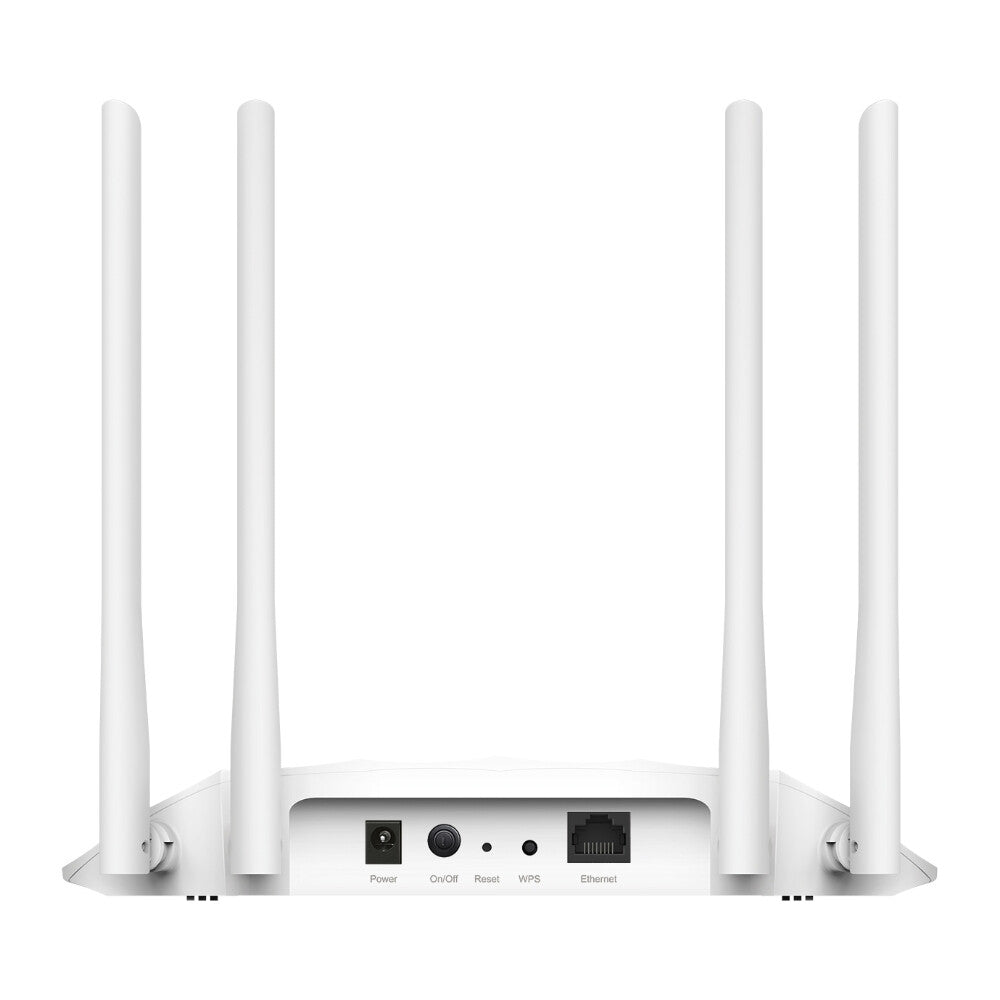

Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power over Ethernet (PoE) type supported Active PoE
Power over Ethernet (PoE) Yes
Output voltage 12 V
Output current 1.5 A
Design
Placement Table
Product colour White
On/off switch Yes
Reset button Yes
WPS push button Yes
Antenna
Antenna type External
Antennas quantity 4
Performance
Compatible operating systems Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or otherJava-enabled browser
Technical details
Compliance certificates RoHS, Federal Communications Commission (FCC), CE
Weight & dimensions
Width 225 mm
Depth 145.5 mm
Height 37 mm
Packaging data
Package width 400 mm
Package depth 255 mm
Package height 69 mm
Package weight 860 g
Packaging content
AC adapter included Yes
PoE adapter included Yes
Cables included LAN (RJ-45)
Quick start guide Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 10 - 90%
Sustainability
Sustainability compliance Yes
Logistics data
Quantity per pack 1 pc(s)
