• TP-Link TL-SF1005D network switch, Managed, 5-port, white
1 3

TP-LINK

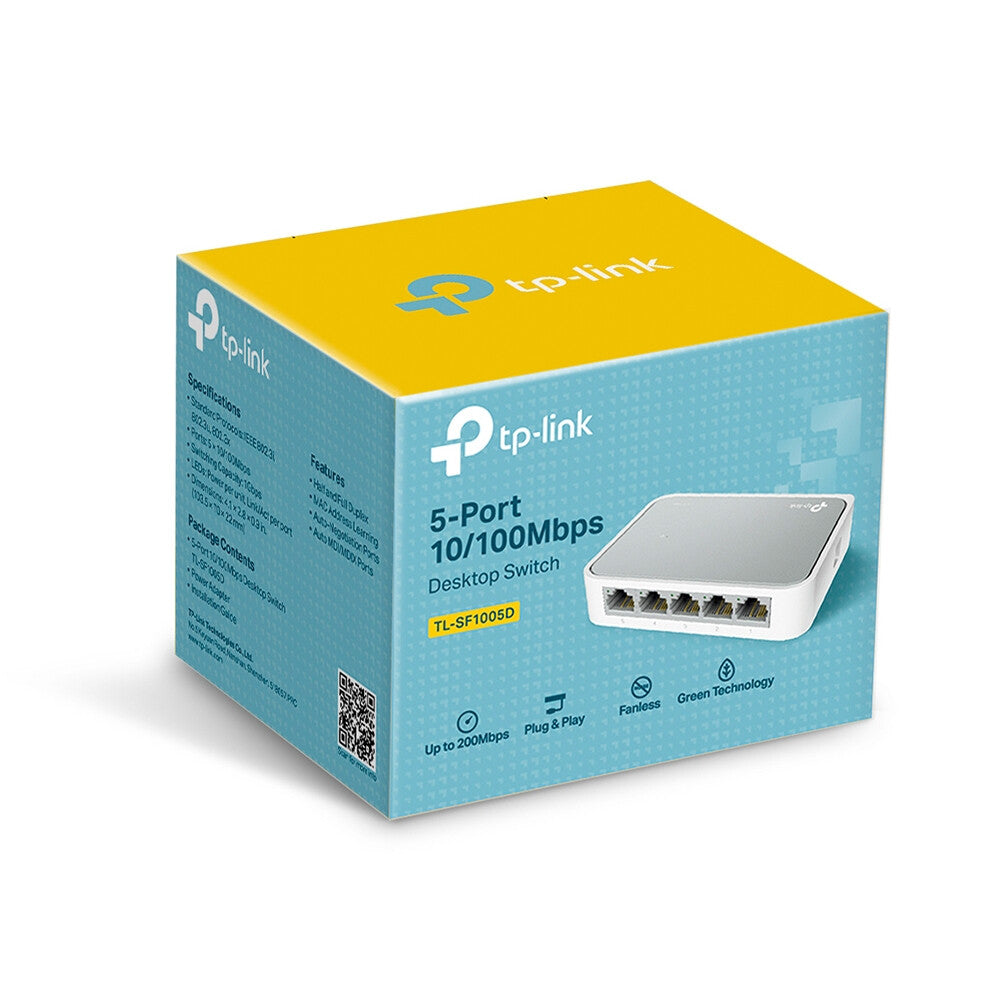

TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White

TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White

TL-SF1005D V1

£12.48 GBP£10.40 GBP
£0.00 GBP £12.48 GBP£10.40 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

17 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Managed Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • 10BASE-T, 100BASE-T
  • MAC address table: 1000 entries Switching capacity: 1.6 Gbit/s
  • DC
TL-SF1005D V15, 5 x 10/100Mbps, Auto Negotiation, Auto MDI/MDIX, white

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.

High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

Management features
Switch type Managed
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity 5
Power connector DC-in jack
Network
Networking standards IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-T
Full duplex Yes
Ethernet LAN data rates 10,100 Mbit/s
Spanning tree protocol Yes
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 1000 entries
Switching capacity 1.6 Gbit/s
Store-and-forward Yes
Protocols
Supported network protocols CSMA/CD, TCP/IP
Design
Rack mounting No
Product colour White
LED indicators Yes
Certification FCC, RoHs
Performance
Fanless Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Power
Power source DC
Power supply included No
AC input voltage 220 V
AC input frequency 50 Hz
DC input voltage 5 V
Input current 0.6 A
Power consumption (typical) 1.87 W
Power consumption (max) 1.87 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 6.38 BTU/h
Weight & dimensions
Width 103.5 mm
Depth 70 mm
Height 22 mm
Sustainability
Sustainability compliance Yes
Packaging data
Cables included AC
Package type Box
AC adapter included Yes
User guide Yes
Package width 91 mm
Package depth 108 mm
Package height 85 mm
Package weight 200 g
