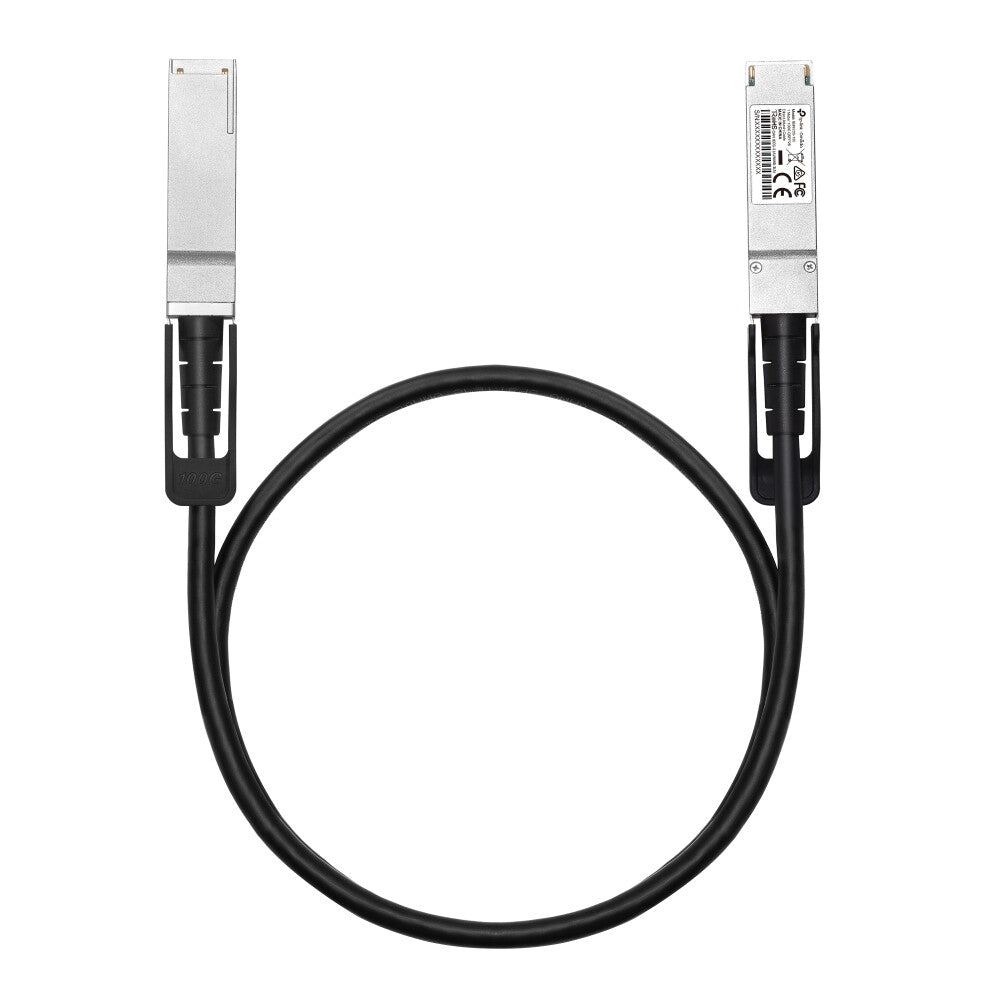

    TP-Link Omada SM9220-1M InfiniBand/fibre optic cable QSFP28 Twinax Black

    TP-Link Omada SM9220-1M InfiniBand/fibre optic cable QSFP28 Twinax Black

    £56.81 GBP
    £56.81 GBP
    Sale Sold out
    Tax included. Shipping calculated at checkout.

    SM9220-1M

    14 in stock

    • 100 Gbps data transmission
    • QSFP28 connector on both sides
    • Up to 1 m transmission distance
    • Wide operating temperature
    • Hot Swappable
    Omada 1 Meter 100G QSFP28 Direct Attach Cable, 30AWG, 33 mm Bend Radius, Black

    SM9220-1M is a passive Direct Attach Cable. With a passive Twinax cable assembly of 1 meter and two QSFP28 connectors on each side, SM9220-1M is suitable for short distance transmission of extreme-high speed data (100 Gbps) and offers a cost-effective way to connect within racks and across adjacent racks.

    Features
    Cable length 1 m
    Cable type Twinax
    AWG wire size 30
    Cable shape Round
    Connector 1 QSFP28
    Connector 2 QSFP28
    Connector 2 gender Male
    Connector 1 gender Male
    Product colour Black
    Ethernet interface type 40 Gigabit Ethernet, 100 Gigabit Ethernet
    Data transfer rate 100 Gbit/s
    Jacket material Optical fiber non-conductive riser (OFNR), Polyvinyl chloride (PVC)
    Conductor material Copper
    Plug and Play Yes
    general_information_attribute_container_name
    attribute_product_family_name Omada
    Technical details
    Compliance certificates CE, Federal Communications Commission (FCC)
    Operational conditions
    Operating temperature (T-T) 0 - 70 °C
    Storage temperature (T-T) -40 - 85 °C
    Weight & dimensions
    Bending radius 3.3 cm
    Packaging data
    Quantity per pack 1 pc(s)
    Other features
    Networking standards IEEE 802.3, IEEE 802.3ba, IEEE 802.3bj
