TP-LINK

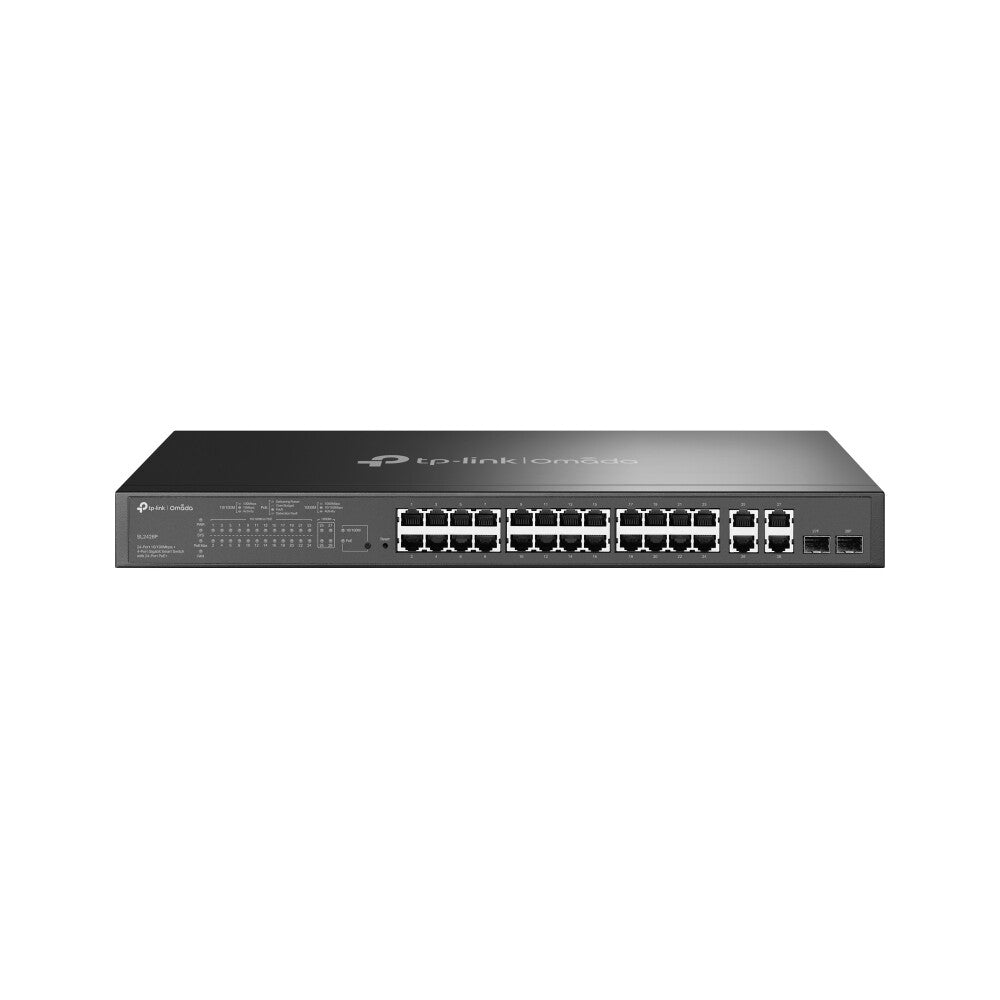

TP-Link Omada SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

TP-Link Omada SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

£237.37 GBP
£237.37 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SL2428P

13 in stock

  • 24× 10/100 Mbps 802.3af/at PoE+ ports with up to 30 W PoE output per port
  • 2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP ports
  • 250 W total PoE budget
  • Centralized cloud management via the web or the Omada app
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Durable metal casing and rackmountable design
24× 10/100 Mbps RJ45, 2× 10/100/1000Mbps RJ45, 2× Gigabit Combo RJ45/SFP, 12.8 Gbps, 8K MAC, 9 KB Jumbo, 440×180×44

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Management features
System event log Yes
Configuring Location Settings (CLI) Yes
ARP inspection Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Combo SFP ports quantity 2
Gigabit Ethernet (copper) ports quantity 4
Fast Ethernet (copper) ports quantity 24
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Number of VLANs 512
VLAN support Yes
Rate limiting Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Broadcast storm control Yes
Link aggregation Yes
Spanning tree protocol Yes
Port mirroring Yes
Cable types supported Cat5, Cat5e
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
10G support No
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory 4.1 MB
Jumbo frames 9000
Jumbo frames support Yes
Number of queues 4
Throughput 9.5 Mpps
Switching capacity 12.8 Gbit/s
MAC address table 8000 entries
Security
SSH/SSL support Yes
Security algorithms SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
IGMP snooping Yes
Access Control List (ACL) Yes
Multicast features
Multicast support Yes
Protocols
Management protocols SNMP v1/v2c/v3, RMON, SNTP, TFTP
Design
Certification CE, FCC, RoHS
Number of fans 2 fan(s)
Product colour Black
Form factor 1U
Rack mounting Yes
general_information_attribute_container_name
attribute_product_family_name Omada
Performance
Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Firmware upgradeable Yes
Power
Power consumption (max) 291.6 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 250 W
Power over Ethernet plus (PoE+) ports quantity 24
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 995.09 BTU/h
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 44 mm
Depth 180 mm
Width 440 mm
Packaging data
Rack mount kit Yes
Quick start guide Yes
Cables included AC
