TP-LINK

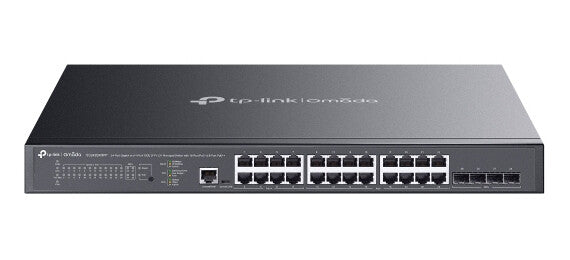

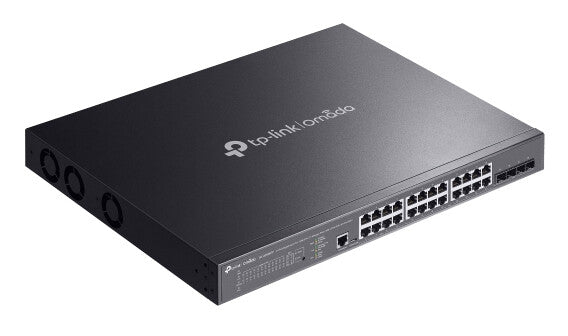

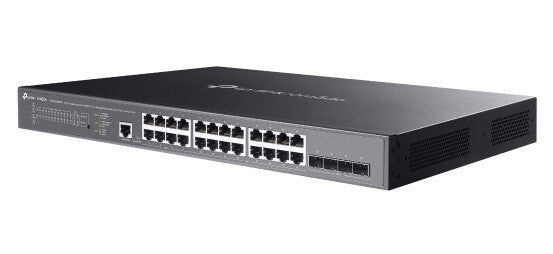

TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

£509.20 GBP
£509.20 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SG3428XMPP

Low stock: 1 left

  • 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
  • 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
  • 500 W total PoE budget*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design
Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

Empowering the High-Power Devices with Gigabit PoE++ Ports

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Management features
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
Configuring Location Settings (CLI) Yes
ARP inspection Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Console port RJ-45/Micro-USB
Power connector AC-in jack
Network
Networking standards IEEE 802.3af, IEEE 802.3at
10G support Yes
Port mirroring Yes
Head-of-line (HOL) blocking Yes
Rate limiting Yes
Spanning tree protocol Yes
Link aggregation Yes
Broadcast storm control Yes
Flow control support Yes
VLAN support Yes
Data transmission
MAC address table 16000 entries
Switching capacity 128 Gbit/s
Forwarding rate 95.23 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 12 MB
Security
DHCP features DHCP client, DHCP relay, DHCP server
Access Control List (ACL) Yes
IGMP snooping Yes
IP-MAC-Port binding Yes
Static port security Yes
BPDU filtering/protection Yes
Authentication Auto VLAN, Guest VLAN
SSH/SSL support Yes
MAC address filtering Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Form factor 1U
Product colour Black
Reset button Yes
LED indicators Yes
Number of fans 3 fan(s)
Certification CE, FCC, RoHS
general_information_attribute_container_name
attribute_product_family_name Omada
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 486.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 16
Power over Ethernet 4PPoE (PoE++) ports quantity 8
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 500 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 1658.78 BTU/h
Weight & dimensions
Width 440 mm
Depth 330 mm
Height 44 mm
Packaging data
Cables included AC
Quick start guide Yes
