TP-LINK

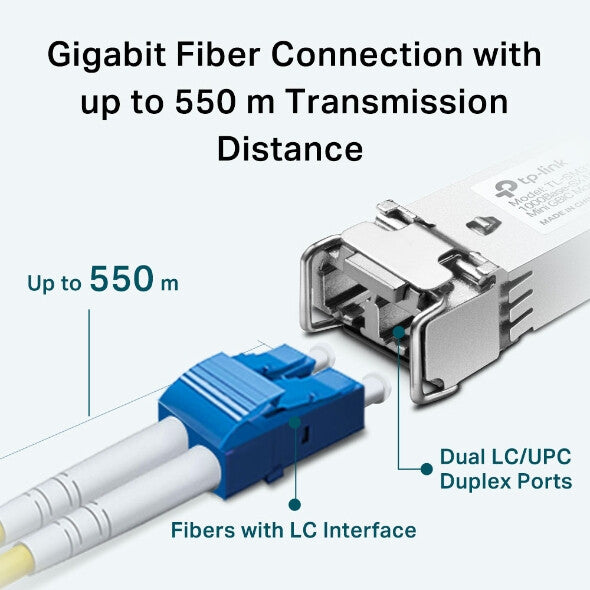

TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm
TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm
SKU:TL-SM311LM
100 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Multi-mode MiniGBIC module
- Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L
What This Product Does
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Features | |
|---|---|
| Product colour | Metallic |
| Certification | FCC, CE |
| Power | |
|---|---|
| Input voltage | 3.3 V |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | Omada |
| Operational conditions | |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 55.4 mm |
| Depth | 13.7 mm |
| Height | 12.9 mm |
| Packaging data | |
|---|---|
| User guide | Yes |
| Package width | 38 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
