TP-Link Omada Hardware Controller

TP-Link Omada Hardware Controller

£358.70 GBP
£358.70 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

OC300

Low stock: 4 left

  • Centralized Management: Supports up to 500 Omada access points, 100 Omada routers, a maximum of 100 Omada switches, and a maximum of 5 certain DeltaStream GPON OLTs†
  • Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime
  • On-Premises Management: Locally monitor and manage devices with the ultimate security and stability
  • Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 3.0 port for auto backup, and two Gigabit ports
  • Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution
  • Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance
  • Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance
2x 10/100/1000 Mbps RJ45, 1x USB 3.0, 294x180x44 mm

Hybrid Cloud Management for Maximum Convenience
Supports remotely or locally centralized management for up to 500 Omada access points, 100 Omada gateways, a maximum of 100 Omada switches, and a maximum of 5 certain DeltaStream GPON OLTs*.

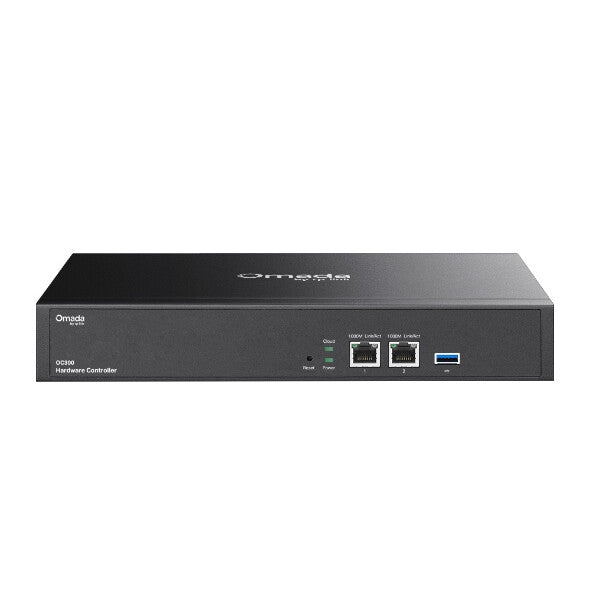

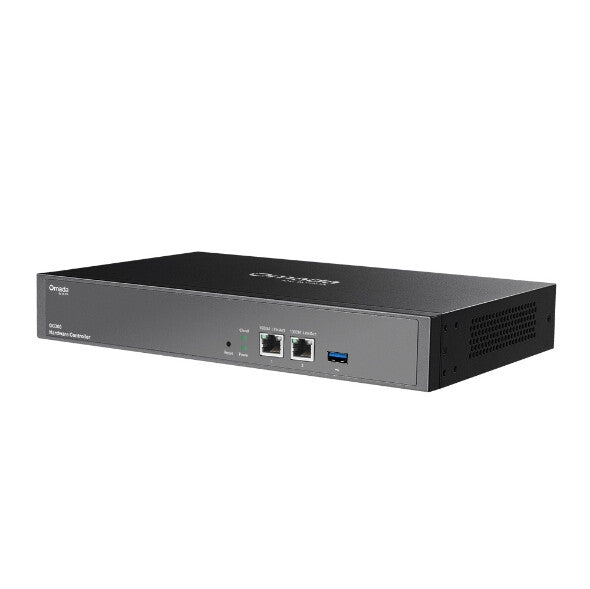

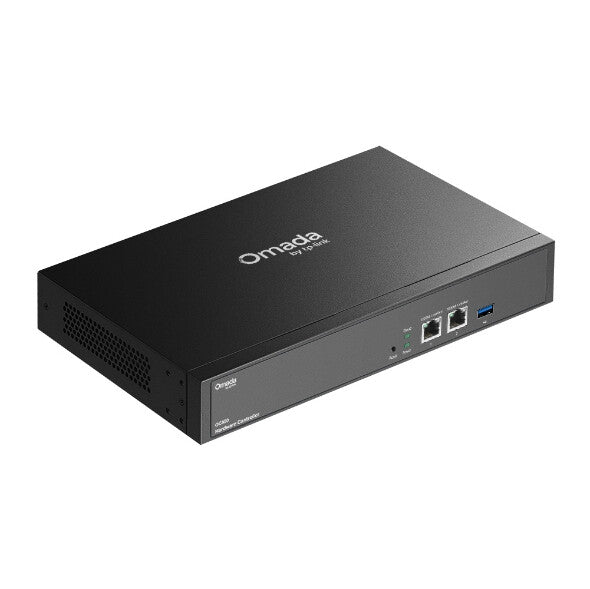

Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, the Omada OC300 delivers more than enough processing power to support massive network management—while its enterprise-grade reliability ensures uninterrupted, 24/7 operation under heavy loads. Rackmount/desktop design benefits easier and flexible installation.

Design
Product colour Black
Rack capacity 1U
LED indicators Yes
Certification CE, FCC, RoHS
Performance
Control display unit No
Processor family ARM Cortex
Processor manufacturer ARM
Built-in processor Yes
Number of processors installed 1
Internal memory type DDR4
Internal memory 2000 MB
Flash memory 2 MB
Protocols
Supported protocols Routing/NAT/Session Limit/Bandwidth Control
VPN (IPSec/L2TP/PPTP/OpenVPN)
RADIUS (Authentication/MAC Auth/Accounting)
802.1x
Network
Ethernet LAN data rates 10,100,1000 Mbit/s
VPN support VPN (IPSec/L2TP/PPTP/OpenVPN)
Security
Access Control List (ACL) Yes
MAC address filtering Yes
Security algorithms SNMP, SSH
Network address translation (NAT) Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Ethernet LAN (RJ-45) ports 2
Management features
Traffic statistics Yes
Syslog Yes
Web-based management Yes
Power
Power consumption (max) 14.8 W
Power consumption (typical) 9 W
Input voltage 100 - 240 V
Input frequency 50/60 Hz
Weight & dimensions
Height 44 mm
Depth 180 mm
Width 294 mm
Packaging content
Quick installation guide Yes
Cables included LAN (RJ-45)
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
general_information_attribute_container_name
attribute_product_family_name Omada
