TP-Link Omada Gigabit Single-Mode WDM Bi-Directional SFP Module

TP-Link Omada Gigabit Single-Mode WDM Bi-Directional SFP Module

£22.08 GBP
£22.08 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

TL-SM321A-2

Low stock: 2 left

  • WDM Bi-Directional SFP Module
  • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
  • Paired with TL-SM321B or CM112CM
  • Compatible with T3700 series, T2700 series, T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L
Gigabit Single-Mode WDM Bi-Directional SFP Module

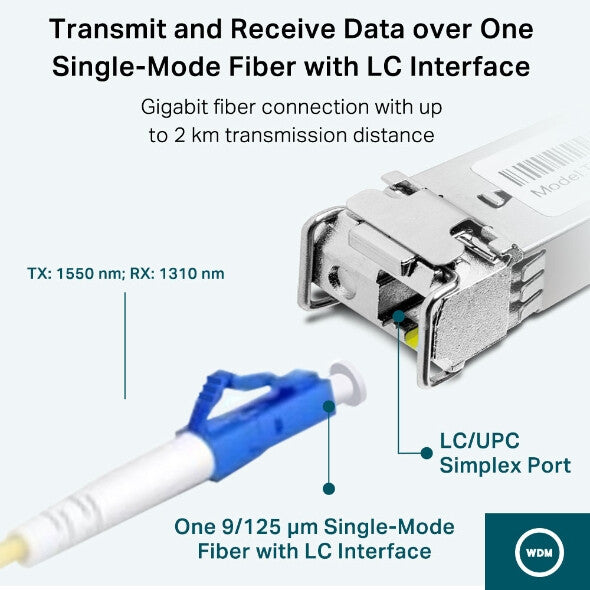

TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km (6.2 miles) paired with TP-LINK TL-SM321A, MC112CS, or compatible third-party WDM module.

Performance
SFP transceiver type Fiber optic
Maximum data transfer rate 1250 Mbit/s
Interface type SFP
Single-mode fiber (SMF) supported Yes
Multi-mode fiber (MMF) supported No
Fiber optic connector LC (UPC)
Fiber cable diameters supported (core/cladding) 9/125 µm
SFP transceiver standard BX
Maximum transfer distance 1000 m
Tx wavelength (max) 1550 nm
Rx wavelength (max) 1310 nm
Networking standards IEEE 802.3z
Fiber ethernet cabling technology 1000BASE
Wavelength-division multiplexing (WDM) Yes
Features
Product colour Metallic
Hot-swap Yes
Certification CE, FCC
Power
Input voltage 3.3 V
general_information_attribute_container_name
attribute_product_family_name Omada
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 80 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Packaging data
Package width 81.5 mm
Package depth 122.5 mm
Package height 38.5 mm
Package weight 60 g
Technical details
Compliance certificates RoHS
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85369010
