1 5

TP-LINK

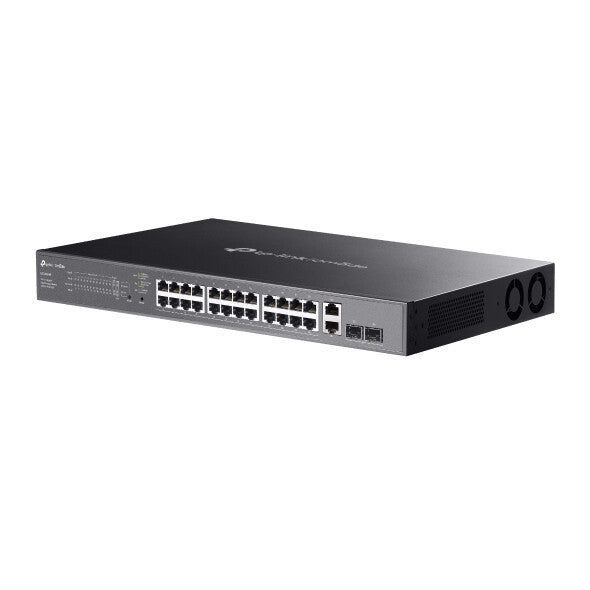

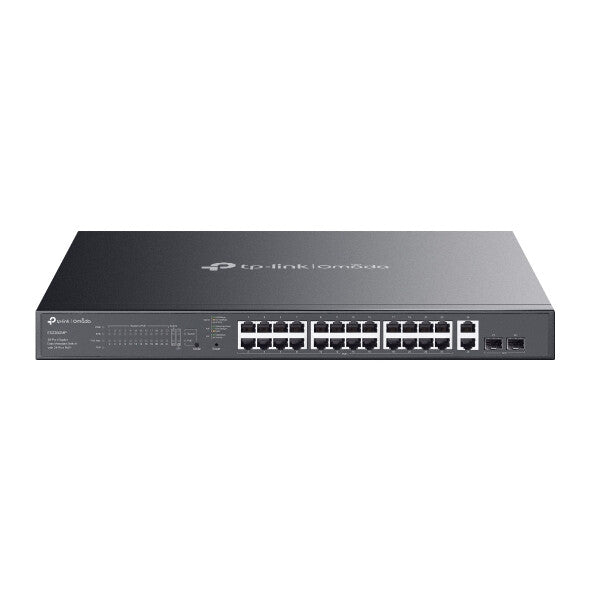

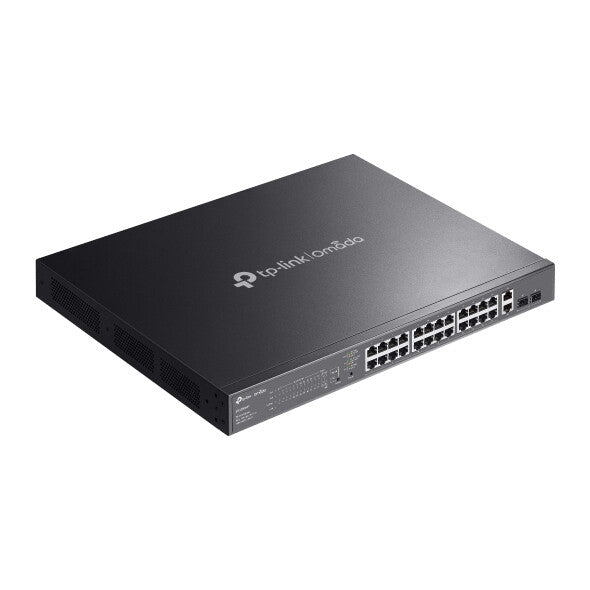

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

£258.80 GBP
£258.80 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ES228GMP

Low stock: 3 left

  • 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
  • 2× Gigabit SFP port
  • 384W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack-mountable design
ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
Unified static configuration Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 26
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 26
SFP module slots quantity 2
Network
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Port mirroring Yes
Fast leave Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Link aggregation Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs 32
Data transmission
MAC address table 8000 entries
Switching capacity 56 Gbit/s
Forwarding rate 41.66 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 15000
Packet buffer memory 4 MB
Security
DHCP features DHCP client
IGMP snooping Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Product colour Black
Housing material Metal
LED indicators Yes
Number of fans 2 fan(s)
Certification FCC, CE, RoHS
general_information_attribute_container_name
attribute_product_family_name Omada
Performance
Flash memory 64 MB
Noise level 46.2 dB
Firmware upgradeable Yes
Fanless No
Mean time between failures (MTBF) 224143 h
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 454.8 W
Surge protection Yes
Surge protection voltage 6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+
Power over Ethernet plus (PoE+) ports quantity 24
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 384 W
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 1546.15 BTU/h
Weight & dimensions
Width 440 mm
Depth 330 mm
Height 44 mm
Packaging data
Cables included AC
Quick start guide Yes
Manual Yes
Rack mount kit Yes
