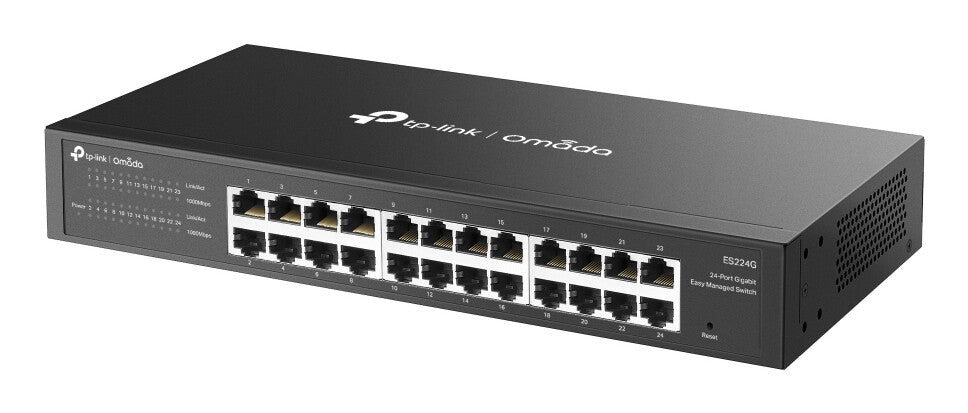

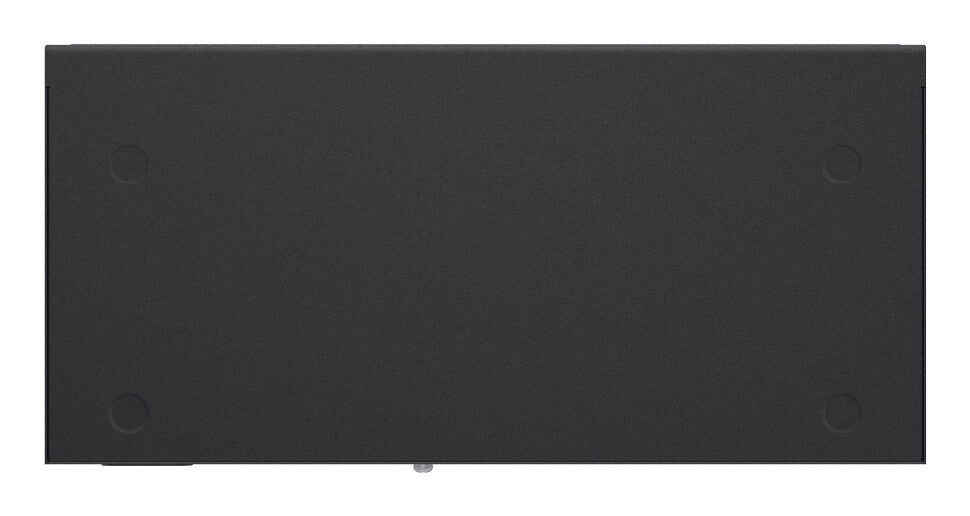

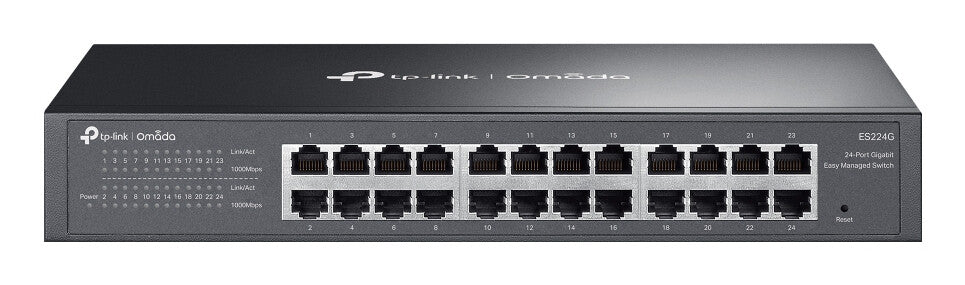

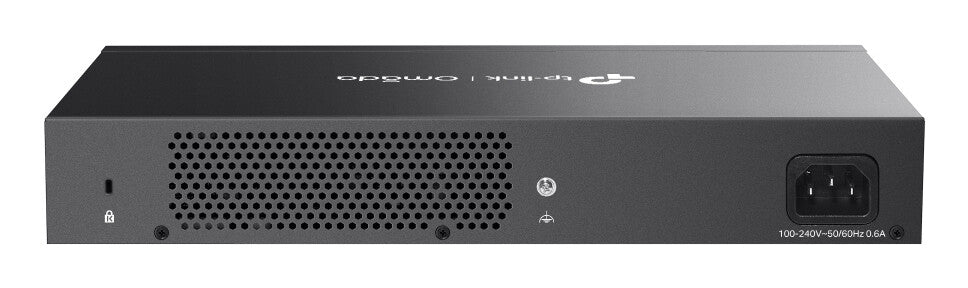

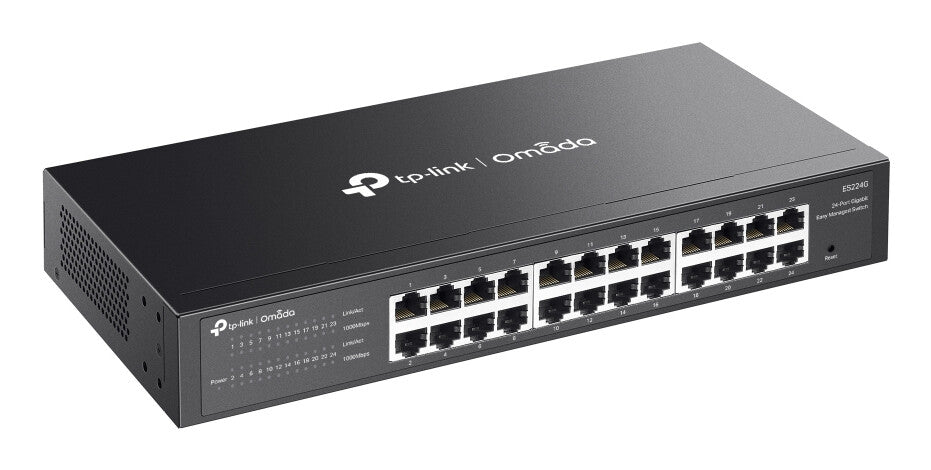

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

£123.82 GBP
£123.82 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ES224G

Low stock: 4 left

  • 24× 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
  • Automatic Loop Prevention and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/rack mounting design
ES224G Omada 24-Port Gigabit Easy Managed Switch

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Management features
Unified static configuration Yes
Cloud-managed Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Gigabit Ethernet (copper) ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Number of VLANs 32
Virtual LAN features MTU VLAN, Port-based VLAN
VLAN support Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Fast leave Yes
Broadcast storm control Yes
Auto-negotiation Yes
Link aggregation Yes
Port mirroring Yes
Data transmission
Packet buffer memory 4 MB
Jumbo frames 15000
Jumbo frames support Yes
Store-and-forward Yes
Forwarding rate 35.7 Mpps
Switching capacity 48 Gbit/s
MAC address table 8000 entries
Security
Queue scheduling algorithms Weighted Round Robin (WRR)
IGMP snooping Yes
DHCP features DHCP client
Multicast features
Multicast support Yes
Design
Product colour Black
Rack mounting Yes
general_information_attribute_container_name
attribute_product_family_name Omada
Performance
Fanless Yes
Firmware upgradeable Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Power
Surge protection voltage 6 kV
Surge protection Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -5 - 50 °C
Weight & dimensions
Height 44 mm
Depth 140 mm
Width 294 mm
Packaging data
Rack mount kit No
User guide Yes
Cables included AC
