1 5

TP-LINK

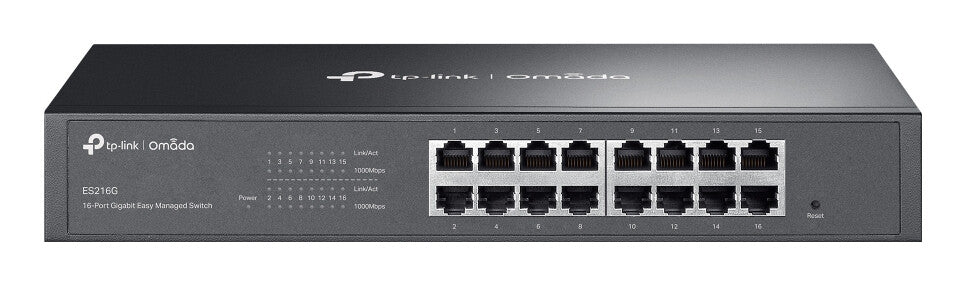

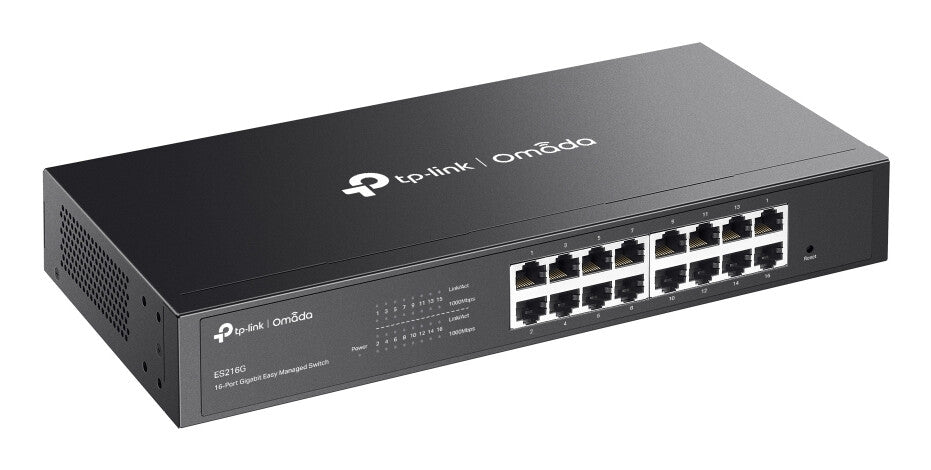

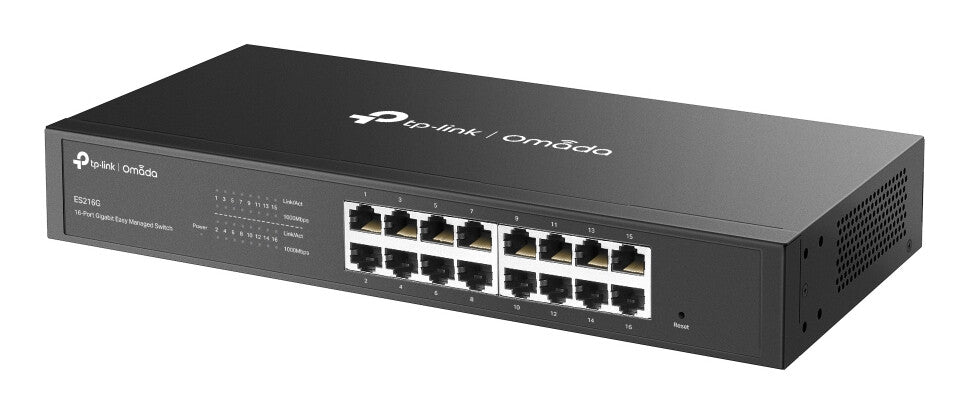

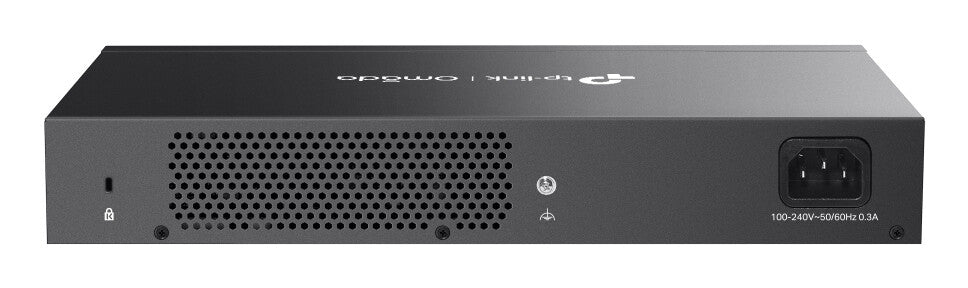

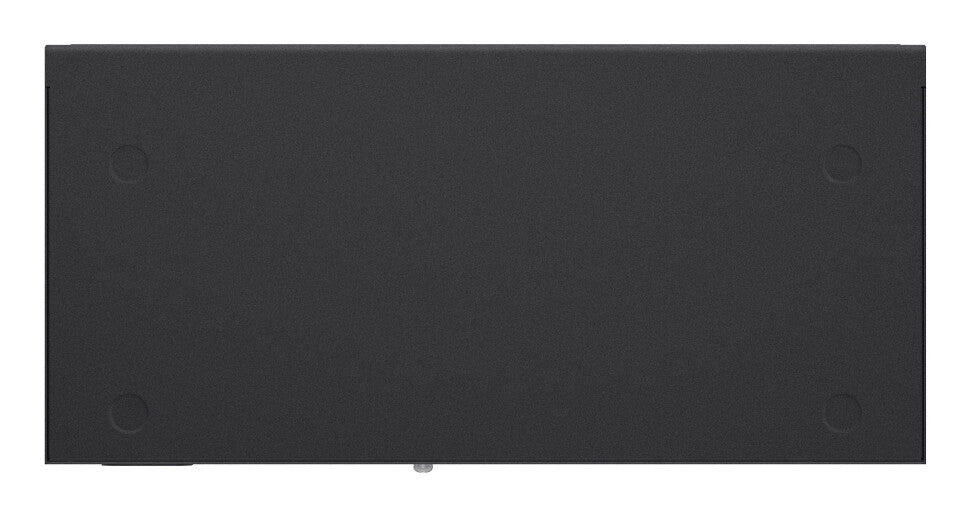

TP-Link Omada ES216G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

TP-Link Omada ES216G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

£103.24 GBP
£103.24 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ES216G

Low stock: 8 left

  • 16× 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
  • Automatic Loop Prevention and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/rack mounting design
Omada 16-Port Gigabit Easy Managed Switch

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
Unified static configuration Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 16
Power connector AC-in jack
Network
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
10G support No
Zero Touch Provisioning (ZTP) Yes
Port mirroring Yes
Fast leave Yes
Link aggregation Yes
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs 32
Data transmission
MAC address table 8000 entries
Switching capacity 32 Gbit/s
Forwarding rate 23.8 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 15000
Packet buffer memory 4 MB
Security
DHCP features DHCP client
IGMP snooping Yes
Loop protection Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Design
Rack mounting Yes
Product colour Black
LED indicators Yes
general_information_attribute_container_name
attribute_product_family_name Omada
Performance
Flash memory 64 MB
Firmware upgradeable Yes
Fanless Yes
Mean time between failures (MTBF) 2131140 h
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 8.4 W
Surge protection Yes
Surge protection voltage 6 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -5 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 28.52 BTU/h
Weight & dimensions
Width 294 mm
Depth 140 mm
Height 44 mm
Packaging data
Cables included AC
Rack mount kit Yes
Package type Box
User guide Yes
View full details
