Omada
Regular price
£186.98 GBP
Regular price
Sale price
£186.98 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:EAP683 UR
Low stock: 4 left
- 2.4 GHz 1148 Mbit/s
- 5 GHz 4804 Mbit/s
- Maximum data transfer rate: 6000 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
- HTTPS, SNMP, SNMPv2, SNMPv3, SSH
- Power over Ethernet (PoE)
- Internal

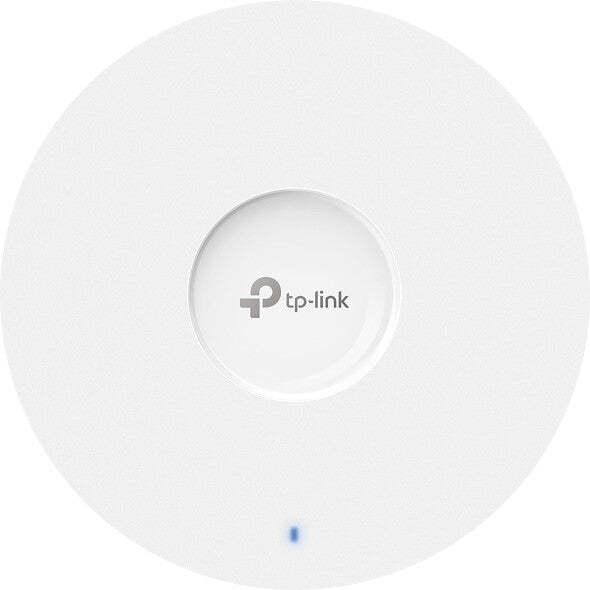

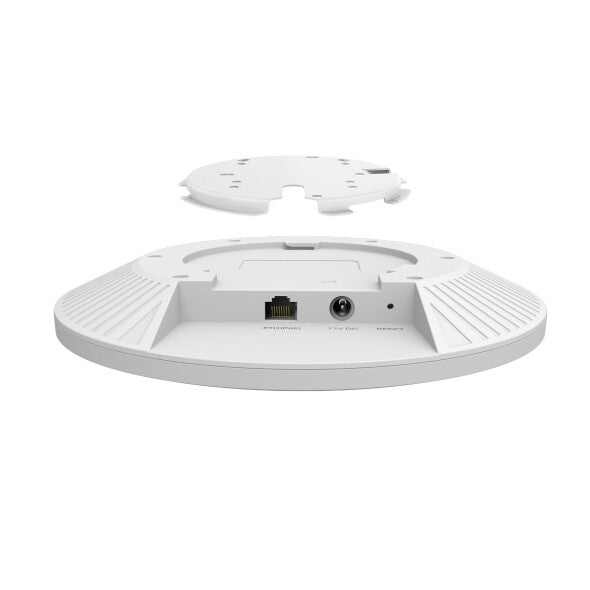

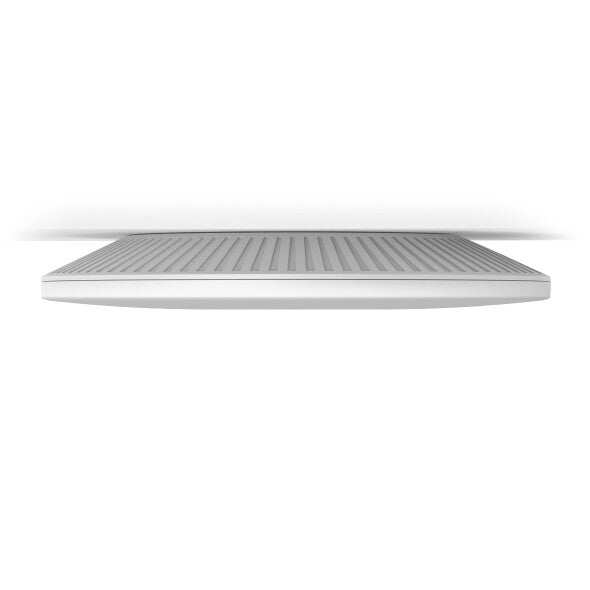

Omada AX6000 Ceiling Mount WiFi 6 EAP683 UR
| Features |
|---|
| 2.4 GHz |
Yes |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
6000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
1148 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4804 Mbit/s |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Frequency band |
2.4 - 6 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Number of users |
510 user(s) |
| Automatic channel scanning |
Yes |
| Automatic channel selection |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Fast roaming |
Yes |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Quality of Service (QoS) support |
Yes |
| BeamForming |
Yes |
| Security |
|---|
| Security algorithms |
HTTPS, SNMP, SNMPv2, SNMPv3, SSH |
| MAC address filtering |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Access Control List (ACL) |
Yes |
| Management features |
|---|
| Syslog |
Yes |
| Firmware upgradeable |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| DC voltage range |
12 V |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Yes |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antenna gain level (max) |
5 dBi |
| general_information_attribute_container_name |
|---|
| attribute_product_family_name |
Omada |
| Weight & dimensions |
|---|
| Width |
220 mm |
| Depth |
220 mm |
| Height |
32.5 mm |
| Packaging data |
|---|
| Package type |
Box |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
