TP-LINK

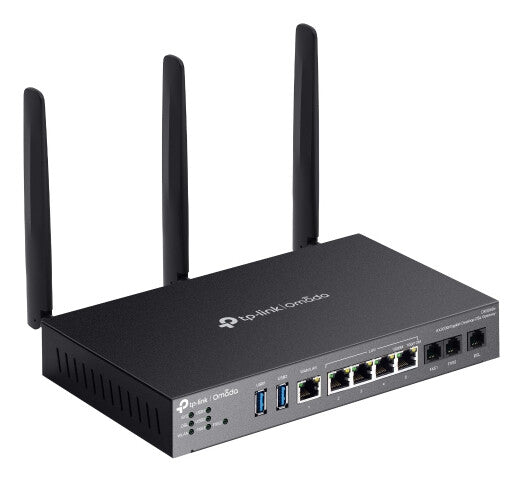

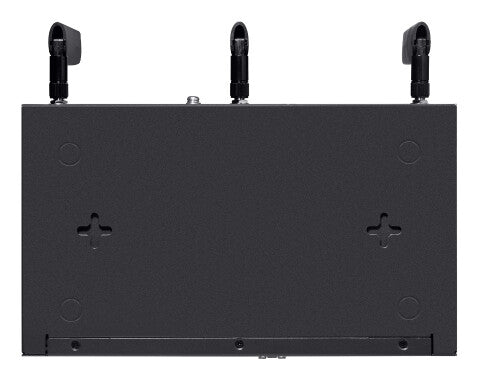

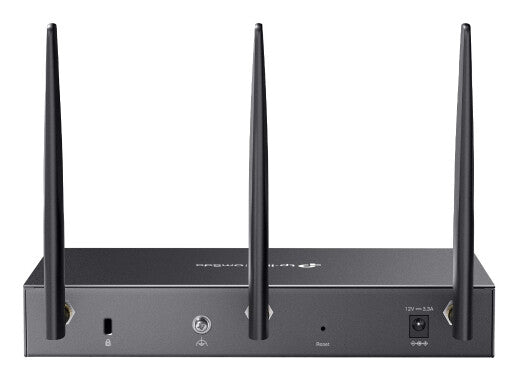

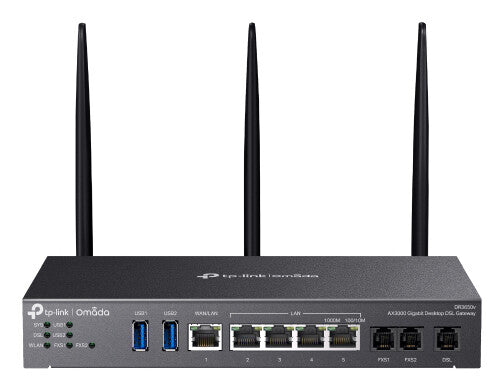

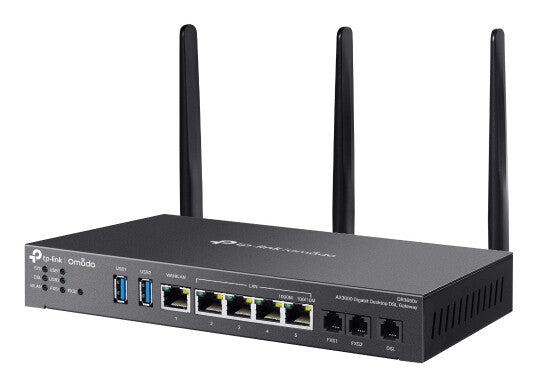

TP-Link Omada AX3000 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

TP-Link Omada AX3000 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

£201.13 GBP
£201.13 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

DR3650V

17 in stock

  • VDSL2 35b: Supports 350Mbps DSL Access*2
  • VDSL2/ADSL2+/ADSL2/ADSL Compatibility
  • Centralized Cloud Management
  • IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
  • Load Balancing Between DSL and Ethernet WAN
  • Omada Mesh Technology*3
  • Desktop/Wall Mounting
12VDC / 3.3A Power Adapter, 2.4 GHz (574 Mbps), 5 GHz (2402 Mbps), 256 MB NAND, 512 MB DDR4, 3 × RJ11 Ports (2 × FXS, 1 × DSL), 5 × RJ45 Gigabit Ports (1 × WAN/LAN Port, 4 × LAN Ports), 2 × USB 3.0 Ports, 226 × 131 × 35 mm

Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.

Versatile Connectivity
DR3650v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.

Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.

High-Security and High-Performance VPN
IPSec/PPTP/L2TP/GRE/WireGuard/ Open VPN/ SSL VPN easily builds secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

WAN connection
Ethernet WAN Yes
DSL WAN Yes
SIM card slot No
3G/4G USB modem compatibility Yes
WAN connection type RJ-45
Wireless LAN features
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max) 2402 Mbit/s
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band) 574 Mbit/s
WLAN data transfer rate (second band) 2402 Mbit/s
Network
Ethernet LAN Yes
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Port triggering Yes
Load balancing system Yes
Dynamic DNS (DDNS) Yes
Policy-based routing Yes
Static route Yes
Built-in FTP server Yes
VPN support IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL
DSL features
ADSL Yes
ADSL2 Yes
ADSL2+ Yes
VDSL2 Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 4
USB port Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
RJ-11 ports quantity 3
DC-in jack Yes
Management features
Web-based management Yes
Quality of Service (QoS) support Yes
Reset button Yes
MU-MIMO technology Yes
Security
Security algorithms WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Guest access Yes
Access Control List (ACL) Yes
URL filtering Yes
System event log Yes
DMZ support Yes
Network address translation (NAT) Yes
NAT functionality One-to-One NATMulti-Net NATVirtual ServerPort Triggering1NAT-DMZFTP/H.323/SIP/IPSec/PPTP ALGUPnP
Protocols
DHCP client Yes
DHCP server Yes
Universal Plug and Play (UPnP) Yes
Voice codecs G.711a, G.711ulaw, G.722, G.726, G.729ab
general_information_attribute_container_name
attribute_product_family_name Omada
Design
Product type Tabletop router
Product colour Black
Wall mountable Yes
Indication light Yes
LED indicators DSL, LAN, USB, WLAN
Packaging content
Cables included LAN (RJ-45), Phone
AC adapter included Yes
Antenna included Yes
Antenna
Antenna design External
Antenna gain level (max) 4.5 dBi
Antennas quantity 3
Detachable antenna(s) Yes
Features
Internal memory type DDR4
Internal memory 512 MB
Mean time between failures (MTBF) 671034 h
Power
Power source type AC
Output voltage 12 V
Output current 3.3 A
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 35 mm
Depth 131.2 mm
Width 226 mm
View full details
