TP-LINK

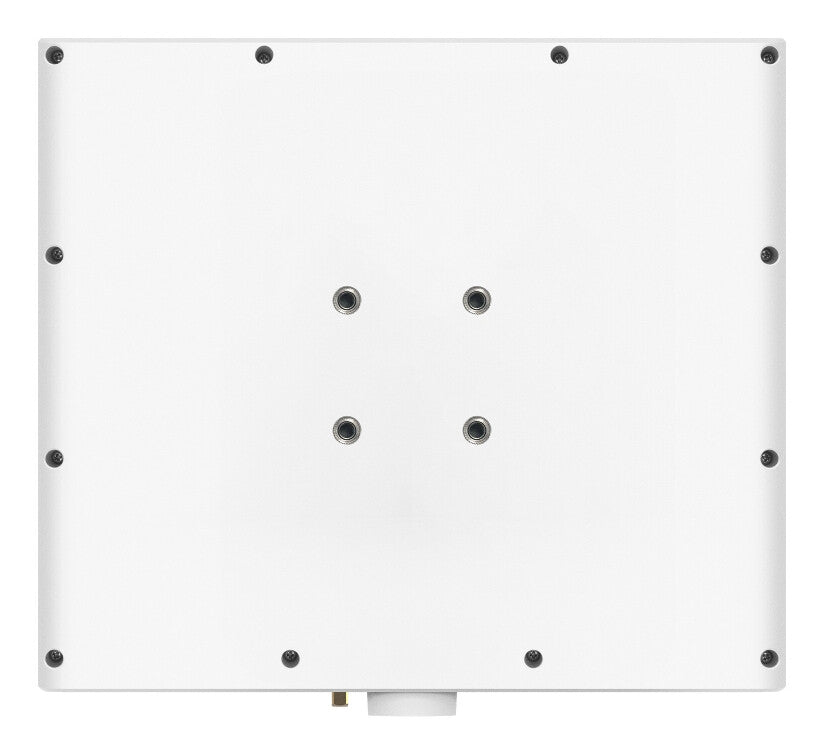

TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point
TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point
SKU:EAP650 D120-OUTDOOR
12 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage
- Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range
- 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners
- Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology
- Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI
Omada AX3000
Indoor/Outdoor WiFi 6
Access Point
Designed for Warehouses
The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.
Elevate WiFi Experience for Shelf Areas with Directional Antennas
Equipped with 4× built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage.
Stay Smooth with Seamless Roaming
Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 6 GHz | No |
| 5 GHz | Yes |
| Maximum data transfer rate | 3000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 250 user(s) |
| Bluetooth | Yes |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Virtual LAN features | SSID-based VLAN assignment |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum indoor range | 500 m |
| Security | |
|---|---|
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Management features | |
|---|---|
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 48 V |
| Design | |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 10 dBi |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | Omada |
| Weight & dimensions | |
|---|---|
| Width | 230 mm |
| Depth | 207.5 mm |
| Height | 58 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Quick start guide | Yes |
| Other features | |
|---|---|
| Vertical beam width | 30° |
| Horizontal beam width | 120° |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
