TP-LINK

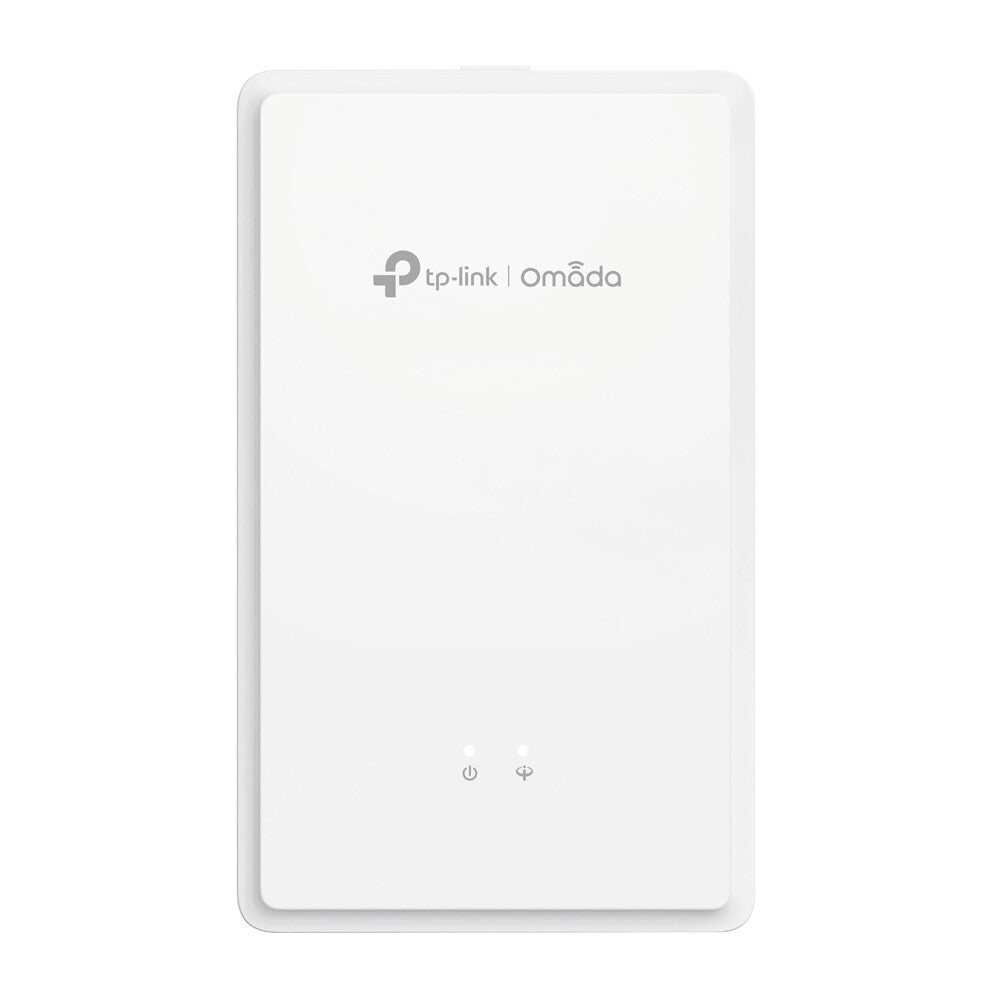

TP-Link Omada AX1800 1201 Mbit/s White

TP-Link Omada AX1800 1201 Mbit/s White

£122.18 GBP
£122.18 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

EAP615GP-WALL

31 in stock

  • Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
  • 1× GPON Port for High-Speed and Ultra-Range Access
  • Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
  • One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
  • VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
  • Easy Use: One-Click Pairing and Automatic Adoption
  • Smart O&M: PPSK△ and Multiple Portals§
  • Centralized Management: Integrates with the Unified Optical Solution
  • Wall-Mounted, AC Powered
1x GPON, 1x FXS, 2x Gigabit RJ-45, 100–240V~ 50/60Hz, 0.5A, 143 x 86 x 37.6 mm
Features
Transmitting power (CE) 20 dBm
Transmitting power (FCC) 21 dBm
BeamForming Yes
Quality of Service (QoS) support Yes
Airtime Fairness (ATF) Yes
Band steering Yes
Wireless isolation Yes
Rate limiting Yes
VLAN support Yes
Wi-Fi roaming Yes
Spread spectrum method OFDMA
MIMO type Multi User MIMO
MIMO Yes
Channel bandwidth 80 MHz
Number of users 120 user(s)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates 1000 Mbit/s
Maximum data transfer rate (5 GHz) 1201 Mbit/s
Maximum data transfer rate (2.4 GHz) 574 Mbit/s
Maximum data transfer rate 1201 Mbit/s
6 GHz No
5 GHz Yes
2.4 GHz Yes
Security
Remote Authentication Dial-In User Service (RADIUS) Yes
Number of SSID supported 16
Service Set Identifier (SSID) features Multiple SSIDs, SSID broadcast on/off
MAC address filtering Yes
Security algorithms SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal
Management features
Syslog Yes
Web-based management Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power
Power consumption (typical) 12.2 W
Input current 0.5 A
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Design
Certification CE, FCC, RoHS, IC
LED indicators Power
Reset button Yes
Product colour White
Placement Wall
Antenna
Antenna gain level (max) 6.5 dBi
Antennas quantity 2
Antenna direction type Omni-directional
Antenna type Internal
general_information_attribute_container_name
attribute_product_family_name Omada
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Weight 320 g
Height 37.6 mm
Depth 86 mm
Width 143 mm
Packaging content
Quick start guide Yes
Mounting kit Yes
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Sustainability
Sustainability compliance Yes
Logistics data
Quantity per pack 1 pc(s)
