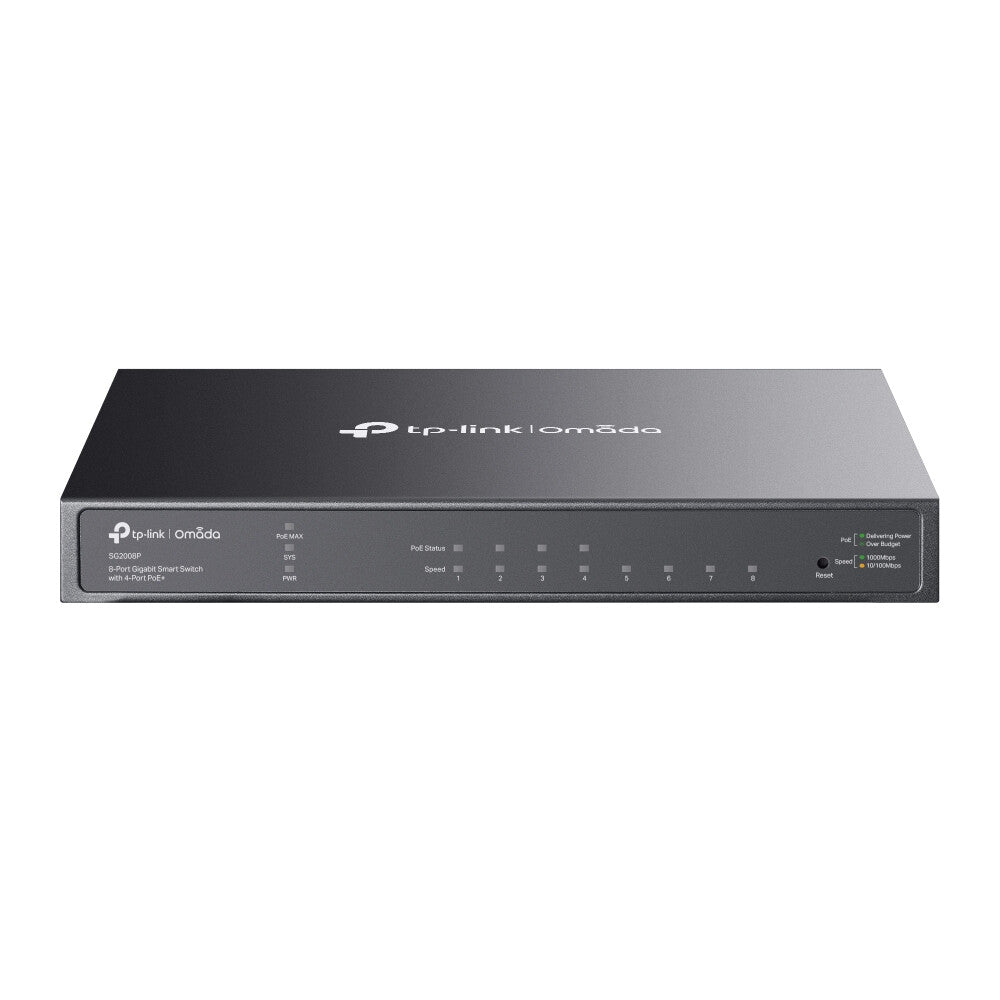

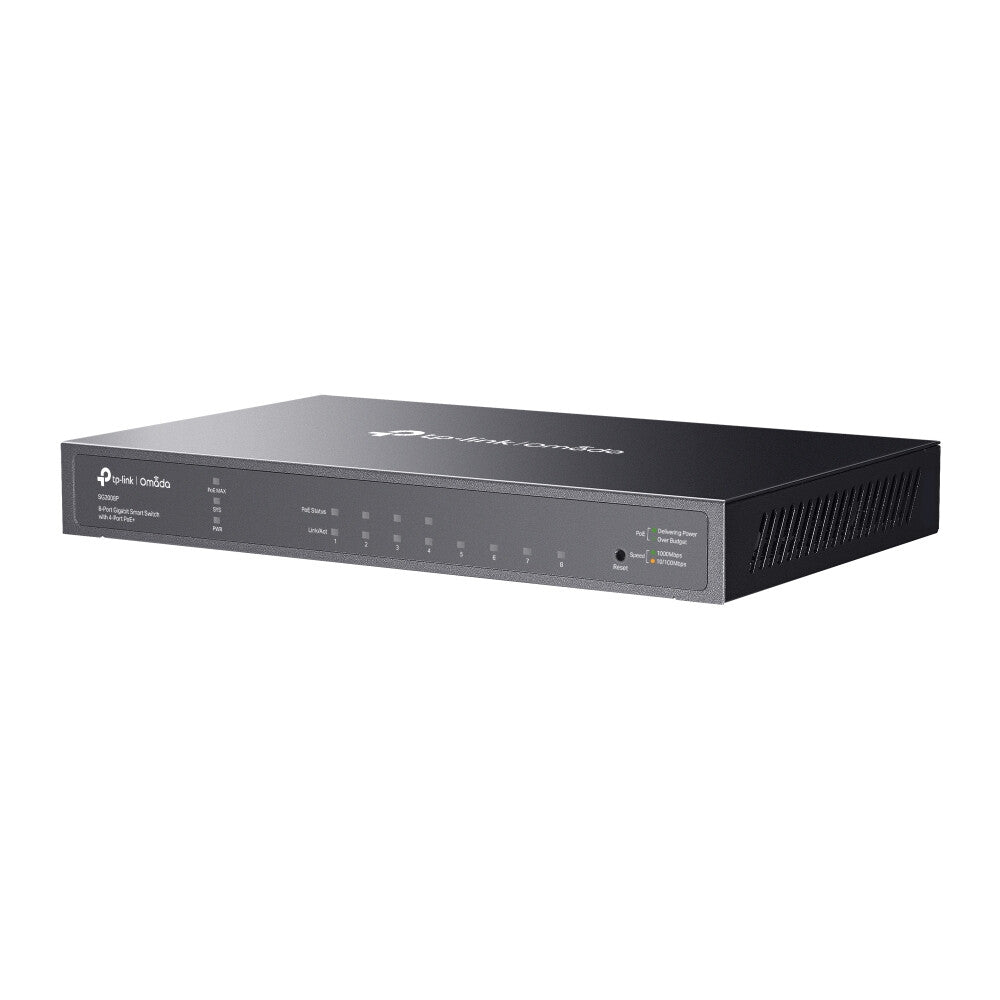

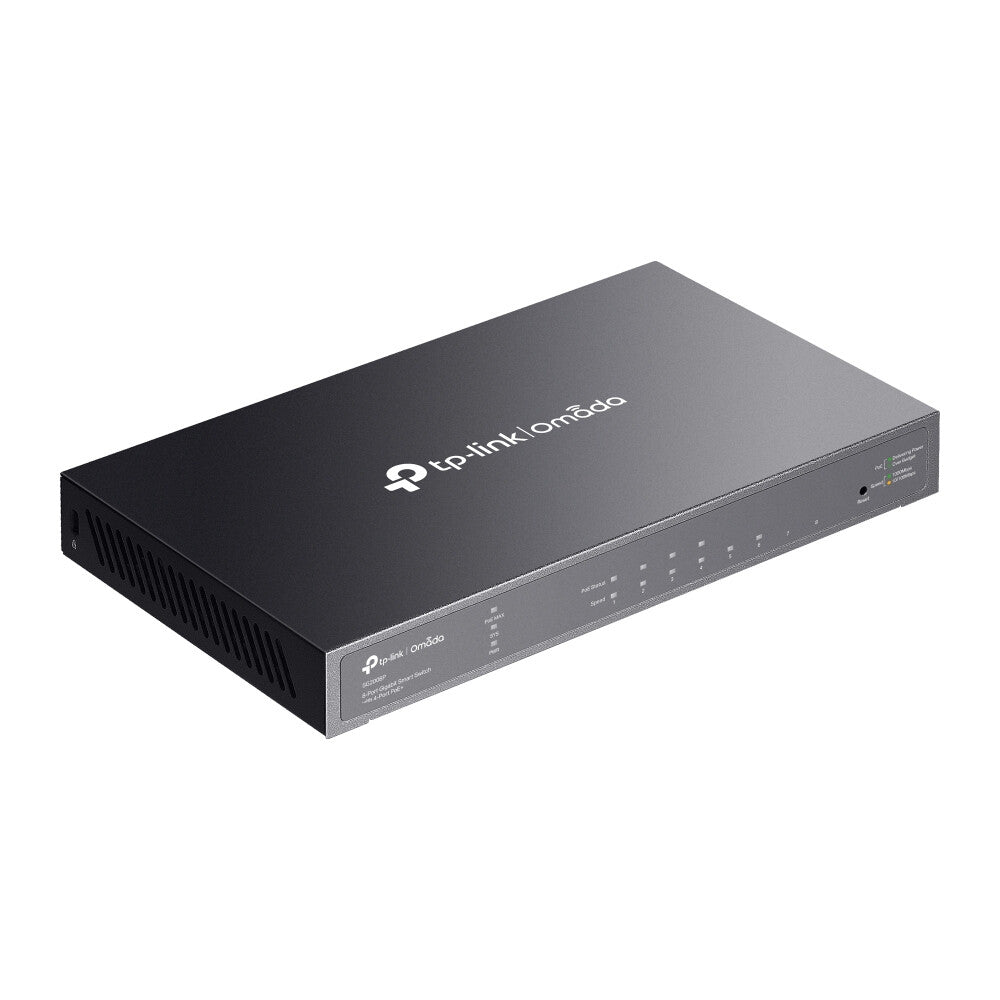

    TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+

    TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+

    £87.24 GBP
    £87.24 GBP
    Sale Sold out
    Tax included. Shipping calculated at checkout.

    SG2008P

    Low stock: 8 left

    • 8× Gigabit ports (4× 802.3at/af-compliant PoE+ ports)
    • 62 W total PoE budget with up to 30 W PoE output per port*
    • Centralized cloud management via the web or the Omada app†
    • Standalone management via web, CLI, SNMP, and RMON
    • Static Routing helps route internal traffic for higher efficiency
    • VLAN, ACL, QoS, and IGMP Snooping
    • Fanless design for silent operation
    • Durable metal casing and desktop/wall mounting design
    8× 10/100/1000 Mbps RJ45 PoE, 16 Gbps, 8K MAC, 9 KB Jumbo, 209 x 126 x 26mm

    TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

    Management features
    Switch type Managed
    Switch layer L2/L2+
    Quality of Service (QoS) support Yes
    Web-based management Yes
    ARP inspection Yes
    System event log Yes
    MIB support MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
    Ports & interfaces
    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Network
    Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
    10G support No
    Port mirroring Yes
    Rate limiting Yes
    Spanning tree protocol Yes
    Link aggregation Yes
    Auto-negotiation Yes
    Broadcast storm control Yes
    Auto MDI/MDI-X Yes
    Flow control support Yes
    VLAN support Yes
    Number of VLANs 4094
    Data transmission
    MAC address table 8000 entries
    Switching capacity 16 Gbit/s
    Forwarding rate 11.9 Mpps
    Number of queues 8
    Jumbo frames support Yes
    Jumbo frames 9000
    Packet buffer memory 4.1 MB
    Security
    DHCP features DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping
    IGMP snooping Yes
    Authentication MAC-based authentication, Web-based authentication
    Authentication type RADIUS
    Security algorithms 802.1x RADIUS
    MAC address filtering Yes
    Multicast features
    Multicast support Yes
    Protocols
    Management protocols SNMPv1/v2c/v3
    IPv4 & IPv6 features IPv6 Telnet, IPv6 ping, IPv6 tracert
    Design
    Rack mounting Yes
    Product colour Black
    LED indicators Yes
    Certification CE, FCC, RoHS
    general_information_attribute_container_name
    attribute_product_family_name Omada
    Performance
    Fanless Yes
    Power
    Power supply included Yes
    Power consumption (max) 77.3 W
    Power over Ethernet (PoE)
    Power over Ethernet (PoE) Yes
    Power over Ethernet plus (PoE+) ports quantity 4
    Operational conditions
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 5 - 90%
    Heat dissipation 263.6 BTU/h
    Weight & dimensions
    Width 209 mm
    Depth 126 mm
    Height 26 mm
    Packaging data
    Manual Yes
    Package type Box
