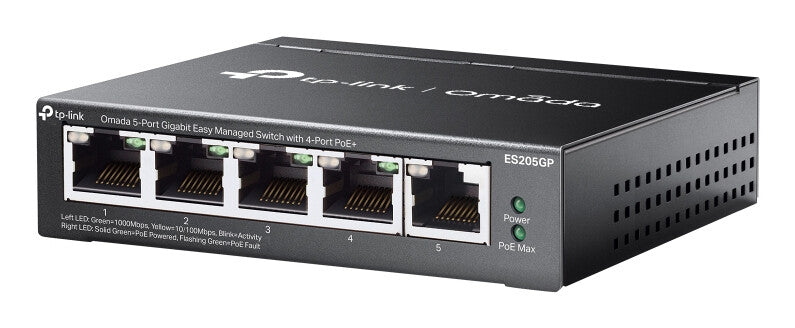

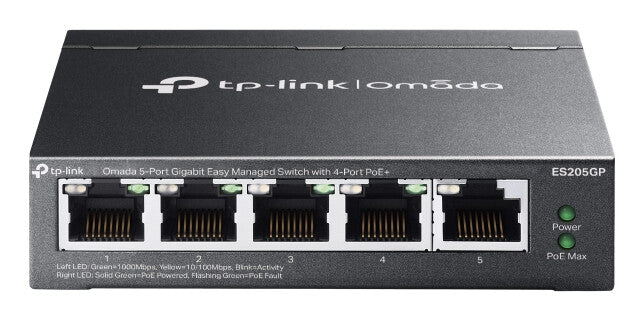

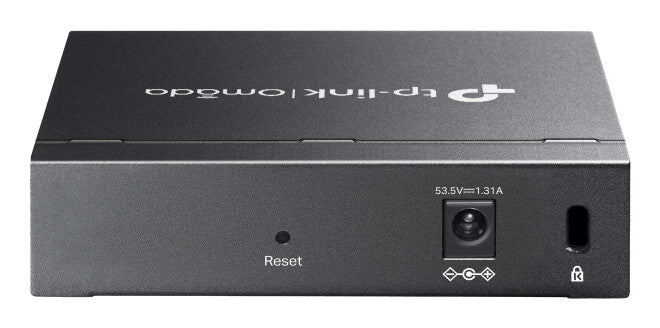

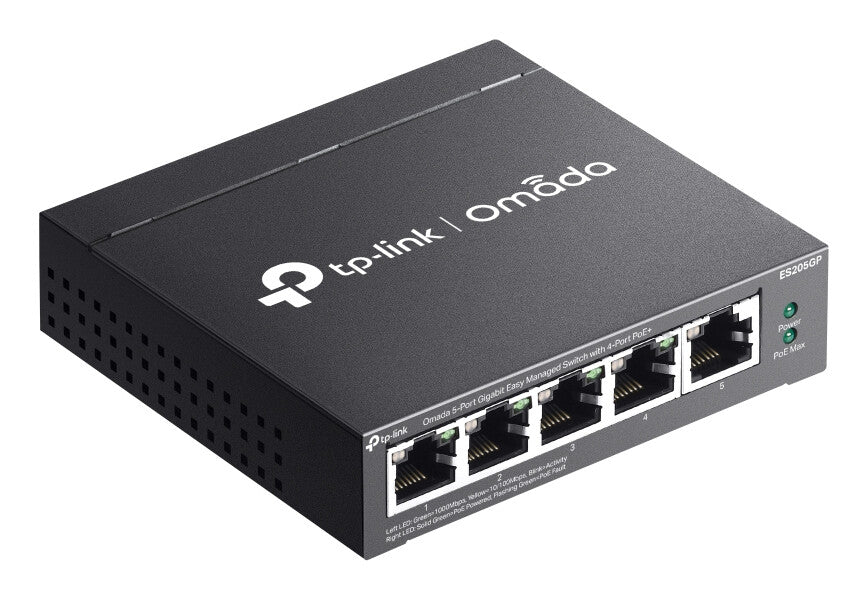

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

£53.28 GBP
£53.28 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ES205GP

Low stock: 6 left

  • 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation

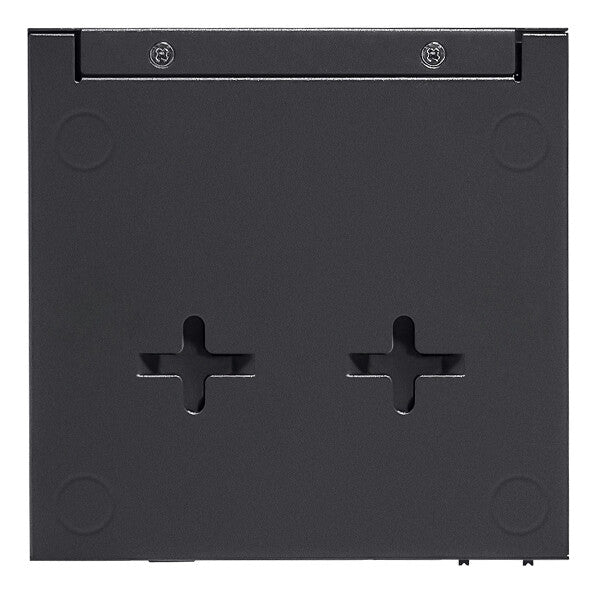

  • Durable metal casing and desktop/wall mounting design
5× 10/100/1000Mbps RJ-45, 4x 802.3at PoE+ / 802.3af PoE (Total 65W), AUTO Negotiation/AUTO MDI/MDIX, 10 Gbps, 8K MAC, 53.5VDC / 1.31A

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)


Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Management features
Switch type Managed
Quality of Service (QoS) support Yes
Cloud-managed Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
10G support No
Port mirroring Yes
Link aggregation Yes
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
Transmission distance (max) 0.25 km
Data transmission
MAC address table 8000 entries
Switching capacity 10 Gbit/s
Forwarding rate 7.4 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 15
Packet buffer memory 4 MB
Security
DHCP features DHCP client
IGMP snooping Yes
Loop protection Yes
Design
Product colour Black
Reset button Yes
LED indicators Yes
Wall mountable Yes
general_information_attribute_container_name
attribute_product_family_name Omada
Performance
Fanless Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Power
Power source AC/DC
Power supply included Yes
DC input voltage 53.5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 65 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 100 mm
Depth 98 mm
Height 25 mm
Packaging data
Package type Box
User guide Yes
