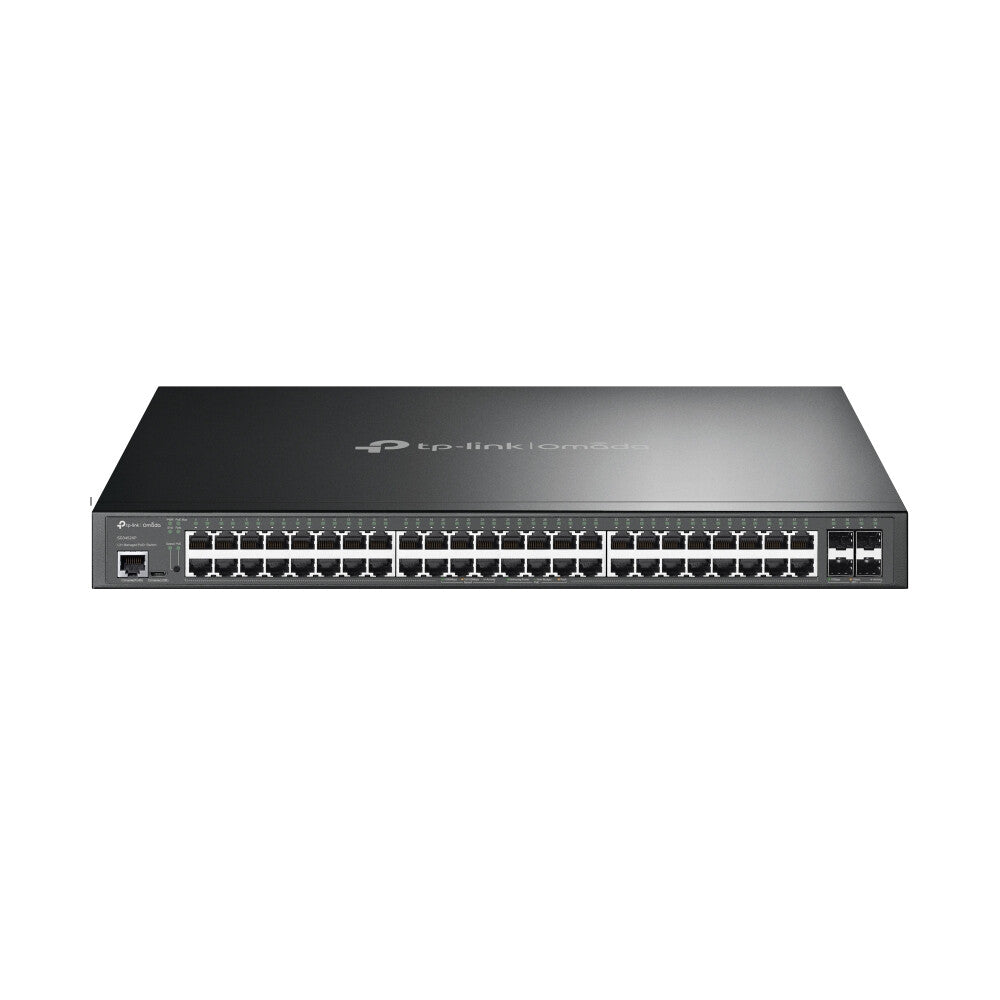

SKU: SG3452XP
Low stock: 2 left
4× 10 Gbps SFP+ slots
48× Gigabit 802.3af/at PoE+ ports
500 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design
48x 10/100/1000 Mbps RJ45 PoE+, 4x 10G SFP+ Slots, 1x RJ45, 1x Micro-USB, 176 Gbps, MAC 16 K, 440 × 330 × 44 mm
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Management features
Switch type
Managed
Switch layer
L2+
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
Web-based management
Yes
Configuring Location Settings (CLI)
Yes
ARP inspection
Yes
System event log
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
Console port
RJ-45/Micro-USB
Power connector
AC-in jack
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support
Yes
Port mirroring
Yes
Head-of-line (HOL) blocking
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Flow control support
Yes
VLAN support
Yes
Data transmission
MAC address table
16000 entries
Switching capacity
176 Gbit/s
Forwarding rate
130.9 Mpps
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
12 MB
Security
DHCP features
DHCP client, DHCP relay, DHCP server
Access Control List (ACL)
Yes
IGMP snooping
Yes
IP-MAC-Port binding
Yes
Static port security
Yes
BPDU filtering/protection
Yes
Authentication
Auto VLAN, Guest VLAN
SSH/SSL support
Yes
MAC address filtering
Yes
Multicast features
Multicast support
Yes
Design
Rack mounting
Yes
Form factor
1U
Product colour
Black
Reset button
Yes
LED indicators
Yes
Number of fans
3 fan(s)
Certification
CE, FCC, RoHS
general_information_attribute_container_name
attribute_product_family_name
Omada
Power
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
635.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
48
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
500 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
2169.2 BTU/h
Weight & dimensions
Width
440 mm
Depth
330 mm
Height
44 mm
Packaging data
Cables included
AC
Quick start guide
Yes
