Cloud centralized management and Omada app for ultra convenience and easy management
Supports Power over Ethernet (802.3af) for convenient and affordable installation
Simple mounting design for easy attachment to a wall or ceiling
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Enterprise class Wi-Fi security help to decrease network security threats
Multi-SSID divides multiple wireless networks for different user types
Supports management vlan for an enhanced network management
300Mbps Wireless N Ceiling Mount Access Point, 2.4 - 2.4835 GHz, 9VDC/0.6A, 2.8W

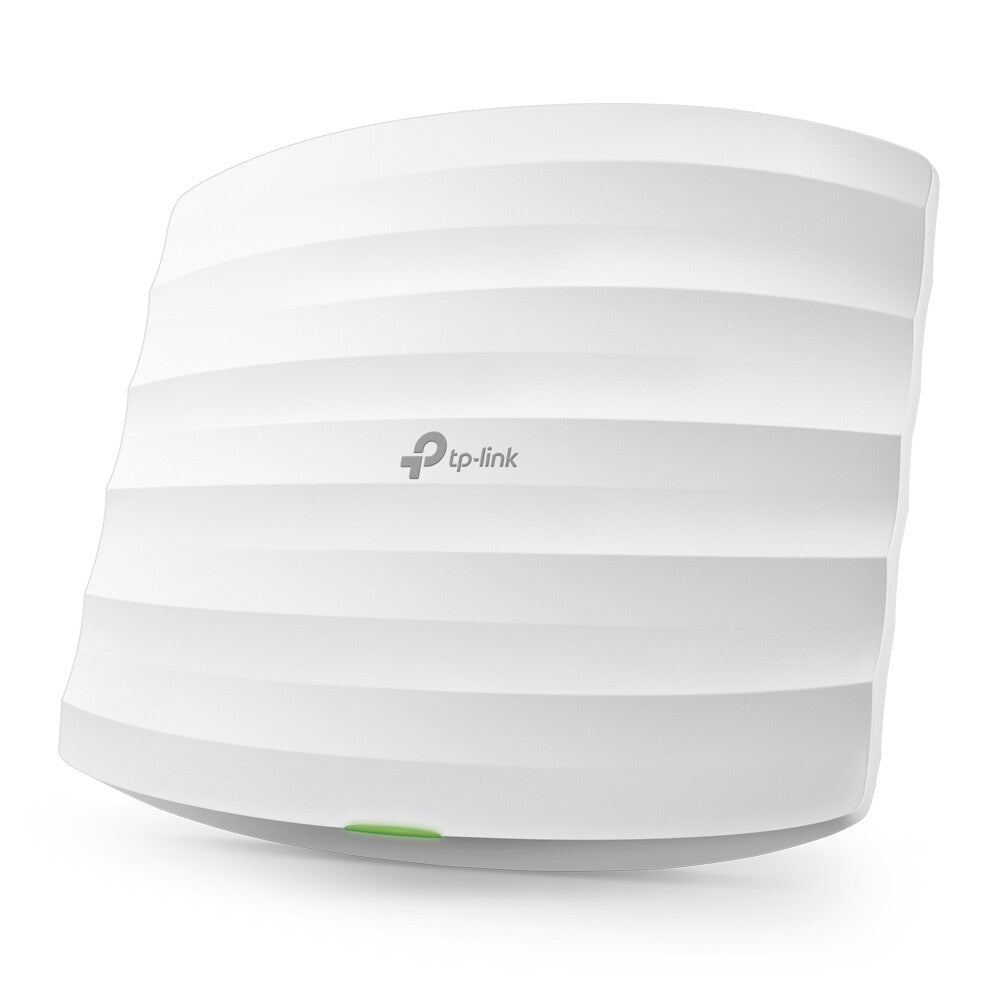

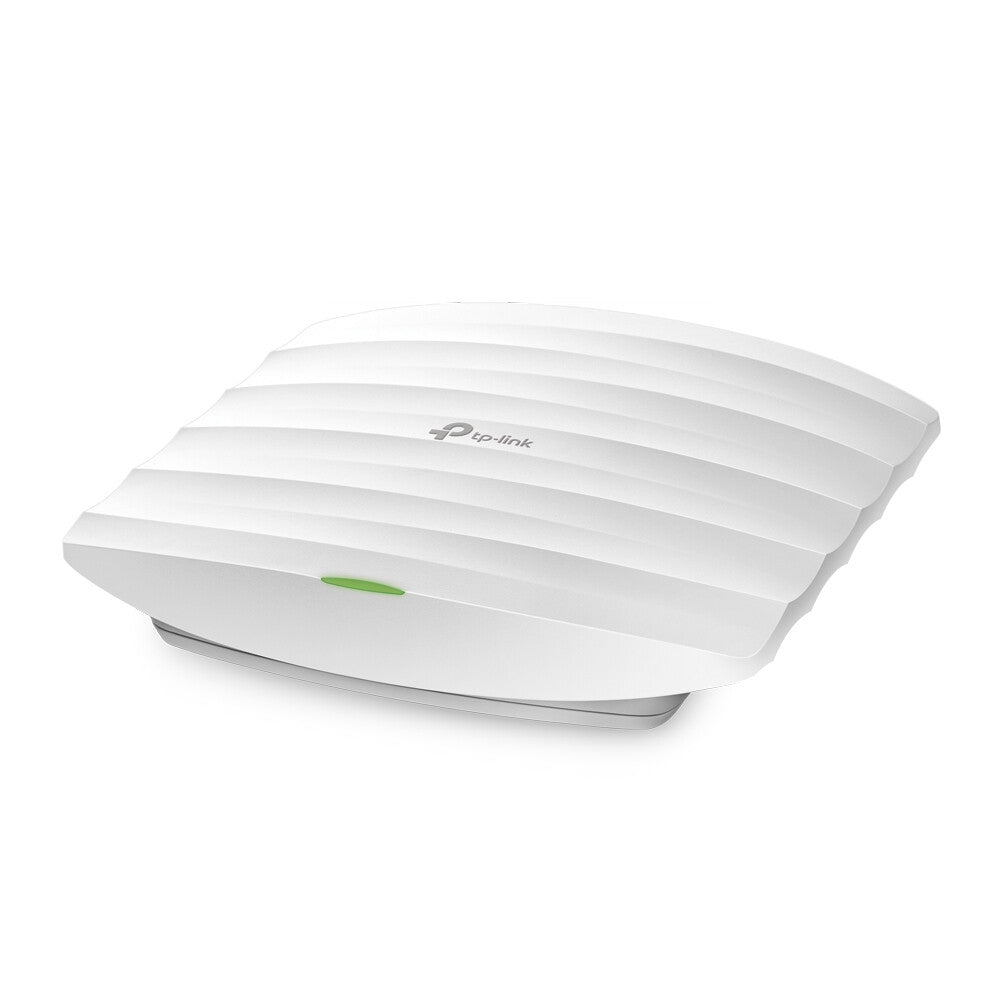

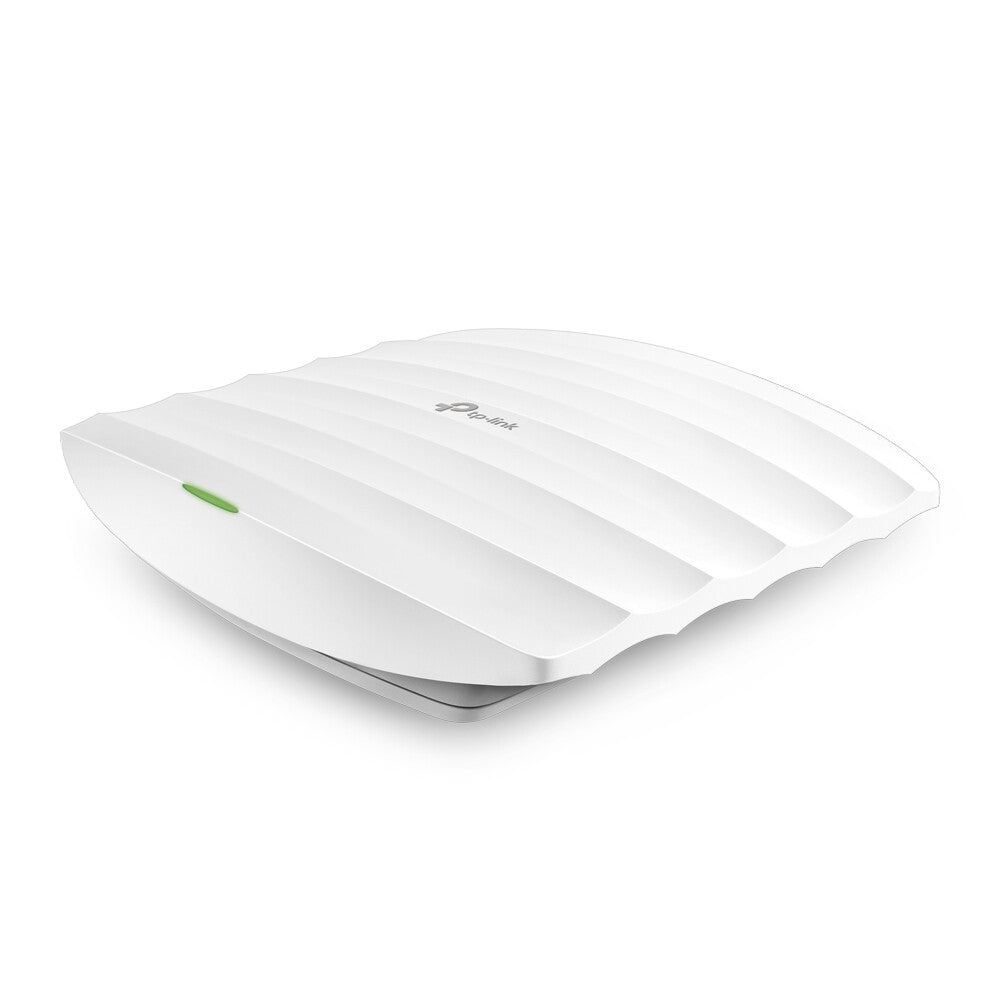

An Affordable, Scalable Business Wi-Fi Solution 300Mbps Wireless N Ceiling Mount Access Point
Cloud Centralized Management - Anytime, Anywhere Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal Guest Network with Facebook and SMS Support Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

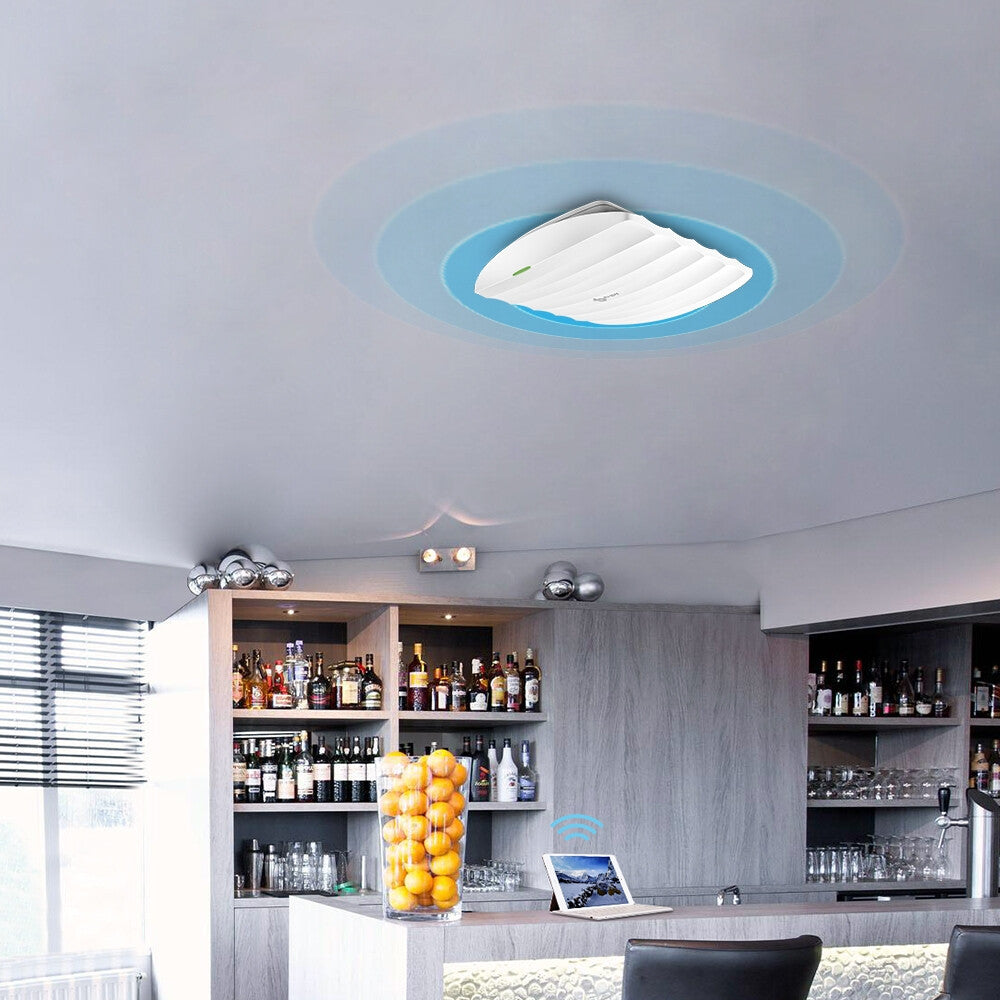

Easy Mount Design and PoE Timesaving and Flexible Deployment The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Features
2.4 GHz
Yes
6 GHz
No
5 GHz
No
Maximum data transfer rate
300 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 2.4835 GHz
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology
10/100Base-T(X)
Automatic channel selection
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
VLAN mapping
Rate limiting
Yes
Wireless isolation
Yes
Quality of Service (QoS) support
Yes
Transmitting power (FCC)
21 dBm
Transmitting power (CE)
19 dBm
Receiver sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
