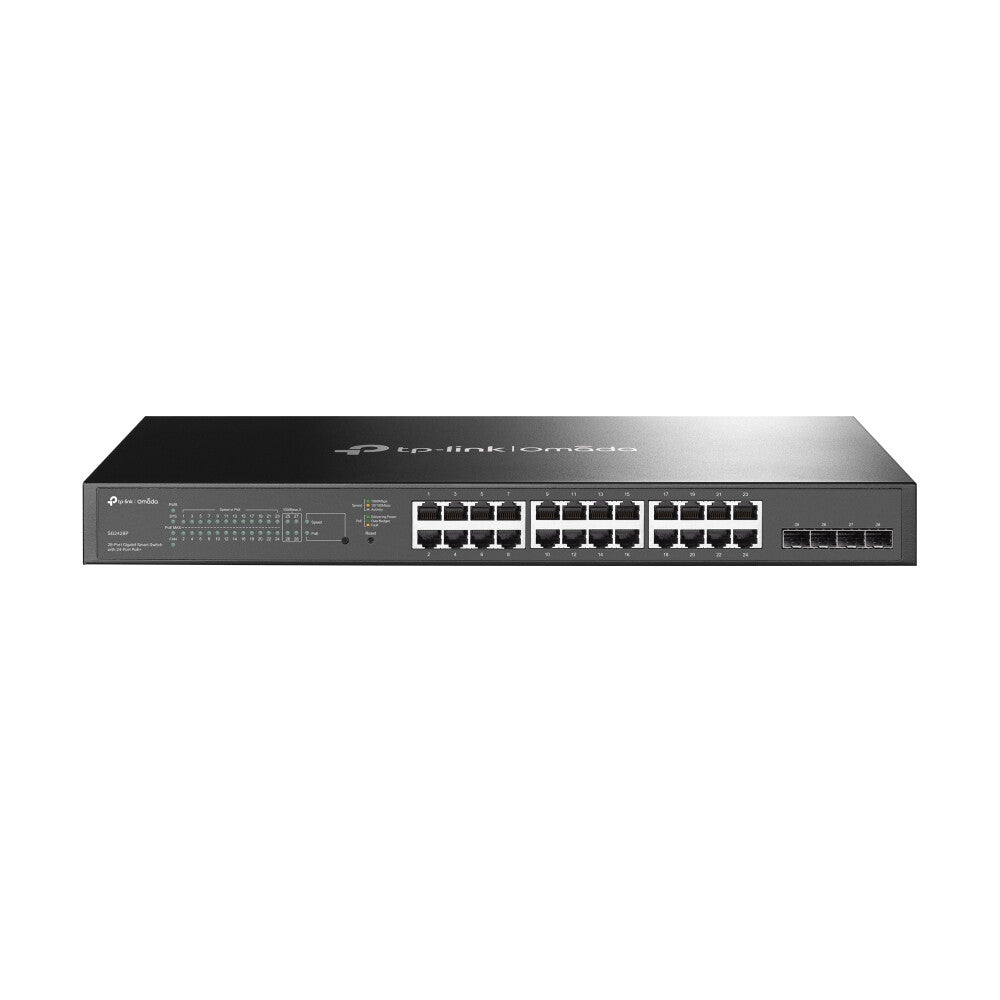

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

£305.24 GBP
£305.24 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SG2428P

55 in stock

  • 24× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
  • 250 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Durable metal casing and rackmountable design
24× 10/100/1000 Mbps PoE+ RJ45, 4× Gigabit SFP Slots, 56 Gbps, 8K MAC, 9 KB Jumbo, 440×220×44 mm

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Management features
MIB support Y
System event log Yes
ARP inspection Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2/L2+
Switch type Managed
Ports & interfaces
SFP module slots quantity 4
Gigabit Ethernet (copper) ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Number of VLANs 4000
Virtual LAN features MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
VLAN support Yes
Rate limiting Yes
Flow control support Yes
Broadcast storm control Yes
Link aggregation Yes
Spanning tree protocol Yes
Port mirroring Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology 10BASE-T, 1000BASE-T
10G support No
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Optical fiber
Fiber ethernet cabling technology 1000BASE-X
Data transmission
Packet buffer memory 4.1 MB
Jumbo frames 9000
Jumbo frames support Yes
Number of queues 8
Forwarding rate 41.66 Mpps
Switching capacity 56 Gbit/s
MAC address table 8000 entries
Security
BPDU filtering/protection Yes
IP-MAC-Port binding Yes
SSH/SSL support Yes
Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
Authentication type RADIUS
Queue scheduling algorithms SP, WRR+SP, Weighted Round Robin (WRR)
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Multicast features
Multicast support Yes
Protocols
Management protocols SNMPv1/v2c/v3, SNTP
Design
Certification CE, FCC, RoHS
Number of fans 2 fan(s)
Product colour Black
Form factor 1U
Rack mounting Yes
general_information_attribute_container_name
attribute_product_family_name Omada
Performance
Firmware upgradeable Yes
Power
Power consumption (max) 301.1 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 250 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 24
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 1052.94 BTU/h
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Height 44 mm
Depth 220 mm
Width 440 mm
Packaging data
Rack mount kit Yes
User guide Yes
Cables included AC
