TP-LINK

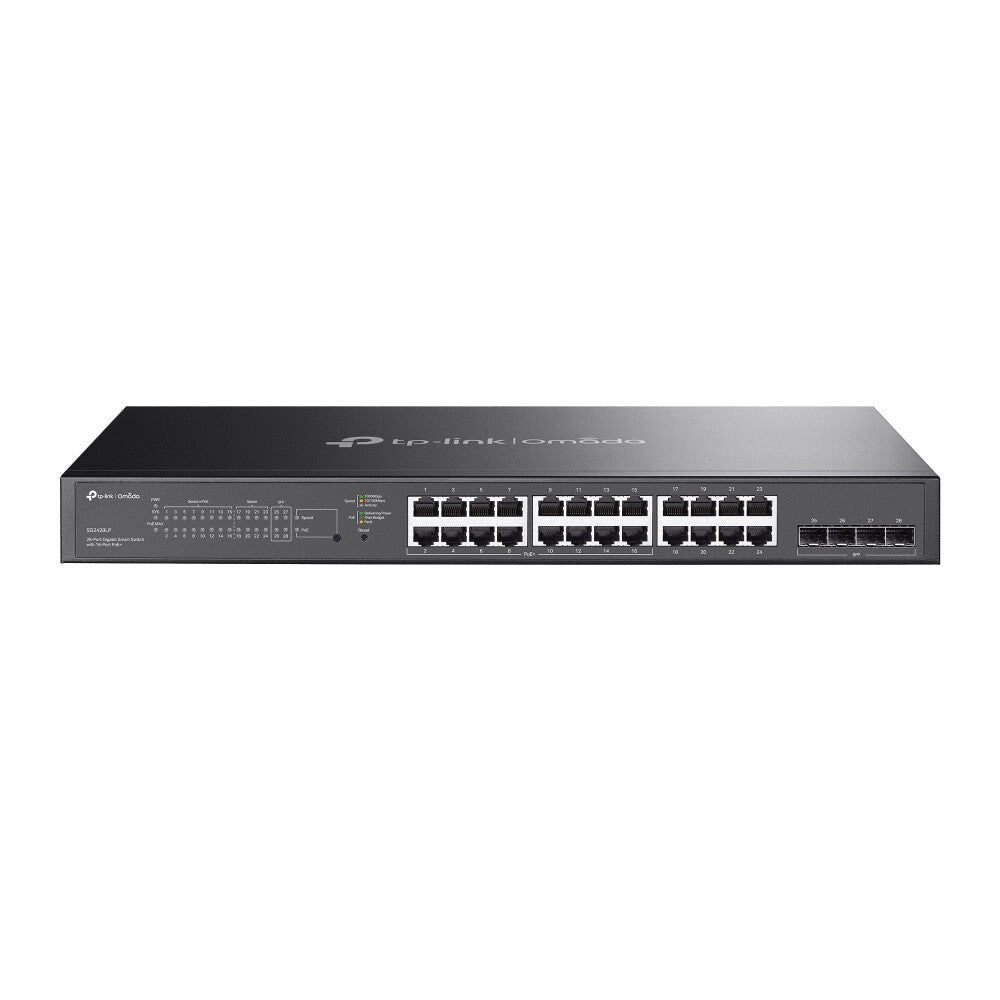

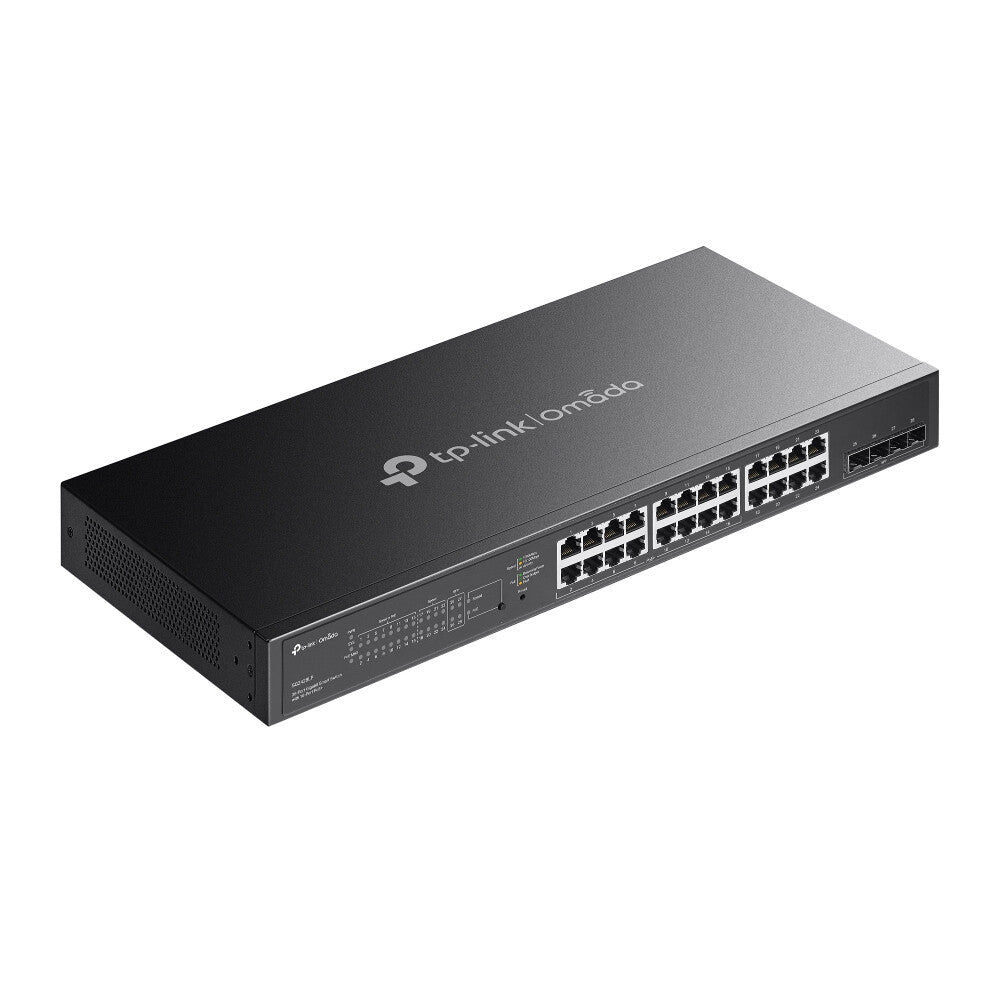

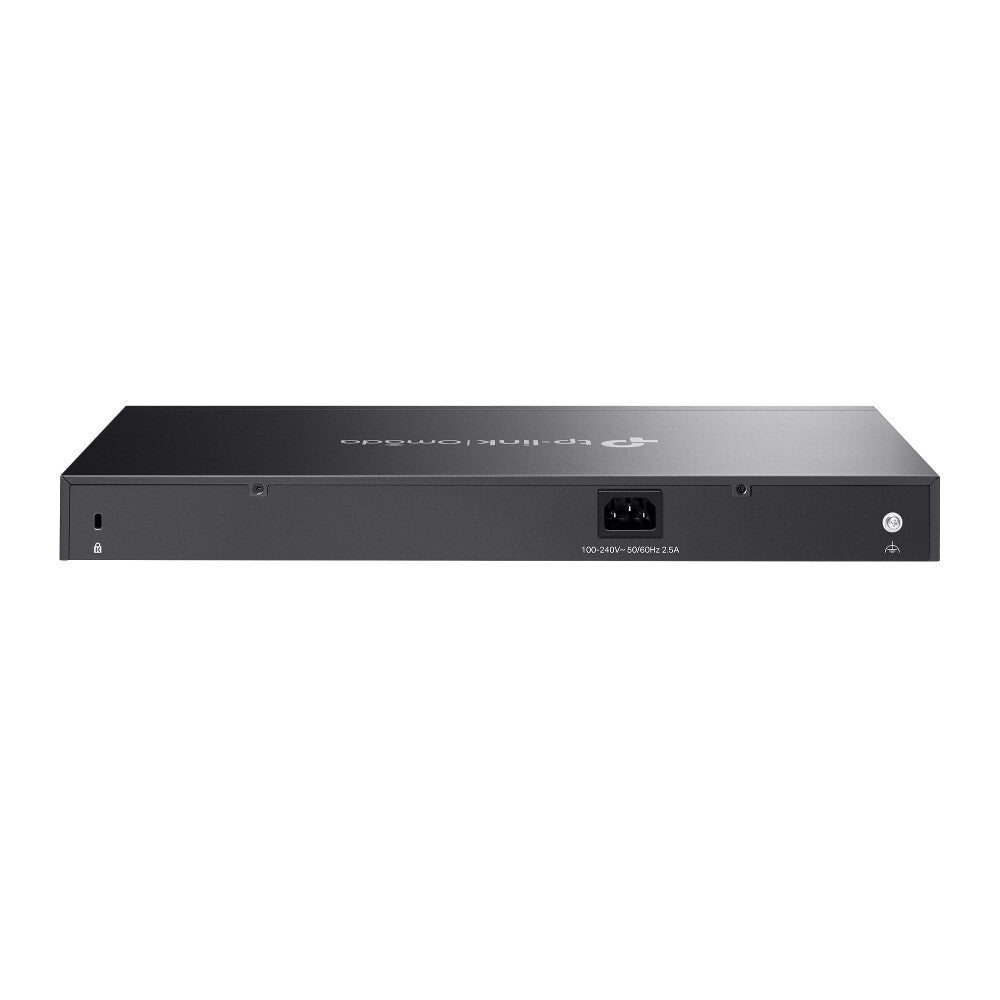

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

£221.62 GBP
£221.62 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SG2428LP

Low stock: 3 left

  • 16× Gigabit 802.3af/at PoE+ ports
  • 8× Gigabit non-PoE RJ45 ports and 4× Gigabit SFP slots
  • 150 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for quiet operation
  • Durable metal casing and rackmountable design
16× 10/100/1000 Mbps PoE+ RJ45, 8× 10/100/1000 Mbps RJ45, 4× Gigabit SFP Slots, 56 Gbps, 41.66 Mpps, 440 x 220 x 44 mm

- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Management features
Switch type Managed
Switch layer L2/L2+
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
ARP inspection Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 4
Network
Networking standards IEEE 802.3af, IEEE 802.3at
10G support No
Spanning tree protocol Yes
Link aggregation Yes
Auto-negotiation Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs 4000
Data transmission
MAC address table 8000 entries
Switching capacity 56 Gbit/s
Forwarding rate 41.66 Mpps
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 4.1 MB
Security
DHCP features DHCP relay, DHCP server
Access Control List (ACL) Yes
IGMP snooping Yes
Password protection Yes
MAC address filtering Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Product colour Grey
LED indicators Yes
general_information_attribute_container_name
attribute_product_family_name Omada
Performance
Fanless Yes
Power
Power source AC/PoE
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 184.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 16
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 150 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 628 BTU/h
Weight & dimensions
Width 440 mm
Depth 220 mm
Height 44 mm
