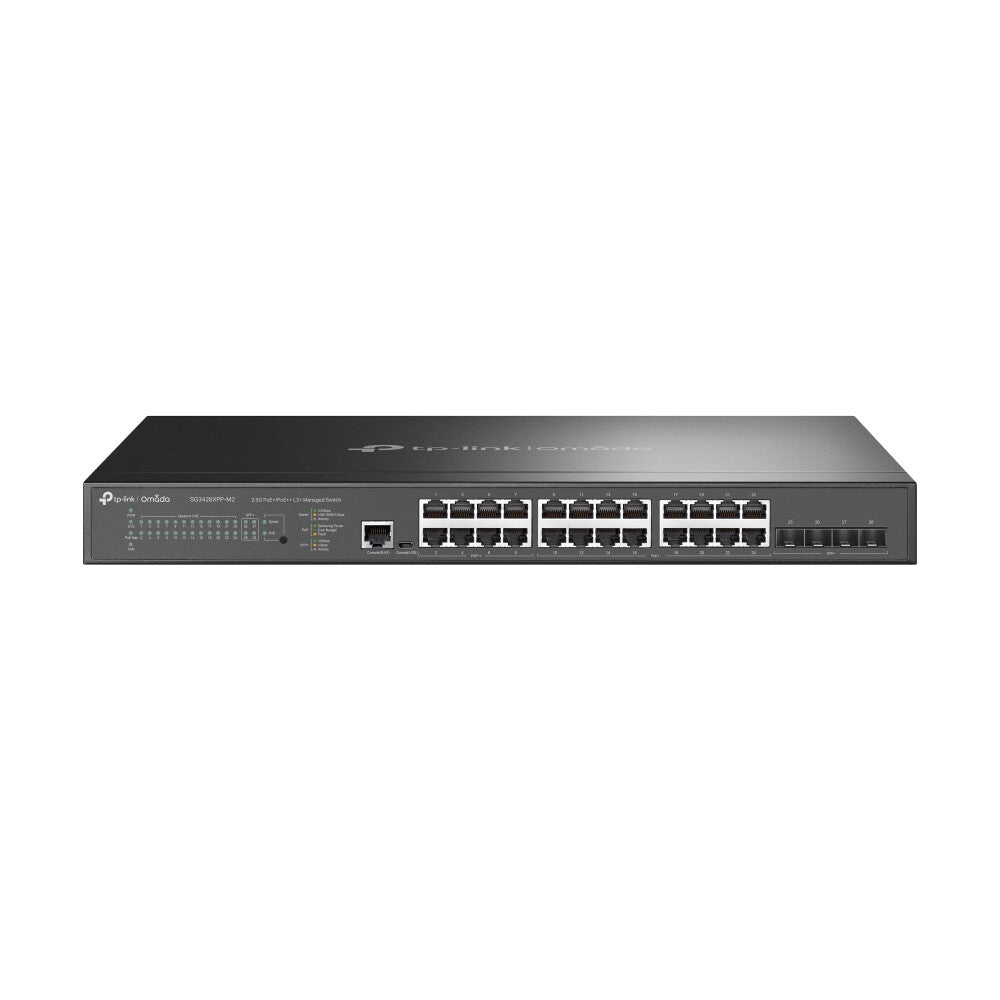

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

£559.85 GBP
£559.85 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SG3428XPP-M2

Low stock: 2 left

  • 8× 2.5G PoE++ ports (up to 60 W PoE out per port)**
  • 16× 2.5G PoE+ ports (up to 30 W PoE out per port)
  • 4× 10G SFP+ slots
  • 500 W total PoE budget*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
8× 2.5 Gbps RJ45 PoE++, 16× 2.5 Gbps RJ45 PoE+, 4× 10G SFP+ Slots, RJ45/Micro-USB, 200 Gbps, 32 K MAC, 9 KB Jumbo, 440×330×44 mm

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Management features
Switch type Managed
Switch layer L2+
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
Configuring Location Settings (CLI) Yes
ARP inspection Yes
System event log Yes
MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity 24
SFP+ module slots quantity 4
Console port RJ-45/Micro-USB
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Yes
Port mirroring Yes
Half duplex Yes
Full duplex Yes
Head-of-line (HOL) blocking Yes
IPv6 routes 48
IPv4 routes 48
Rate limiting Yes
Ethernet LAN data rates 10,100,1000,2500,10000 Mbit/s
Spanning tree protocol Yes
Link aggregation Yes
Broadcast storm control Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Data transmission
MAC address table 32000 entries
Switching capacity 200 Gbit/s
Forwarding rate 148.8 Mpps
Store-and-forward Yes
Number of queues 8
Static route Yes
Number of static routes 48
Number of IP interfaces 32
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 16 MB
Security
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL) Yes
IGMP snooping Yes
IP-MAC-Port binding Yes
Static port security Yes
Password protection Yes
Loop protection Yes
BPDU filtering/protection Yes
Authentication Guest VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support Yes
Queue scheduling algorithms SP, WRR+SP, Weighted Round Robin (WRR)
Authentication type AAA, IEEE 802.1x, RADIUS, TACACS+
Security algorithms HTTPS, SSH, SSH-2, SSL/TLS
Multicast features
Multicast support Yes
Multicast Listener Discovery (MLD) snooping MLD v1/v2
Protocols
Management protocols SNMP v1/v2c/v3
GARP VLAN Registration Protocol (GVRP) Yes
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert
Design
Rack mounting Yes
Form factor 1U
Product colour Black
LED indicators Yes
Redundant fans support Yes
Number of fans 3 fan(s)
general_information_attribute_container_name
attribute_product_family_name Omada
Performance
Memory type DRAM
Internal memory 256 MB
Flash memory 32 MB
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Power
Power source AC/PoE
Power supply included Yes
Redundant power supply (RPS) support Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 629.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 16
Power over Ethernet 4PPoE (PoE++) ports quantity 8
Total Power over Ethernet (PoE) budget 500 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 2153.45 BTU/h
Weight & dimensions
Width 440 mm
Depth 330 mm
Height 44 mm
Sustainability
Sustainability compliance Yes
Packaging data
Cables included AC
Quick start guide Yes
Rack mount kit Yes
