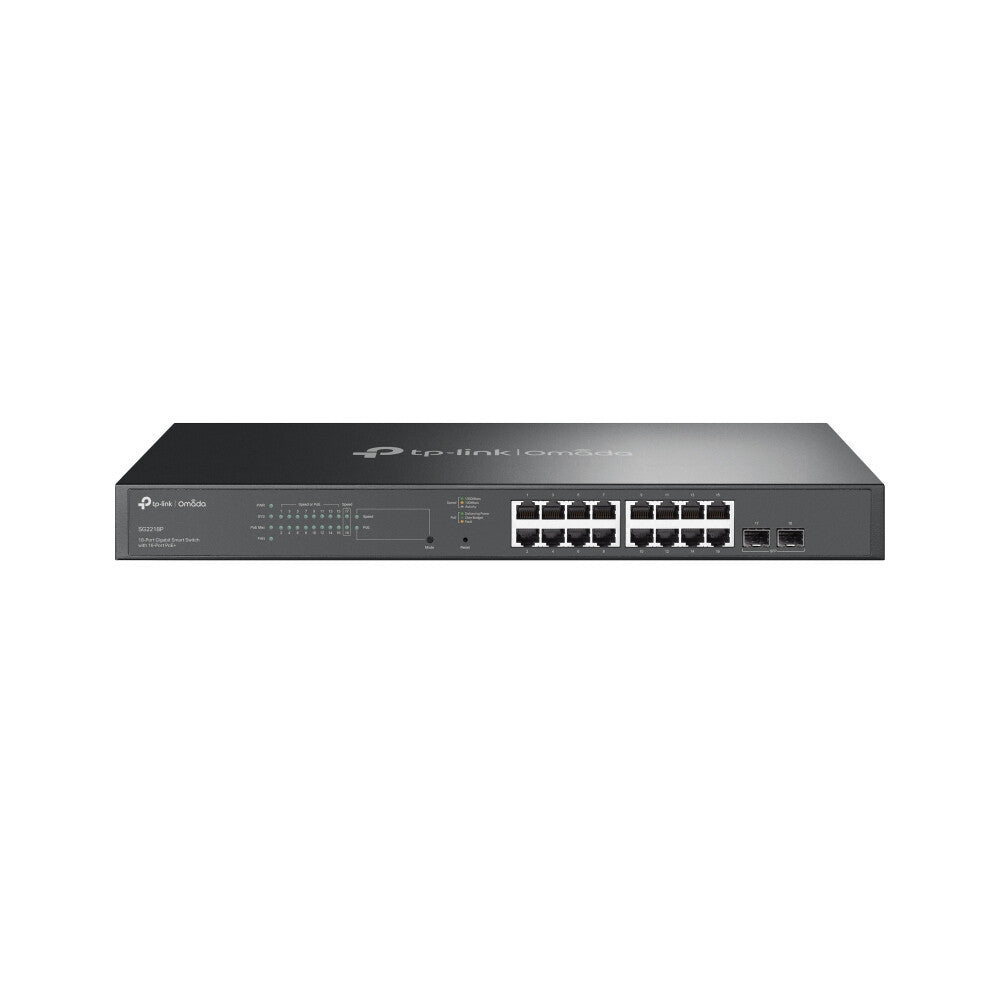

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

£272.53 GBP
£272.53 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SG2218P

31 in stock

  • 16× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP Slots
  • 150 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Durable metal casing and rackmountable design
16× 10/100/1000 Mbps PoE+ RJ45, 2× Gigabit SFP Slots, 36 Gbps, 8K MAC, 9 KB Jumbo, 440 × 180 × 44 mm

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The
switches can be managed by Omada SDN Controller, which provides professional and reliable one-step
solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing
provide cost-effective networking solutions for small and medium-sized businesses without sacrificing
enhanced usability and strong performance.

Management features
Switch type Managed
Switch layer L2/L2+
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
Configuring Location Settings (CLI) Yes
ARP inspection Yes
System event log Yes
MIB support MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 2
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support No
Policy-based routing Yes
IP routing Yes
Rate limiting Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Spanning tree protocol Yes
Link aggregation Yes
Auto-negotiation Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Data transmission
MAC address table 8000 entries
Switching capacity 26.78 Gbit/s
Forwarding rate 26.78 Mpps
Jumbo frames support Yes
Jumbo frames 9
Packet buffer memory 4.1 MB
Security
DHCP features DHCP client, DHCP relay, DHCP snooping
Access Control List (ACL) Yes
Static port security Yes
Loop protection Yes
BPDU filtering/protection Yes
Authentication MAC-based authentication, Port-based authentication
SSH/SSL support Yes
MAC address filtering Yes
Multicast features
Multicast support Yes
Multicast features Multicast forwarding
Design
Rack mounting Yes
Form factor 1U
Product colour Black
LED indicators Yes
Certification CE, FCC, RoHS
general_information_attribute_container_name
attribute_product_family_name Omada
Power
Power source DC/PoE
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 181.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 150 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 619.06 BTU/h
Weight & dimensions
Width 440 mm
Depth 180 mm
Height 44 mm
Packaging data
Cables included LAN (RJ-45)
Package type Box
User guide Yes
