TP-LINK

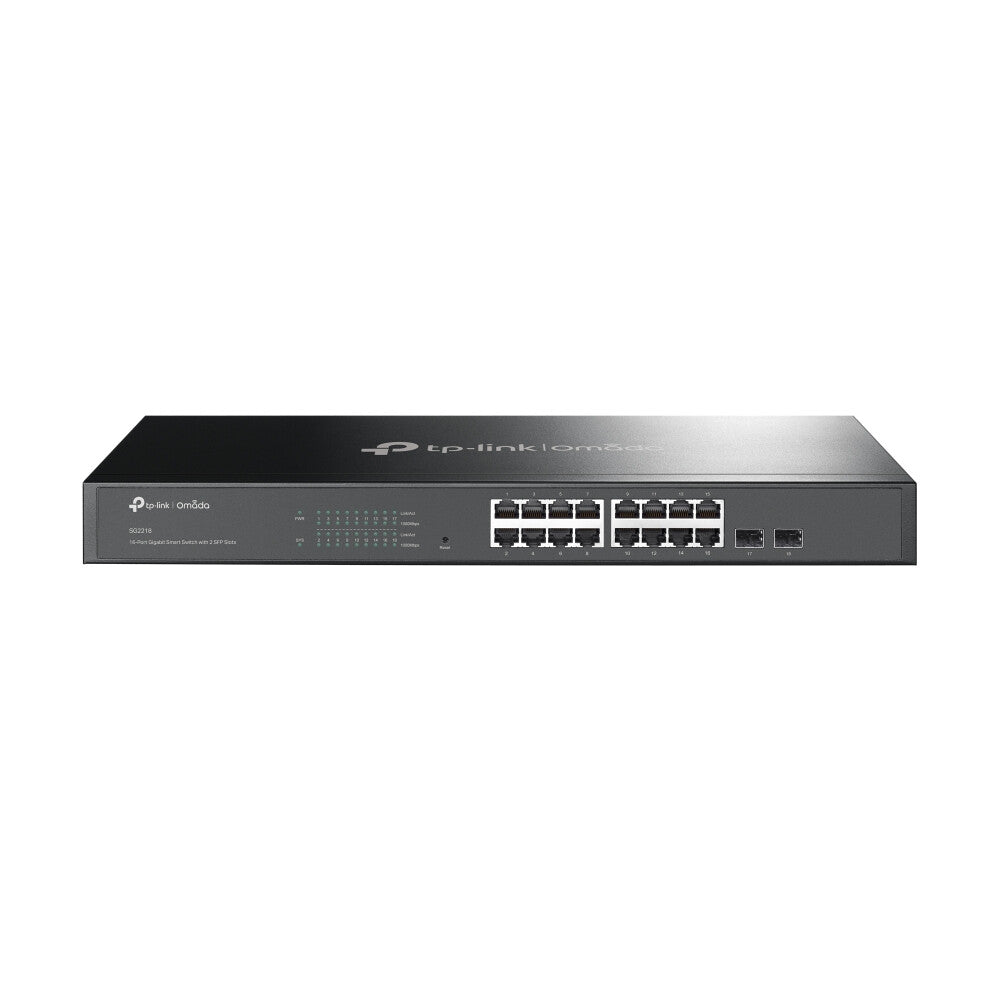

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots

£167.03 GBP
£167.03 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SG2218

20 in stock

  • 16× Gigabit RJ45 ports and 2× Gigabit SFP slots
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and rackmountable design
16× 10/100/1000 Mbps RJ45, 2× Gigabit SFP Slots, 36 Gbps, 8K MAC, 9KB Jumbo, 440 × 180 × 44 mm

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Management features
Switch type Managed
Switch layer L2/L2+
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
ARP inspection Yes
System event log Yes
MIB support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 16
SFP module slots quantity 2
Network
Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support No
Port mirroring Yes
Rate limiting Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Spanning tree protocol Yes
Link aggregation Yes
Broadcast storm control Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs 4000
Data transmission
MAC address table 8000 entries
Switching capacity 36 Gbit/s
Forwarding rate 26.8 Mpps
Store-and-forward Yes
Static route Yes
Number of static routes 32
Number of IP interfaces 16
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 4.1 MB
Security
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL) Yes
IGMP snooping Yes
Loop protection Yes
BPDU filtering/protection Yes
SSH/SSL support Yes
Multicast features
Multicast support Yes
Multicast Listener Discovery (MLD) snooping Y
Protocols
Management protocols SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP) Yes
Design
Rack mounting Yes
Form factor 1U
Product colour Black
LED indicators Yes
Certification CE, FCC, RoHS
general_information_attribute_container_name
attribute_product_family_name Omada
Performance
Fanless Yes
Power
Power source AC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 12.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 41.97 BTU/h
Weight & dimensions
Width 440 mm
Depth 180 mm
Height 44 mm
Packaging data
Cables included AC, LAN (RJ-45)
Quick start guide Yes
