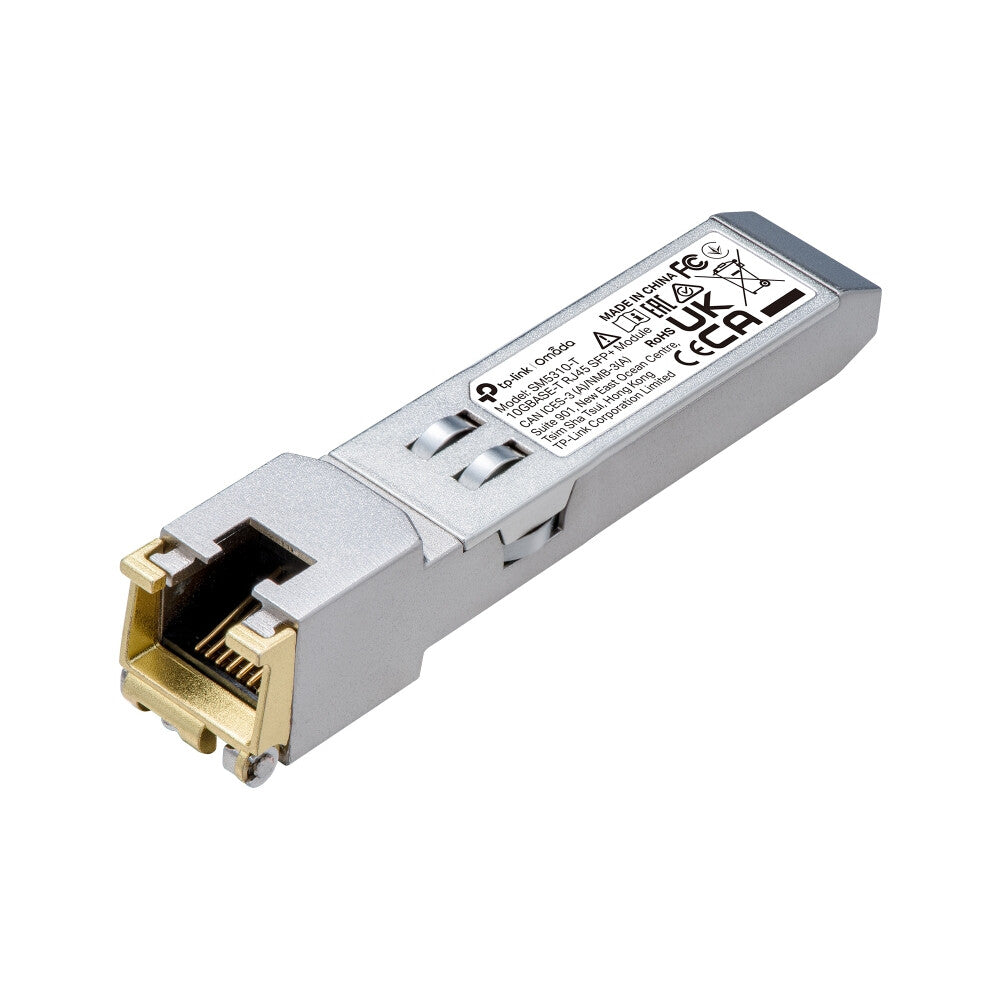

TP-Link Omada 10GBASE-T RJ45 SFP+ Module

TP-Link Omada 10GBASE-T RJ45 SFP+ Module

£56.72 GBP
£56.72 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SM5310-T

105 in stock

  • Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
  • Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
  • Support DDM (Temperature and Voltage)
  • Hot-Pluggable SFP+ Footprint Features
  • Support TX Disable function
  • Fully Metallic Enclosure for Low EMI
10GBASE-T RJ45 SFP+ Module

What This Product Does
TL-SM5310-T provides superior 10G performance for an easy and quick connection between your SFP+ interface and RJ45 port. It covers up to 30m* at 10 Gbps (UTP cat.6a or above). A plug-and-play design makes for easy deployment, no technician needed. High-quality metal casing ensures strength and reliability for a long time, maintaining a stable connection in a wide range of environments.

Performance
SFP transceiver type Copper
Maximum data transfer rate 10300 Mbit/s
Interface type RJ-45
Maximum transfer distance 100 m
Ethernet LAN Yes
Ethernet interface type 10 Gigabit Ethernet
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz
Copper ethernet cabling technology 10GBASE
Features
Product colour Silver
Housing material Metal
Form factor SFP+
Hot-Plug support Yes
Easy to install Yes
Power
Input voltage 3.3 V
general_information_attribute_container_name
attribute_product_family_name Omada
Operational conditions
Minimum operating temperature 0 °C
Maximum operating temperature 70 °C
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Weight & dimensions
Width 67.4 mm
Depth 13.8 mm
Height 13.8 mm
Packaging data
Package width 81.5 mm
Package depth 122.5 mm
Package height 38.5 mm
Package weight 2.87 kg
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance Yes
Logistics data
Quantity per pack 1 pc(s)
