TP-LINK

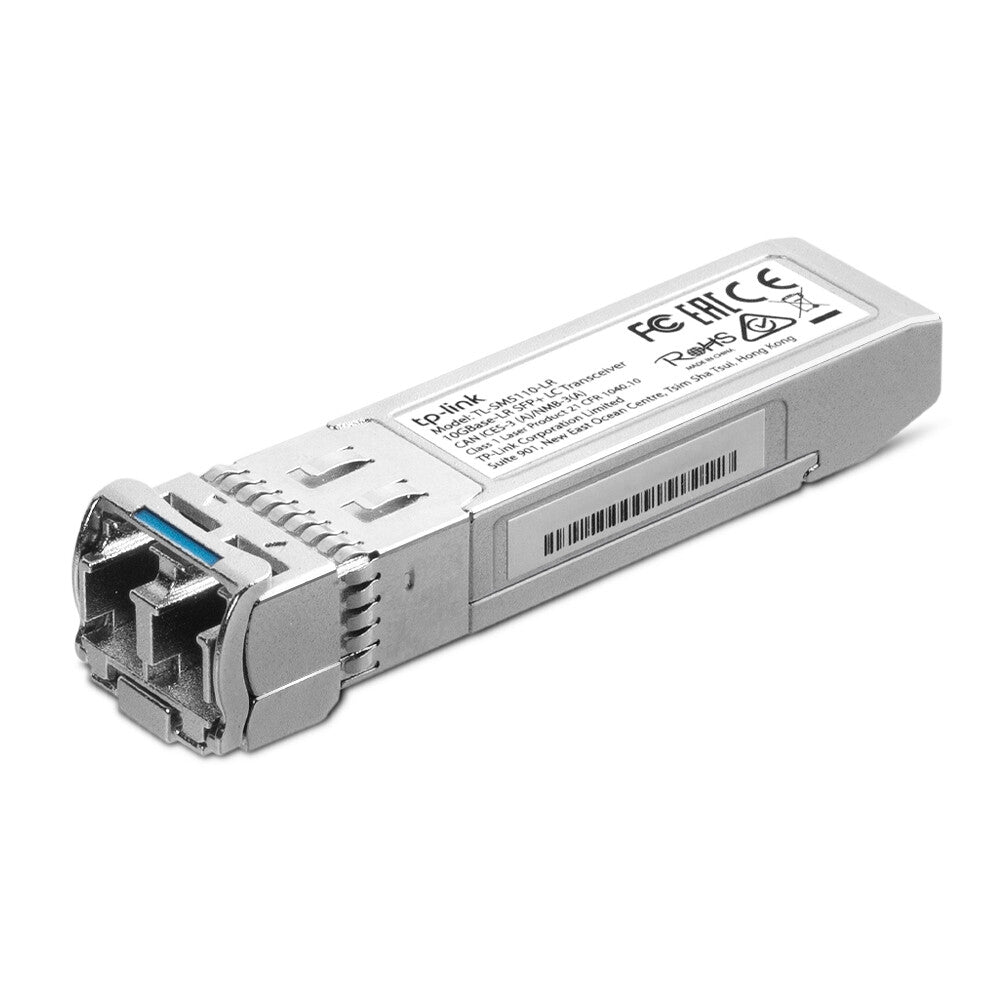

TP-Link Omada 10Gbase-LR SFP+ LC Transceiver

TP-Link Omada 10Gbase-LR SFP+ LC Transceiver

£38.57 GBP
£38.57 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SM5110-LR

130 in stock

  • Single-mode SFP+ LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

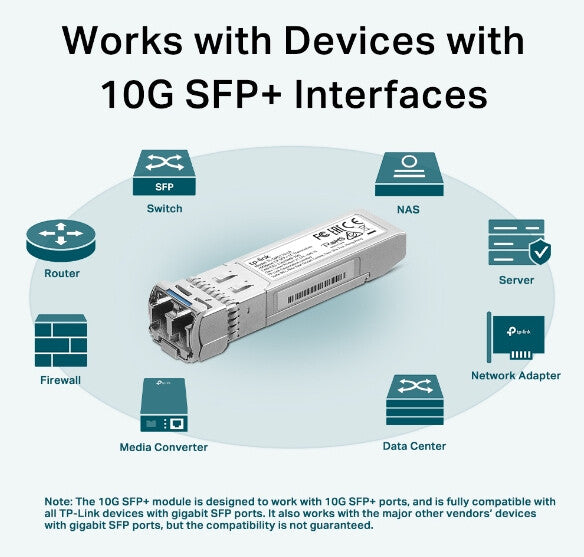

  • Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more
10Gbase-LR SFP+ LC Transceiver

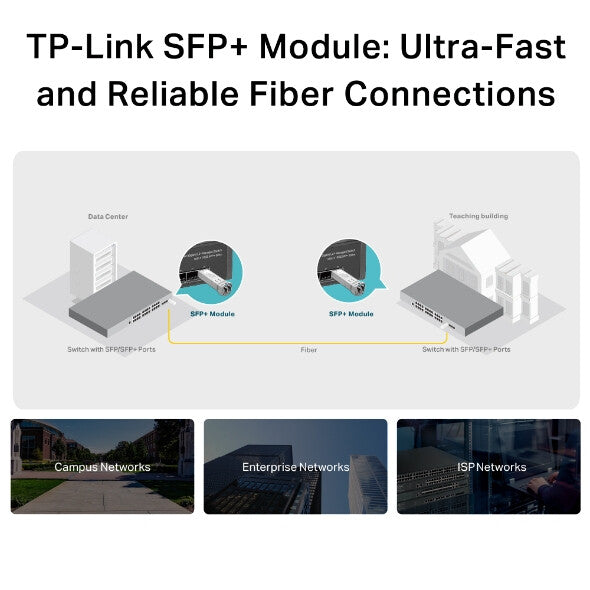

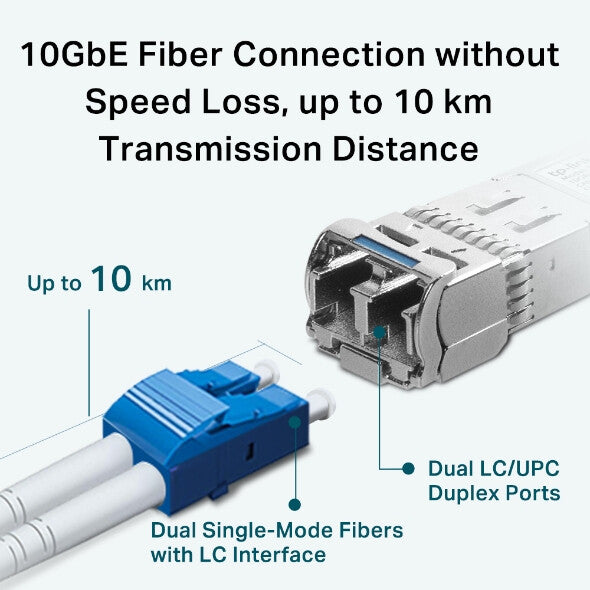

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Performance
SFP transceiver type Fiber optic
Maximum data transfer rate 10000 Mbit/s
Interface type SFP+
Single-mode fiber (SMF) supported Yes
Multi-mode fiber (MMF) supported No
Fiber optic connector LC
Fiber cable diameters supported (core/cladding) 9/125 µm
SFP transceiver standard LR
Maximum transfer distance 10000 m
Wavelength 1310 nm
Networking standards IEEE 802.3ae
Duplex system Full
Digital Diagnostics Monitoring (DDM) Yes
Features
Hot-Plug support Yes
Hot-swap Yes
Brand compatibility TP-Link
Compatible products Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Certification FCC, CE
Power
Input voltage 3.3 V
general_information_attribute_container_name
attribute_product_family_name Omada
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 56.7 mm
Depth 13.9 mm
Height 10.3 mm
Packaging data
Package width 81.5 mm
Package depth 122.5 mm
Package height 38.5 mm
Package weight 60 g
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85369010
