TP-LINK

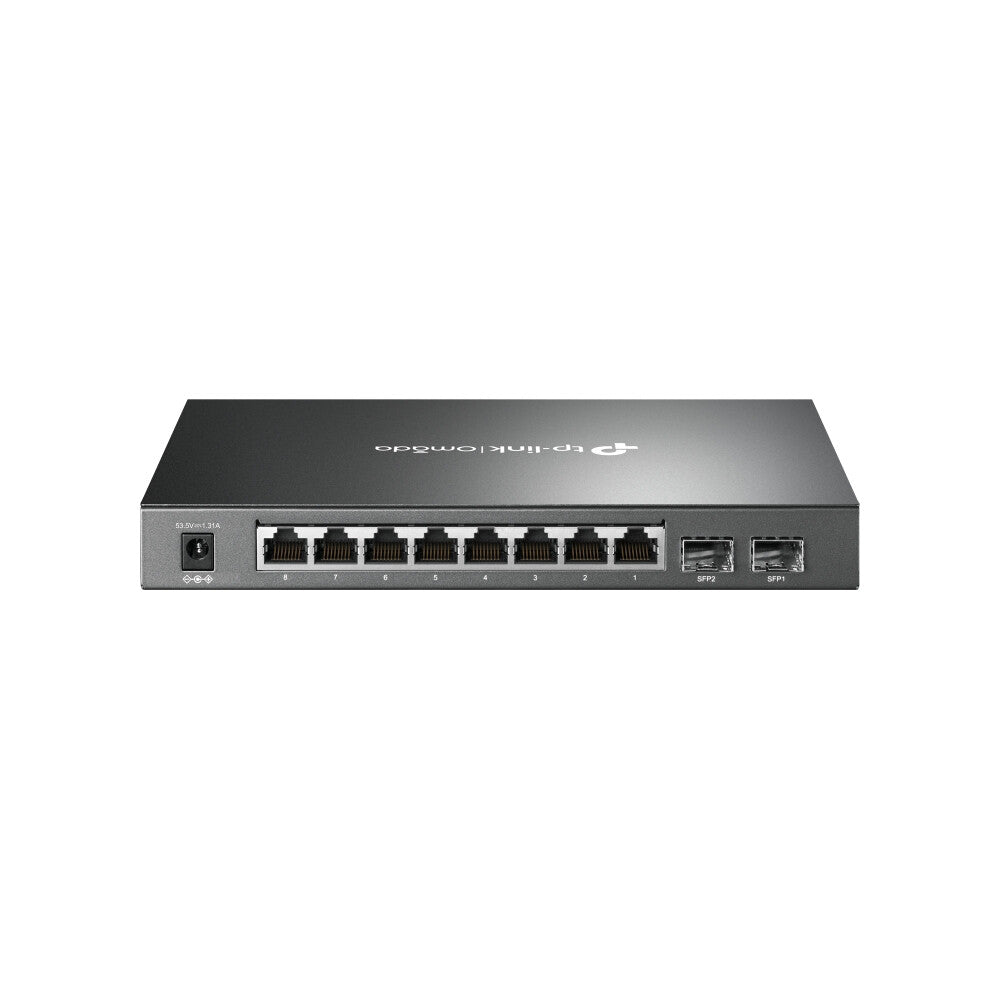

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+

Name: TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
Brand: TP-LINK
SKU: SG2210P
Price: 142.85 GBP
Availability: InStock

£142.85 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

SKU:SG2210P

85 in stock

8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
61 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

8× 10/100/1000Mbps PoE+ RJ45, 2× 100/1000 Mbps SFP, 20 Gbps, 8K MAC, 9 KB Jumbo, 209×126×26 mm

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Management features
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
ARP inspection	Yes
System event log	Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Power connector	DC-in jack

Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Port mirroring	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
Auto-negotiation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Flow control support	Yes
VLAN support	Yes

Data transmission
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB

Security
Access Control List (ACL)	Yes
IGMP snooping	Yes
IP-MAC-Port binding	Yes
Static port security	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication
SSH/SSL support	Yes

Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y

Protocols
IPv4 & IPv6 features	Dual stack IPv4/IPv6

Design
Product colour	Black
LED indicators	Yes
Certification	CE, FCC, RoHS

general_information_attribute_container_name
attribute_product_family_name	Omada

Performance
Firmware upgradeable	Yes

Power
Power source	DC/PoE
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	77.8 W

Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
