TP-LINK

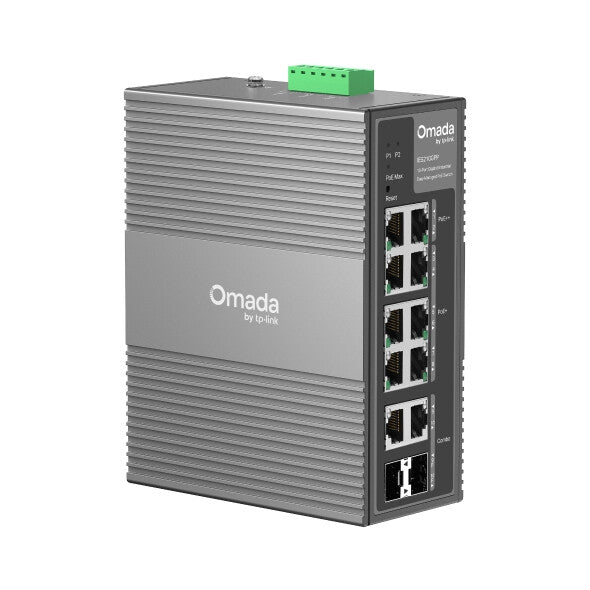

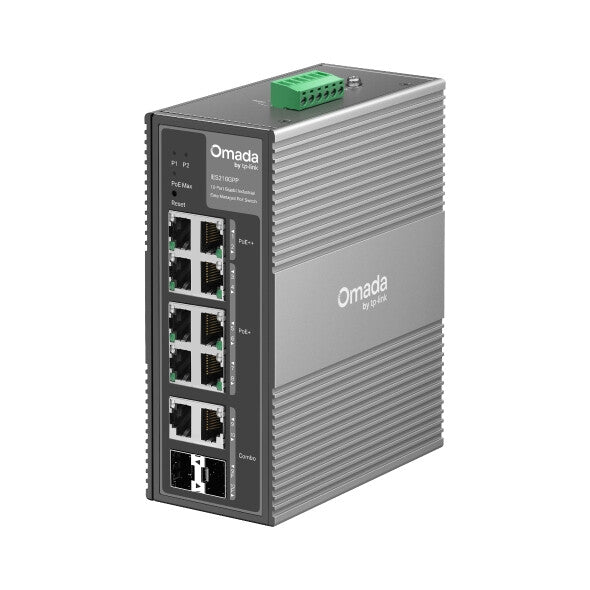

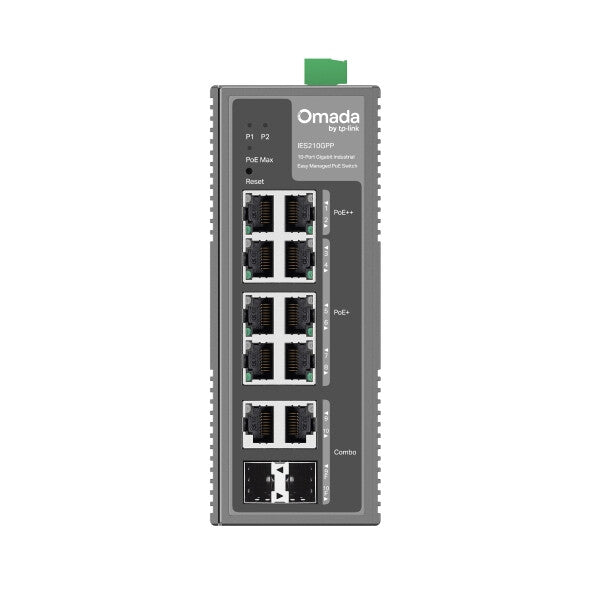

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

£179.60 GBP
£179.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

IES210GPP

12 in stock

  • 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design
2× PoE++, 6× PoE+, 2× RJ45/SFP, 12 Gbps, 8K MAC, 15 KB Jumbo, 155 x 120 x 60 mm

Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch

Industrial-Grade Protection Built for Harsh Environments

- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature
- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting

Management features
Switch type Managed
Quality of Service (QoS) support Yes
Cloud-managed Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 2
Network
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support No
Port mirroring Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Link aggregation Yes
Auto-negotiation Yes
Broadcast storm control Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Number of VLANs 4000
Data transmission
MAC address table 8000 entries
Switching capacity 20 Gbit/s
Forwarding rate 14.88 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 15000
Packet buffer memory 4000 MB
Security
DHCP features DHCP client
IGMP snooping Yes
Loop protection Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Form factor DIN rail
Product colour Grey
LED indicators Yes
general_information_attribute_container_name
attribute_product_family_name Omada
Power
Power source DC
DC input voltage 12 - 57 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 6
Power over Ethernet 4PPoE (PoE++) ports quantity 2
Total Power over Ethernet (PoE) budget 240 W
Weight & dimensions
Width 155 mm
Depth 120 mm
Height 60 mm
