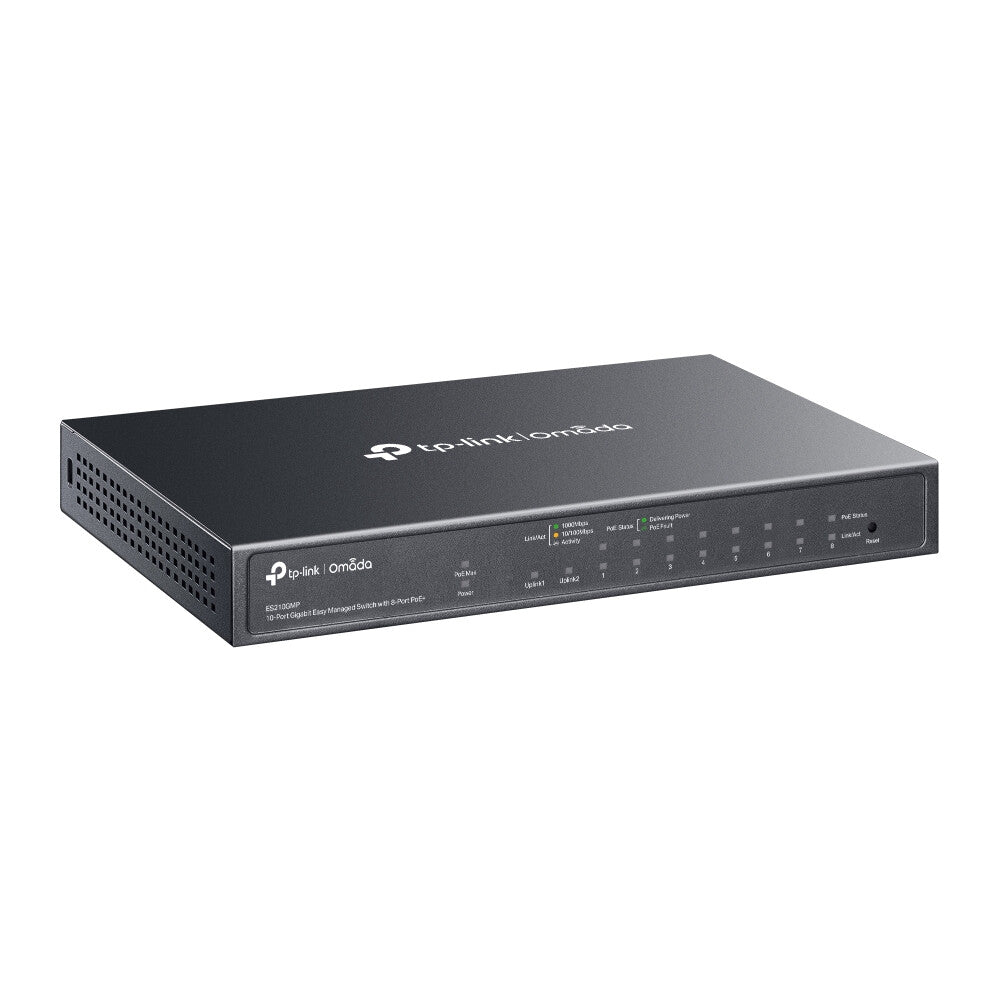

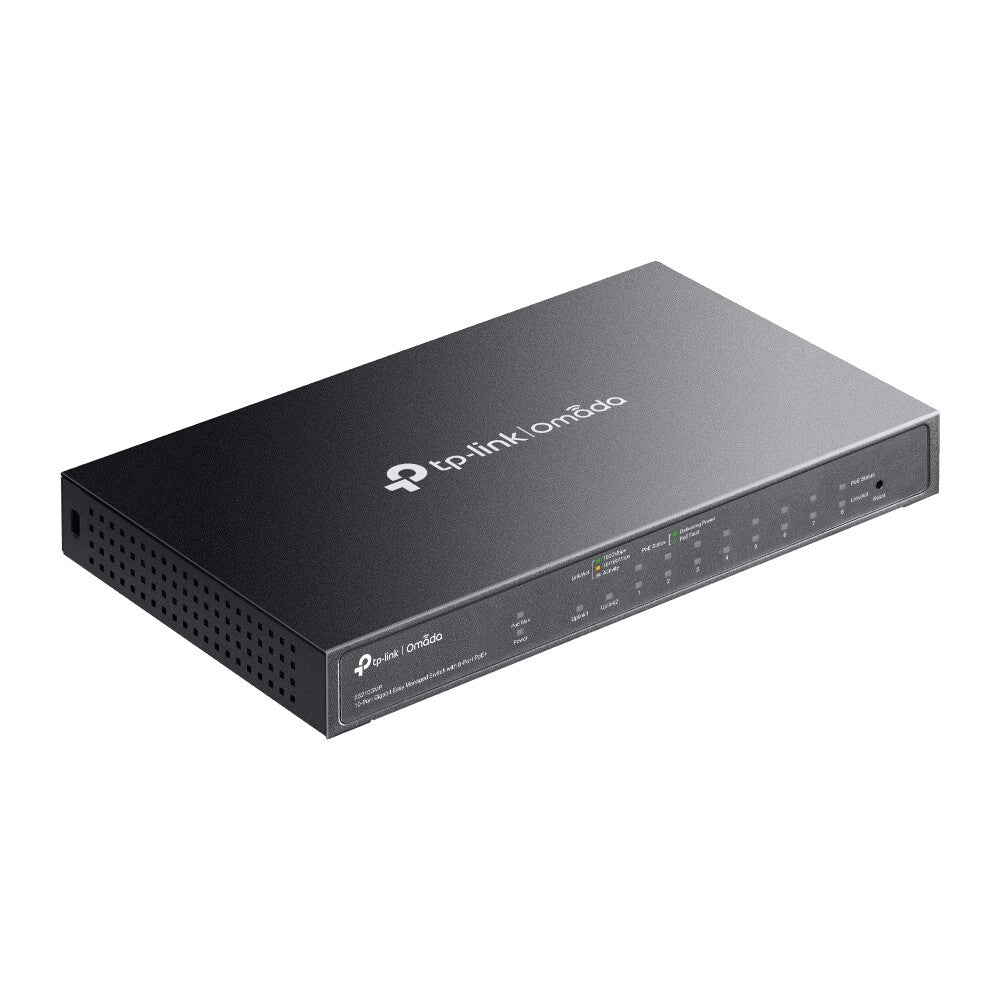

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

£103.24 GBP
£103.24 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ES210GMP

14 in stock

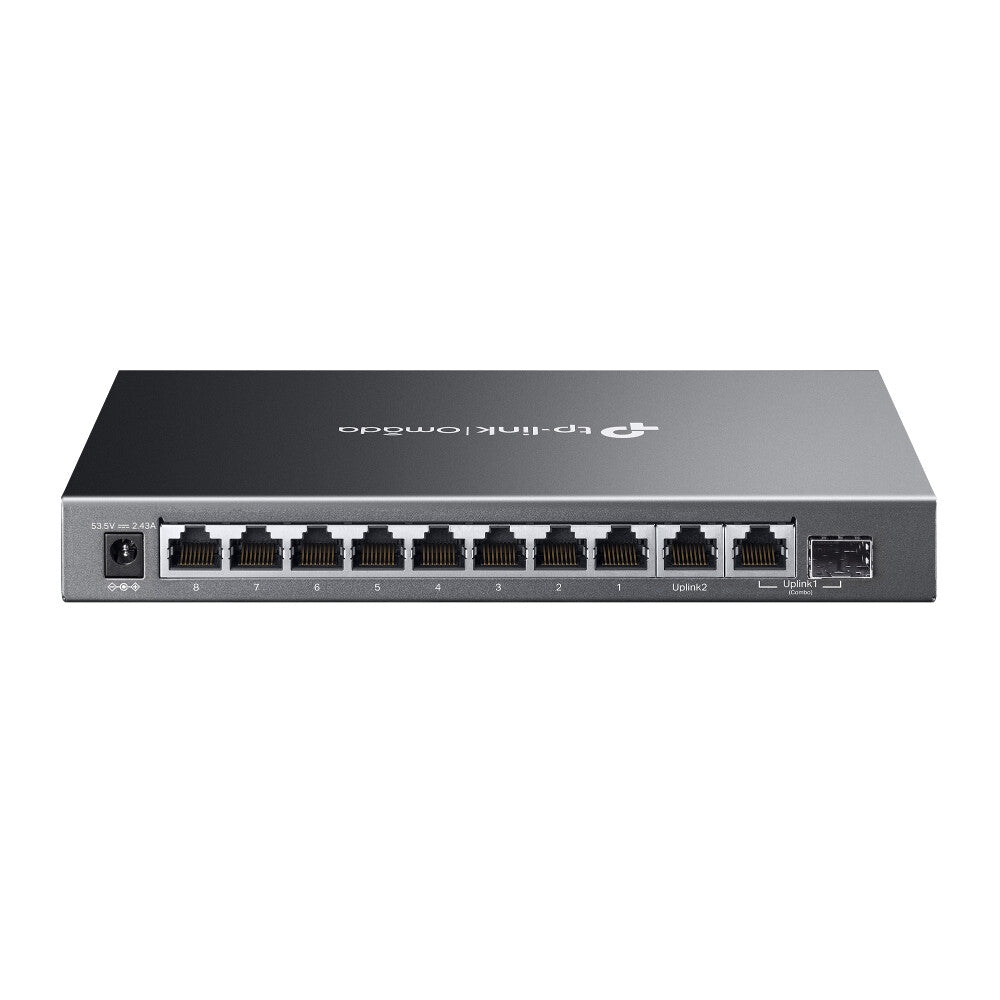

  • 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
  • 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
  • 123W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation

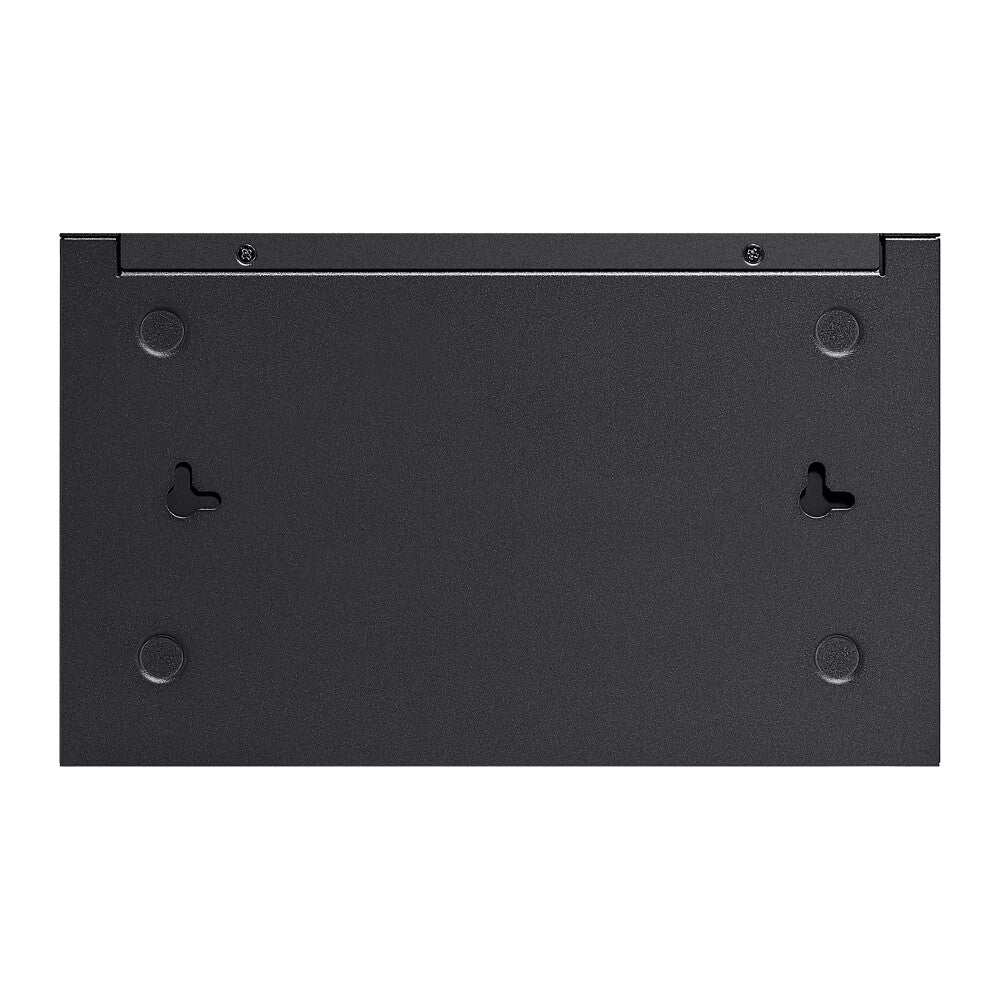

  • Durable metal casing and desktop/wall mounting design
8× 10/100/1000 Mbps PoE+ RJ45, 1× 10/100/1000 Mbps RJ45, 1× Gigabit SFP/RJ45 Combo, 20 Gbps, 8K MAC, 15 KB Jumbo, 209×126×26 mm

Omada 10-Port Gigabit Easy Managed
Switch with 8-Port PoE+

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Upgrade to Standard with a Seamless Subscription

Management features
Switch type Managed
Quality of Service (QoS) support Yes
Cloud-managed Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 10
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 1
Network
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support No
Port mirroring Yes
Link aggregation Yes
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
Transmission distance (max) 0.25 km
Data transmission
MAC address table 8000 entries
Switching capacity 20 Gbit/s
Forwarding rate 14.88 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 15
Packet buffer memory 4 MB
Security
DHCP features DHCP client
IGMP snooping Yes
Design
Product colour Black
Reset button Yes
Wall mountable Yes
general_information_attribute_container_name
attribute_product_family_name Omada
Performance
Fanless Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Power
Power source DC
Power supply included Yes
DC input voltage 53.5 V
Input current 2.43 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 123 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 209 mm
Depth 126 mm
Height 26 mm
Packaging data
Cables included AC
Package type Box
User guide Yes
