TP-LINK

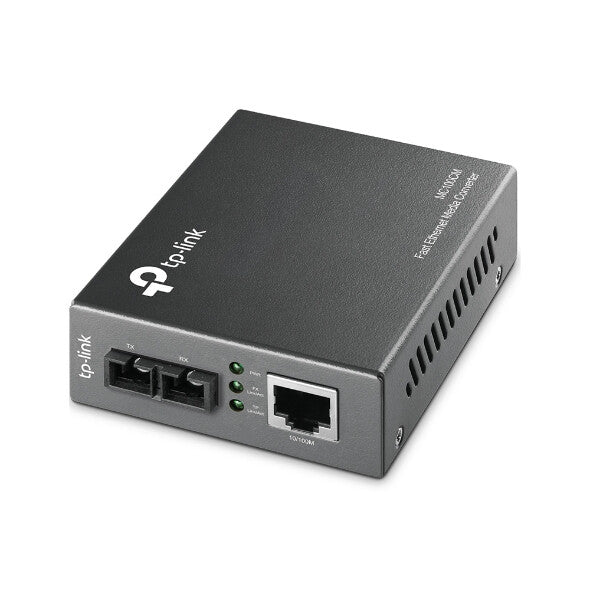

TP-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black
TP-Link MC100CM network media converter 100 Mbit/s 1310 nm Multi-mode Black
Regular price
£23.17 GBP
Regular price
Sale price
£23.17 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:MC100CM
63 in stock
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 1.2 miles (2km)
10/100Mbps, Multi-Mode, 1310nm, 2km
The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).
Network | |
---|---|
Cable types supported | Cat3, Cat4, Cat5, Cat5e |
Duplex system | Full, Half |
Auto MDI/MDI-X | Yes |
Ethernet LAN data rates | 10,100 Mbit/s |
Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Maximum data transfer rate | 100 Mbit/s |
Ports & interfaces | |
---|---|
Fiber optic connector | SC |
Fiber ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
Connectivity technology | Wired |
Performance | |
---|---|
Fiber mode structure | Multi-mode |
Wavelength | 1310 nm |
Maximum transfer distance | 2000 m |
Design | |
---|---|
LED indicators | Yes |
Product colour | Black |
Internal | No |
Power | |
---|---|
Power consumption (max) | 2.4 W |
Weight & dimensions | |
---|---|
Height | 27 mm |
Depth | 73 mm |
Width | 95 mm |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 - 90% |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Manual | Yes |
Technical details | |
---|---|
Compliance certificates | RoHS |
Logistics data | |
---|---|
Harmonized System (HS) code | 85176990 |
